| Item | Part No. | Part Name | Qty | Serial No. |

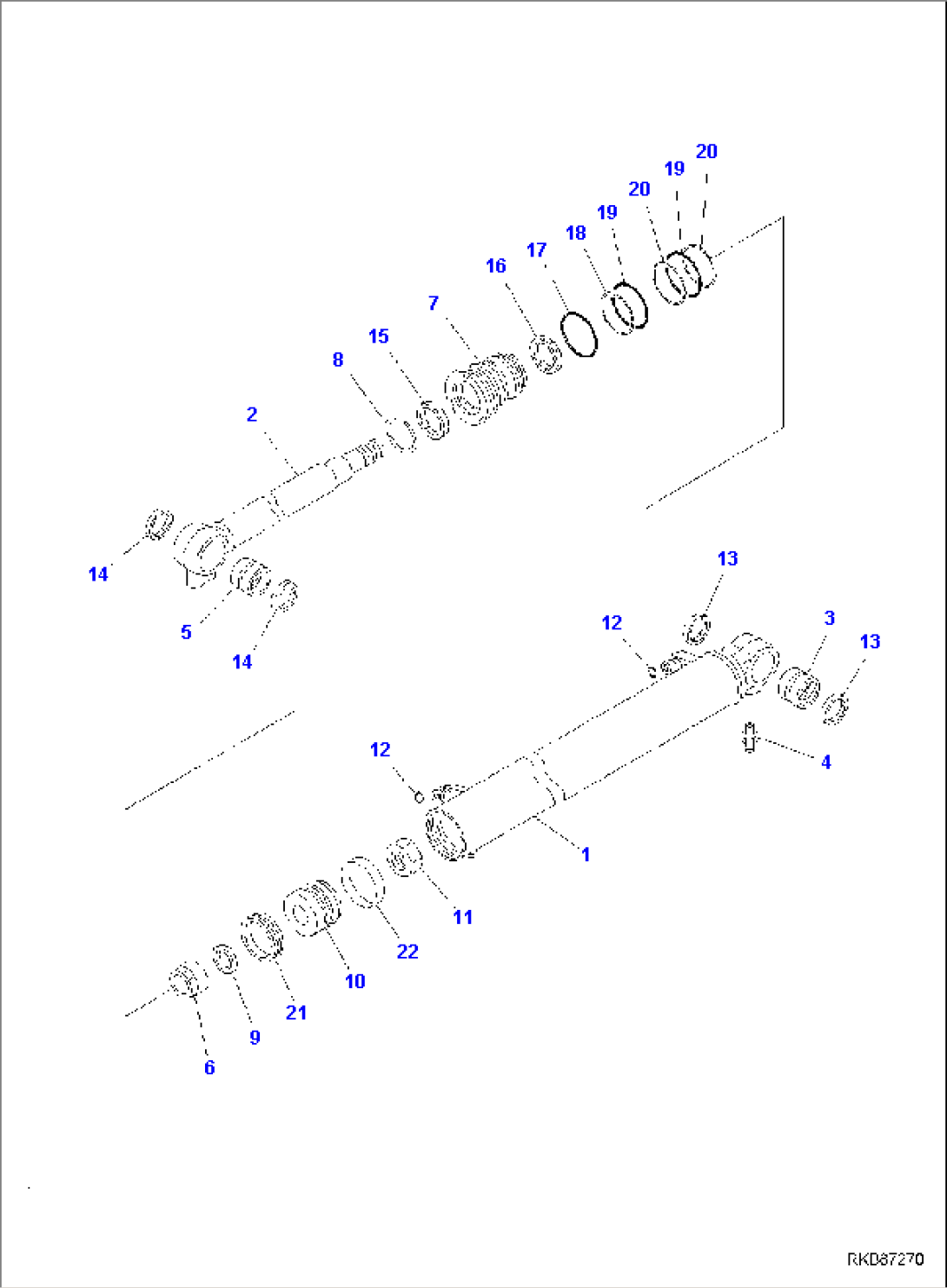

| \0.99 | 707-00-0T460 | BOOM CYLINDER, ASSEMBLY | F30844- | |
| 1 | 721-11-70980 | CYLINDER | F30844- | |
| 2 | 707-58-40E51 | ROD, CYLINDER | F30844- | |
| 3 | 07144-10304 | BUSHING | F30844- | |
| 4 | 07020-00000 | FITTING, GREASE | F30844- | |
| 5 | 07144-10304 | BUSHING | F30844- | |
| 6 | 707-71-70470 | PLUNGER | F30844- | |
| 7 | 707-29-70250 | HEAD, CYLINDER | F30844- | |
| 8 | 07179-12052 | RING, SNAP | F30844- | |
| 9 | 707-40-70750 | RETAINER | F30844- | |
| 10 | 707-36-70560 | PISTON | F30844- | |
| 11 | 707-67-27030 | NUT | F30844- | |
| \11.99 | 707-98-14580 | KIT, GASKET | F30844- | |
| 12 | 02896-11009 | O-RING | F30844- | |
| 13 | 22L-70-21550 | SEAL DUST | F30844- | |
| 14 | 07145-00035 | SEAL, DUST | F30844- | |
| 15 | 707-56-40740 | SEAL, DUST | F30844- | |
| 16 | 707-51-40210 | PACKING, ROD | F30844- | |
| 17 | 07000-12070 | O-RING | F30844- | |
| 18 | 707-35-52640 | RING, BACK-UP | F30844- | |
| 19 | 07000-12065 | O-RING | F30844- | |
| 20 | 07146-02066 | RING, BACK-UP | F30844- | |
| 21 | 707-44-70180 | RING, PISTON | F30844- | |
| 22 | 07156-00710 | RING, WEAR | F30844- |
