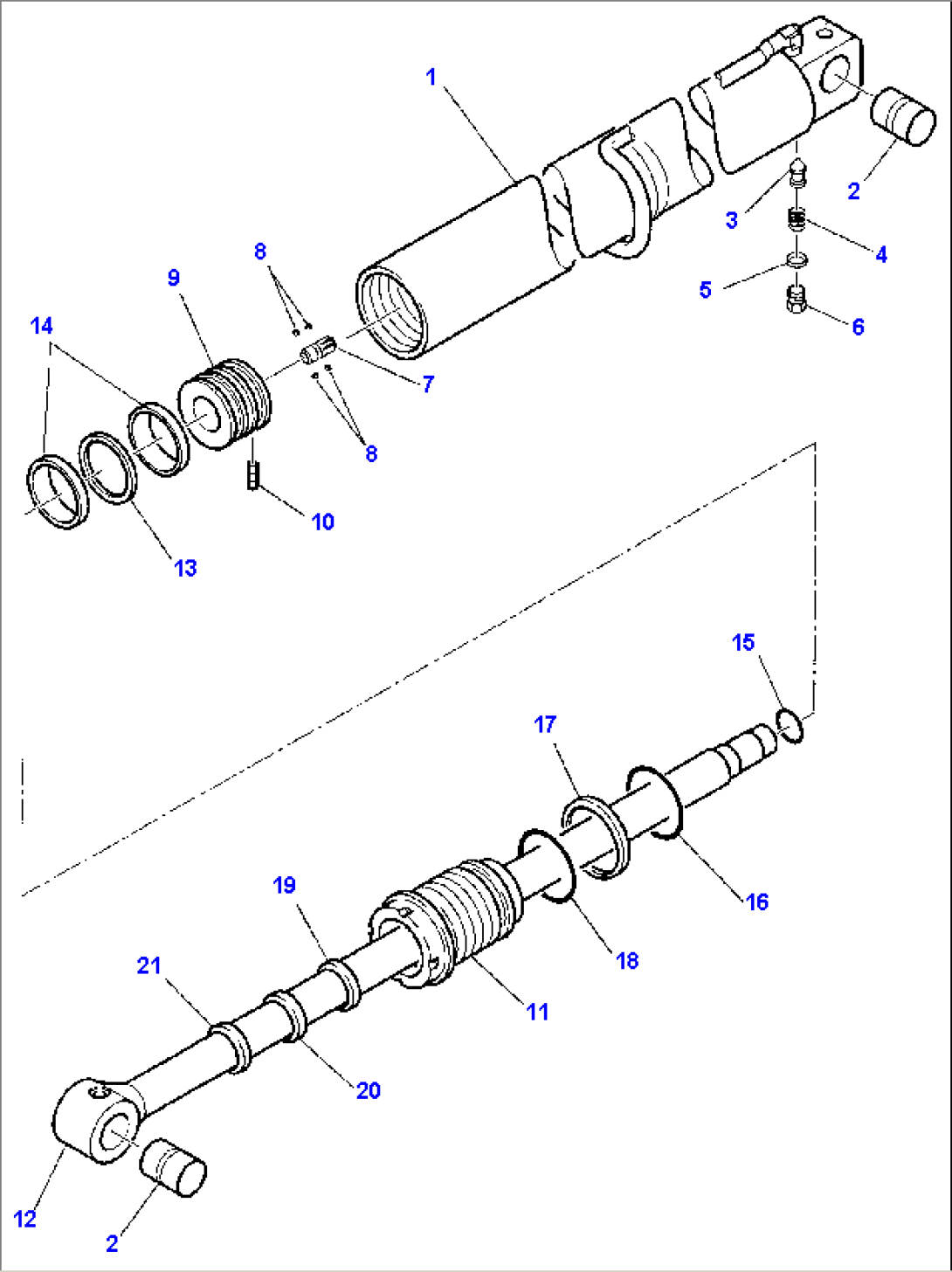

| Item | Part No. | Part Name | Qty | Serial No. |
| \0 | (395001008) | BOOM CYLINDER | 15050001- | |
| 1 | 395083012 | CYLINDER | 15050001- | |
| 2 | 390658014 | BUSHING | 15050001- | |
| 3 | 312305603 | PIPE STOPPER | 15050001- | |
| 4 | 804030055 | SPRING | 15050001- | |
| 5 | 855150037 | WASHER | 15050001- | |
| 6 | 390022007 | PLUG | 15050001- | |
| 7 | 391709001 | PIN | 15050001- | |
| 8 | 805750022 | BALL | 15050001- | |
| 9 | 395272015 | PISTON | 15050001- | |
| 10 | 801476086 | SCREW | 15050001- | |
| 11 | 395302016 | CYLINDER HEAD | 15050001- | |
| 12 | 395184015 | ROD | 15050001- | |
| \12 | 878000541 | GASKET KIT | 15050001- | |
| 13 | \6\ | GASKET | 15050001- | |
| 14 | \6\ | RING WEAR | 15050001- | |
| 15 | \6\ | O-RING | 15050001- | |
| 16 | \6\ | O-RING | 15050001- | |
| 17 | \6\ | RING | 15050001- | |
| 18 | \6\ | O-RING | 15050001- | |
| 19 | \6\ | SCRAPER RING | 15050001- | |
| 20 | \6\ | GASKET | 15050001- | |
| 21 | \6\ | SCRAPER RING | 15050001- |
