| Item | Part No. | Part Name | Qty | Serial No. |

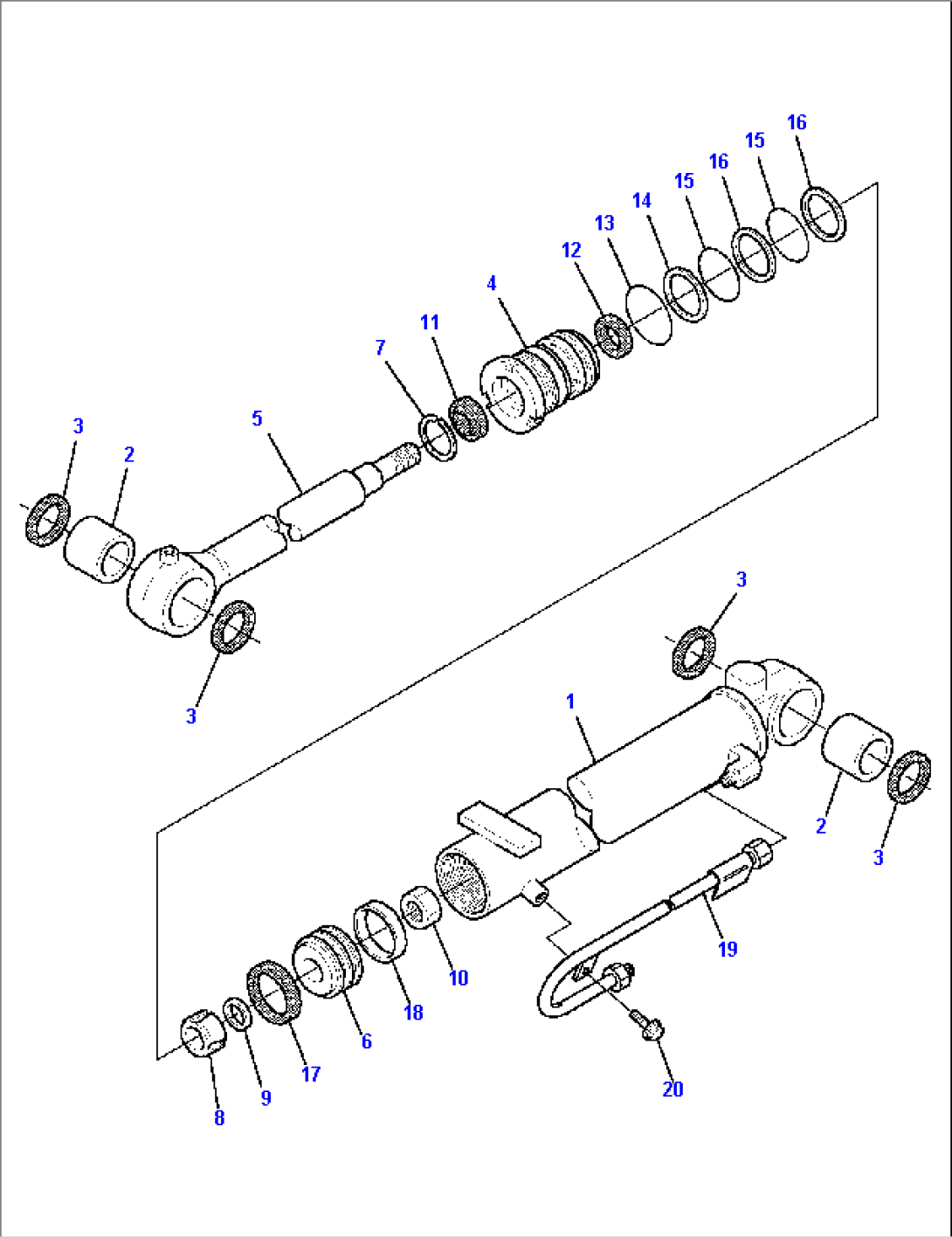

| \0 | 3F0587069 | BOOM CYLINDER, ASSY. | F31605- | |
| 1 | 3F0587066 | CYLINDER | F31605- | |
| 2 | 3F0582621 | BUSHING | F31605- | |
| 3 | 855661151 | GASKET | F31605- | |
| 4 | 3F0587612 | CYLINDER HEAD | F31605- | |
| 5 | 3F0587051 | PISTON ROD | F31605- | |
| 6 | 3F0587603 | PISTON | F31605- | |
| 7 | 855661161 | RING, SNAP | F31605- | |
| 8 | 3F0587614 | BUSHING | F31605- | |
| 9 | 3F0587602 | SPACER | F31605- | |
| 10 | 801920110 | NUT | F31605- | |
| \10 | 878000503 | KIT, GASKET | F31605- | |
| 11 | \6\ | GASKET | F31605- | |
| 12 | \6\ | GASKET | F31605- | |
| 13 | \6\ | O-RING | F31605- | |
| 14 | \6\ | RING, WEAR | F31605- | |
| 15 | \6\ | O-RING | F31605- | |
| 16 | \6\ | RING, WEAR | F31605- | |
| 17 | \6\ | GASKET | F31605- | |
| 18 | \6\ | PACKING ROD | F31605- | |
| 19 | 3F0587063 | PIPE | F31605- | |
| 20 | 801085025 | BOLT | F31605- |
