| Item | Part No. | Part Name | Qty | Serial No. |

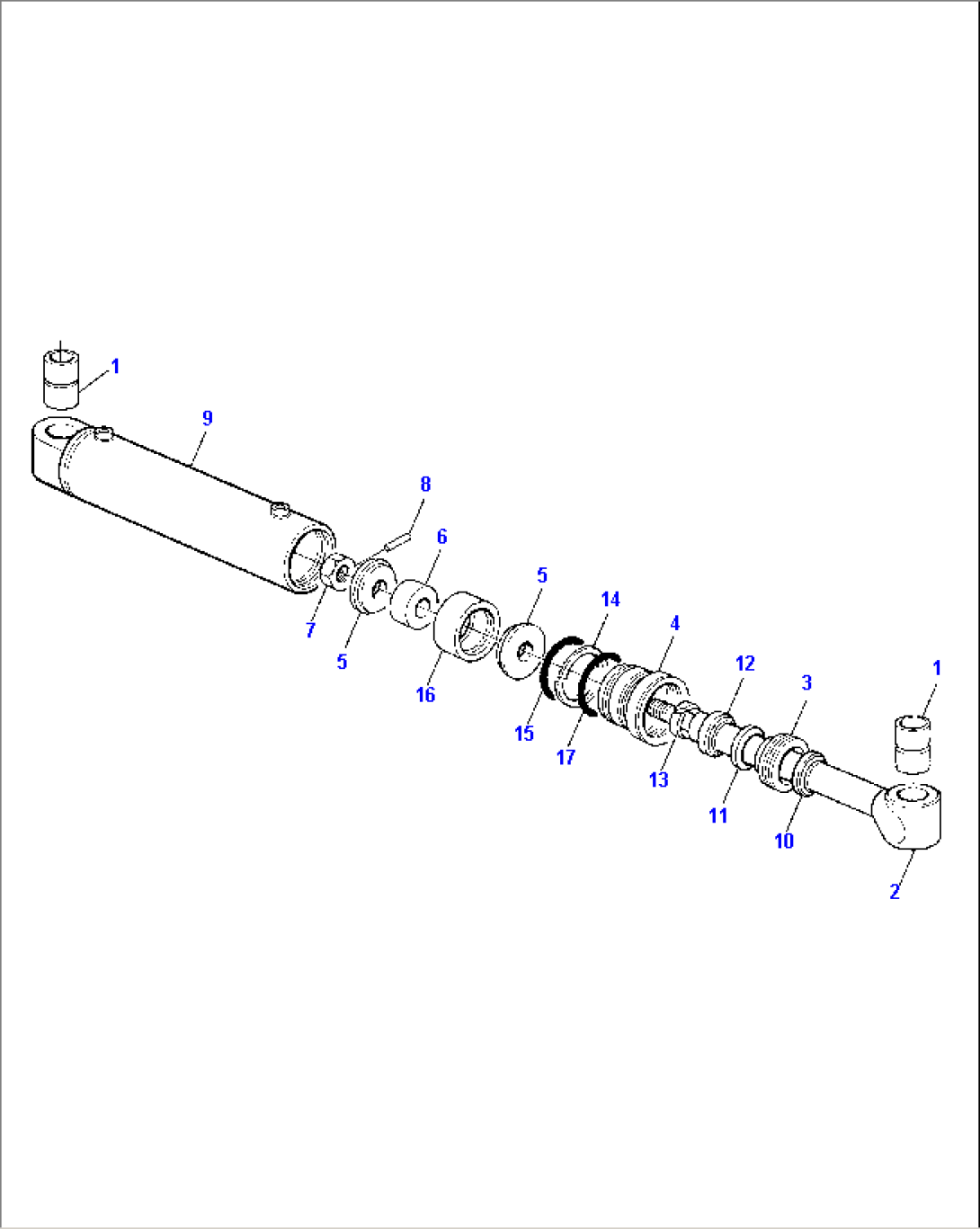

| \0 | 200063140 | SIDE DIGGING BOOM CYLINDER, ASSY. | WB98F20001- | |
| 1 | 500210016 | BUSHING | WB98F20001- | |
| 2 | 200087080 | PISTON ROD | WB98F20001- | |
| 3 | 500462106 | RING, NUT | WB98F20001- | |
| 4 | 500460307 | RING, NUT | WB98F20001- | |
| 5 | 500464019 | FLANGE | WB98F20001- | |
| 6 | 500464415 | SPACER | WB98F20001- | |
| 7 | 500468007 | NUT | WB98F20001- | |
| 8 | 802510226 | SPRING PIN | WB98F20001- | |
| 9 | 200075620 | CYLINDER | WB98F20001- | |
| \9 | 855660112 | KIT, GASKET | WB98F20001- | |
| 10 | \6\ | GASKET | WB98F20001- | |
| 11 | \6\ | BUSHING | WB98F20001- | |
| 12 | \6\ | GASKET | WB98F20001- | |
| 13 | \6\ | PACKING ROD | WB98F20001- | |
| 14 | \6\ | RING, WEAR | WB98F20001- | |
| 15 | \6\ | O-RING | WB98F20001- | |
| 16 | \6\ | GASKET | WB98F20001- | |
| 17 | \6\ | O-RING | WB98F20001- |
