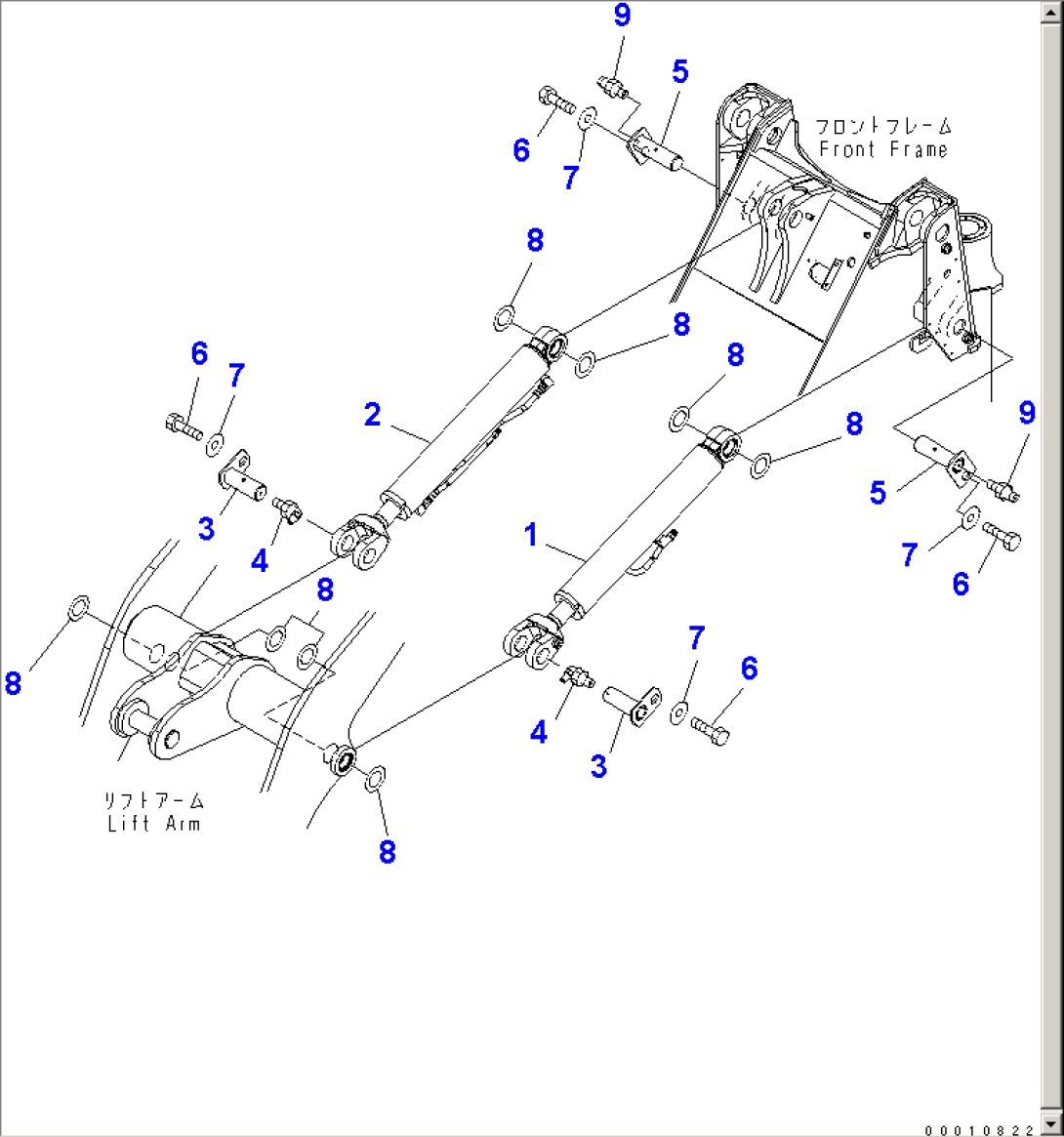

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | CYLINDER ASS'Y,(SEE FIG. T4140-02A0) | A89001- | ||
| 2 | CYLINDER ASS'Y,(SEE FIG. T4140-02A0) | A89001- | ||
| 3 | 417-63-32220 | PIN | A89001- | |
| 4 | 07020-00900 | FITTING,GREASE | A89001- | |
| 5 | 417-63-32230 | PIN | A89001- | |
| 6 | 01010-81625 | BOLT | A89001- | |
| 7 | 421-70-11280 | WASHER | A89001- | |
| 8 | 417-70-11340 | SHIM, 1.5MM | A89001- | |
| 9 | 07020-00000 | FITTING,GREASE | A89001- |
