| Item | Part No. | Part Name | Qty | Serial No. |
| 01 | 460 344 40 | Boom cylinder assy. | ||
| 01 | 541 244 40 | Boom cylinder assy. | ||
| 02 | Hydr. cylinder | |||
| 03 | 460 349 40 | Connector plate | ||
| 04 | 460 348 40 | Connector plate | ||
| 05 | 367 135 99 | O-ring | ||
| 06 | 006 728 98 | O-ring | ||
| 07 | 319 288 99 | Bolt |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- H135s s/n 61033
- * = variations from page:
- Boom cylinder with adapter, r.h. and l.h.
Поиск по каталогу

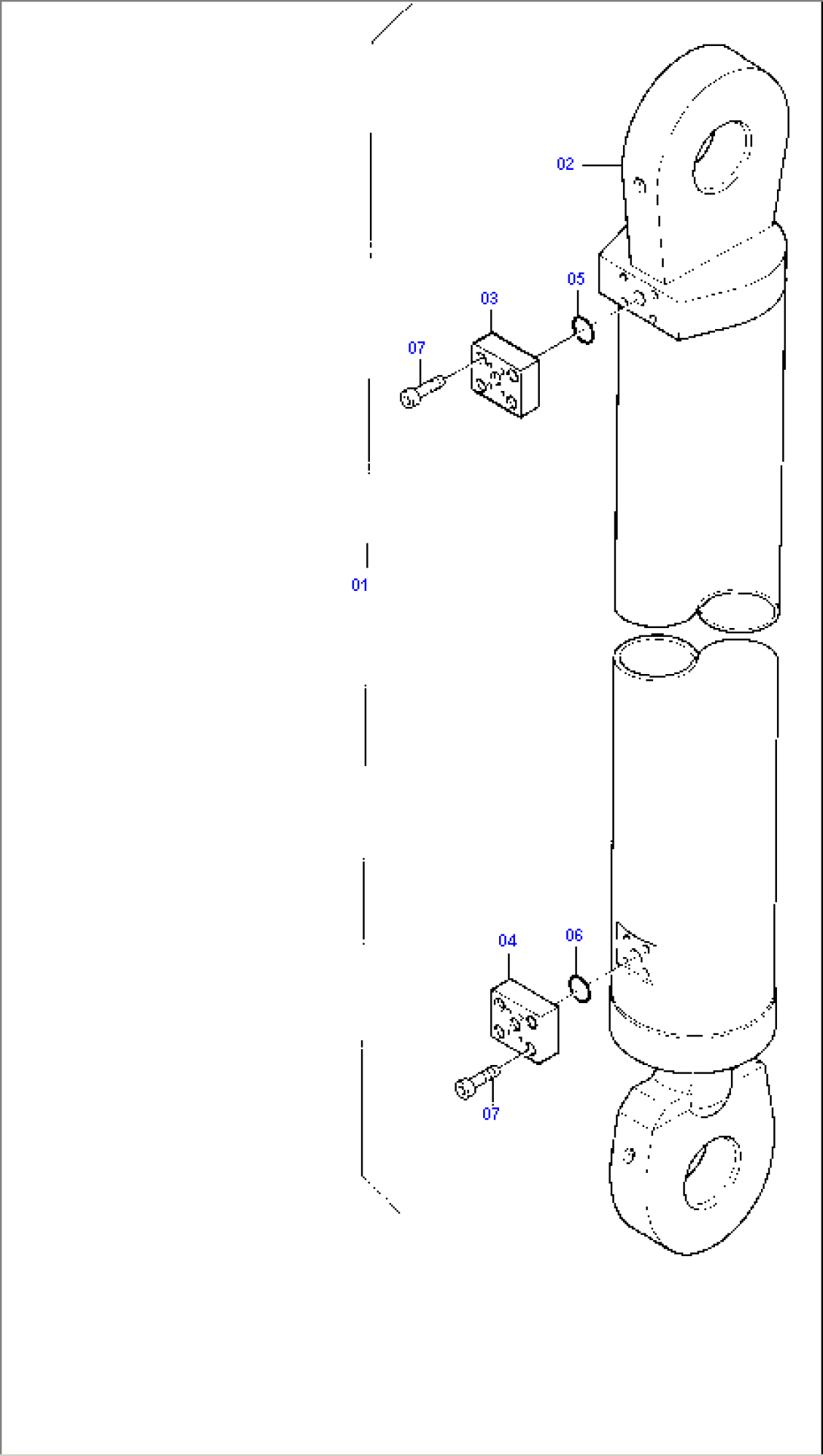

Boom Cylinder with Adapter, R.H. and L.H.
