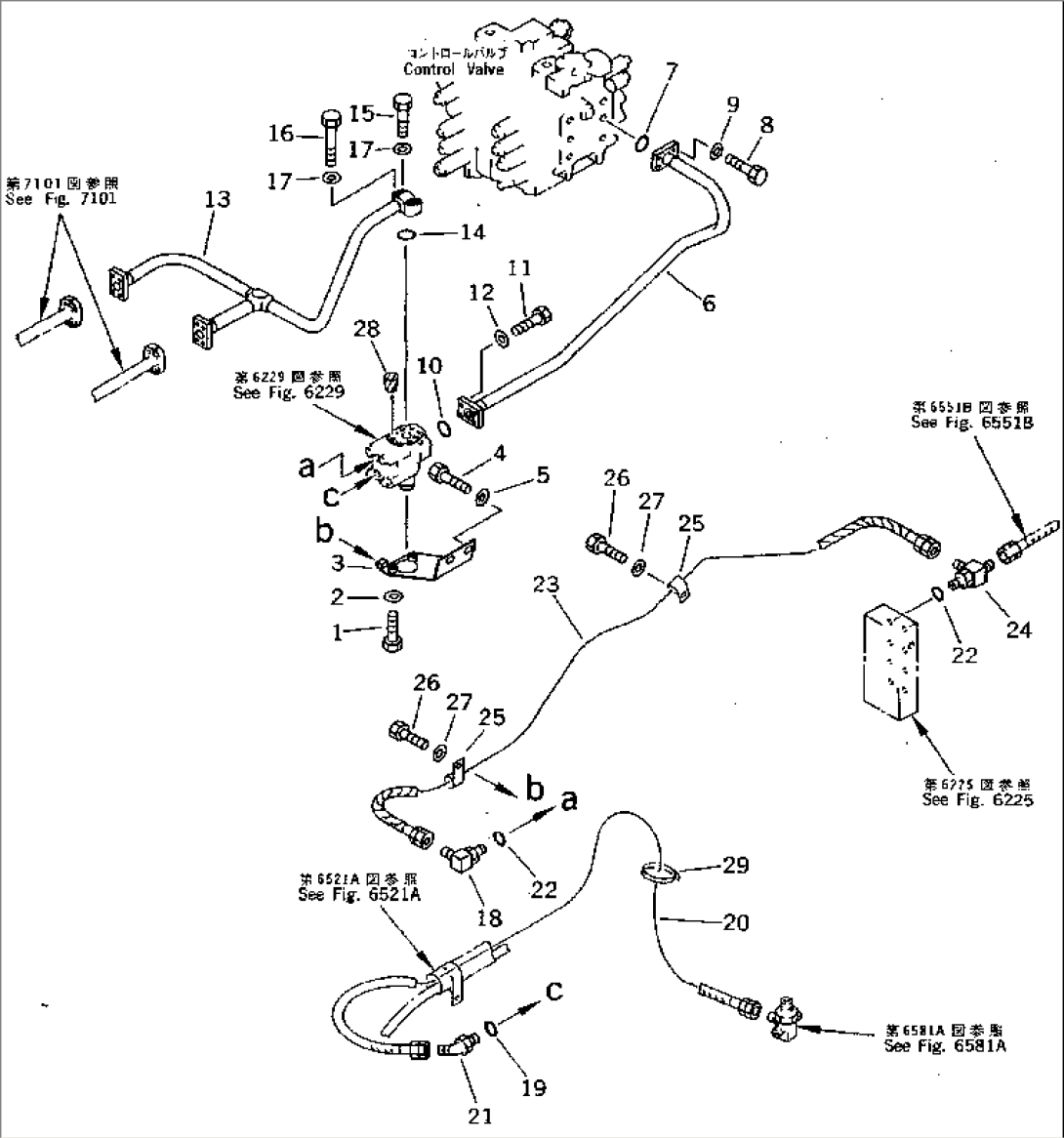

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-51040 | BOLT | 45001- | |
| 2 | 01643-31032 | WASHER | 45001- | |
| 3 | 20Y-62-15411 | BRACKET | 45001- | |
| 4 | 01010-51230 | BOLT | 45001- | |
| 5 | 01643-31232 | WASHER | 45001- | |
| 6 | 20Y-62-15493 | TUBE | 45001- | |
| 7 | 21T-09-11450 | O-RING | 45001- | |
| 8 | 07372-21035 | BOLT | 45001- | |
| 9 | 01643-51032 | WASHER | 45001- | |
| 10 | 07000-13032 | O-RING | 45001- | |
| 11 | 07372-21035 | BOLT | 45001- | |
| 12 | 01643-51032 | WASHER | 45001- | |
| 13 | 20Y-62-15282 | TUBE | 45554- | |
| 14 | 07000-13030 | O-RING | 45001- | |
| 15 | 07372-21045 | BOLT | 45001- | |
| 16 | 07372-21060 | BOLT | 45001- | |
| 17 | 01643-51032 | WASHER | 45001- | |
| 18 | 207-62-33920 | ELBOW | 45001- | |
| 19 | 07002-02034 | O-RING | 45001- | |
| 20 | 07102-20316 | HOSE | 57469- | |
| 21 | 07236-10315 | ELBOW | 58490- | |
| \0\07235-10315 | ELBOW | 57469-58489 | ||
| 22 | 07002-01423 | O-RING | 45001- | |
| 23 | 20Y-62-17672 | HOSE | 57469- | |
| 24 | 20Y-62-16590 | TEE | 66086- | |
| 21T-62-29960 | TEE | 45001-66085 | ||
| 25 | 08036-01414 | CLIP | 57469- | |
| 26 | 01010-51225 | BOLT | 45007- | |
| 27 | 01643-31232 | WASHER | 45001- | |
| 28 | 07049-01012 | PLUG | 45001- | |
| 29 | 08034-00536 | BAND | 57469- |
