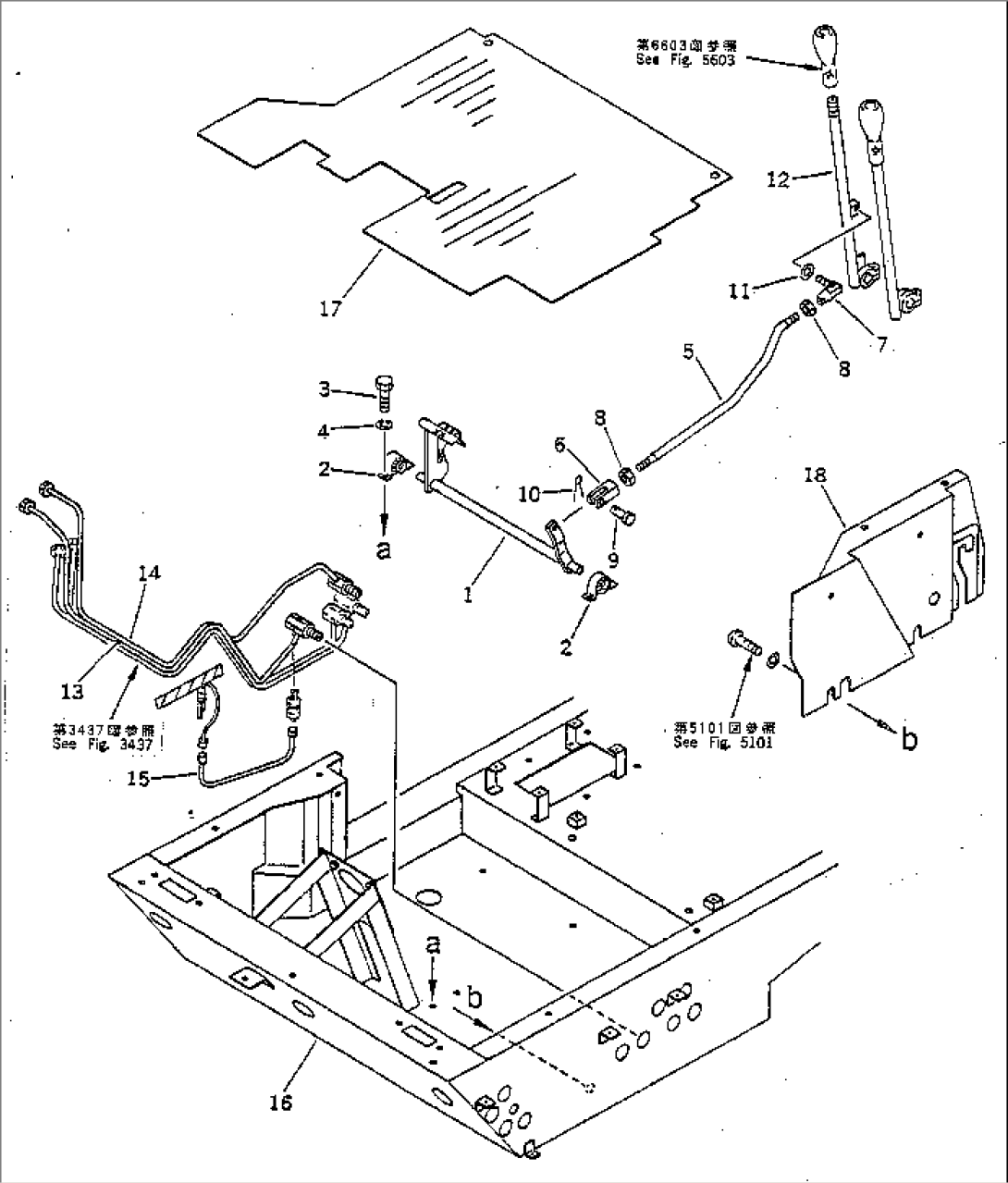

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23S-43-12260 | PEDAL | 5001- | |
| 2 | 06125-01544 | BEARING | 5001- | |
| 3 | 01010-50820 | BOLT | 5001- | |
| 4 | 01602-20825 | WASHER | 5001- | |
| 5 | 23S-43-12251 | ROD | 5001- | |
| 6 | 04211-21055 | YOKE | 5001- | |
| 7 | 04256-41020 | JOINT | 5001- | |
| 8 | 01582-11008 | NUT | 5001- | |
| 9 | 04205-11028 | PIN | 5001- | |
| 10 | 04050-13020 | PIN | 5001- | |
| 11 | 01643-31032 | WASHER | 5001- | |
| 12 | 23S-43-12241 | LEVER | 5001- | |
| 13 | 23S-44-17510 | TUBE | 5001- | |
| 14 | 23S-44-17530 | TUBE | 5001- | |
| 15 | 23S-06-11280 | WIRE | 5001- | |
| 16 | 23S-46-13611 | FRAME | 5001- | |
| 17 | 23S-46-13621 | MAT | 5001- | |
| 18 | 23S-54-16680 | COVER | 5001- |
