| Item | Part No. | Part Name | Qty | Serial No. |

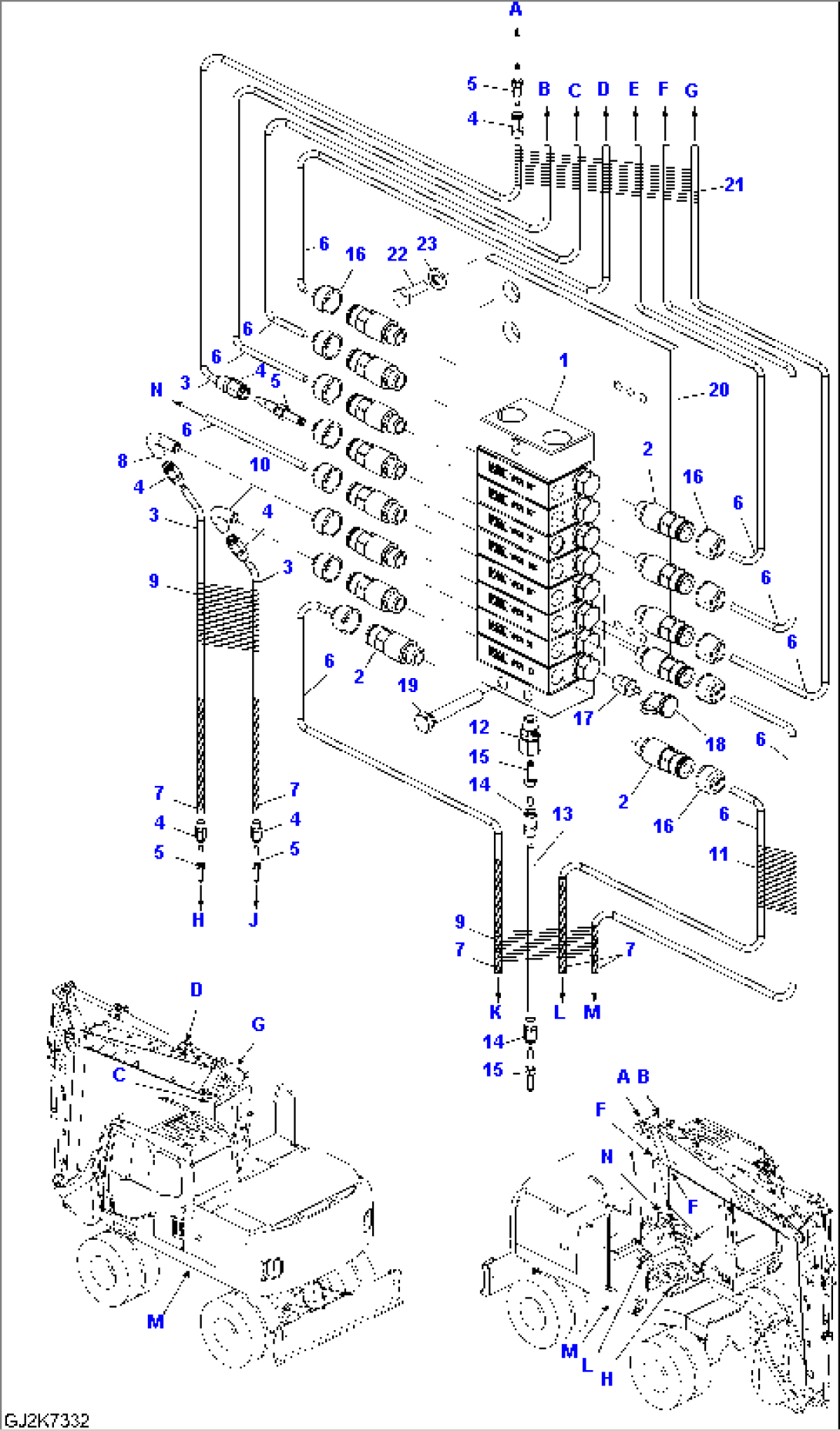

| (\8\20E-S95-H151) | FEEDER (TWO-PIECE BOOM) | H50051- | ||
| 1 | 42W-09-H3130 | FEEDER | H50051- | |
| 2 | 42W-09-H4650 | VALVE | H50051- | |
| 3 | 42W-09-H0P00 | HOSE, 5M | H50051- | |
| 42W-09-H0P01 | HOSE, 10M | H50051- | ||
| 42W-09-H0P02 | HOSE, 25M | H50051- | ||
| 4 | 423-00-H1920 | BUSHING | H50051- | |
| 5 | 42T-09-H3810 | TUBE | H50051- | |
| 6 | 419-09-H2850 | PLASTIC TUBE | H50051- | |
| 7 | 419-09-H3150 | COVER | H50051- | |
| 3 | 42W-09-H0P00 | HOSE, 5M | H50051- | |
| 42W-09-H0P01 | HOSE, 10M | H50051- | ||
| 42W-09-H0P02 | HOSE, 25M | H50051- | ||
| 4 | 423-00-H1920 | BUSHING | H50051- | |
| 5 | 42T-09-H3810 | TUBE | H50051- | |
| 8 | 419-S95-HP07 | TUBE | H50051- | |
| 9 | 419-09-H3020 | COVER | H50051- | |
| 3 | 42W-09-H0P00 | HOSE, 5M | H50051- | |
| 42W-09-H0P01 | HOSE, 10M | H50051- | ||
| 42W-09-H0P02 | HOSE, 25M | H50051- | ||
| 4 | 423-00-H1920 | BUSHING | H50051- | |
| 5 | 42T-09-H3810 | TUBE | H50051- | |
| 10 | 423-00-H0P12 | TUBE | H50051- | |
| 7 | 419-09-H3150 | COVER | H50051- | |
| 11 | 418-09-H0260 | COVER | H50051- | |
| 12 | 42W-09-H2880 | UNION | H50051- | |
| 13 | 42W-09-H0P03 | HOSE, 5M | H50051- | |
| 42W-09-H0P04 | HOSE, 10M | H50051- | ||
| 42W-09-H0P05 | HOSE, 25M | H50051- | ||
| 14 | 419-S95-HP14 | BUSHING | H50051- | |
| 15 | 419-S95-HP13 | TUBE | H50051- | |
| 16 | 42W-09-H2940 | CAP | H50051- | |
| 17 | 421-09-H3870 | NIPPLE | H50051- | |
| 18 | 42W-09-H3350 | CAP | H50051- | |
| 19 | 01010-80640 | BOLT | H50051- | |
| 20 | 42W-09-H3860 | MOUNTING PLATE | H50051- | |
| 21 | 418-09-H0750 | COVER | H50051- | |
| 22 | 01010-81030 | BOLT | H50051- | |
| 23 | 01643-31032 | WASHER | H50051- |
