| Item | Part No. | Part Name | Qty | Serial No. |

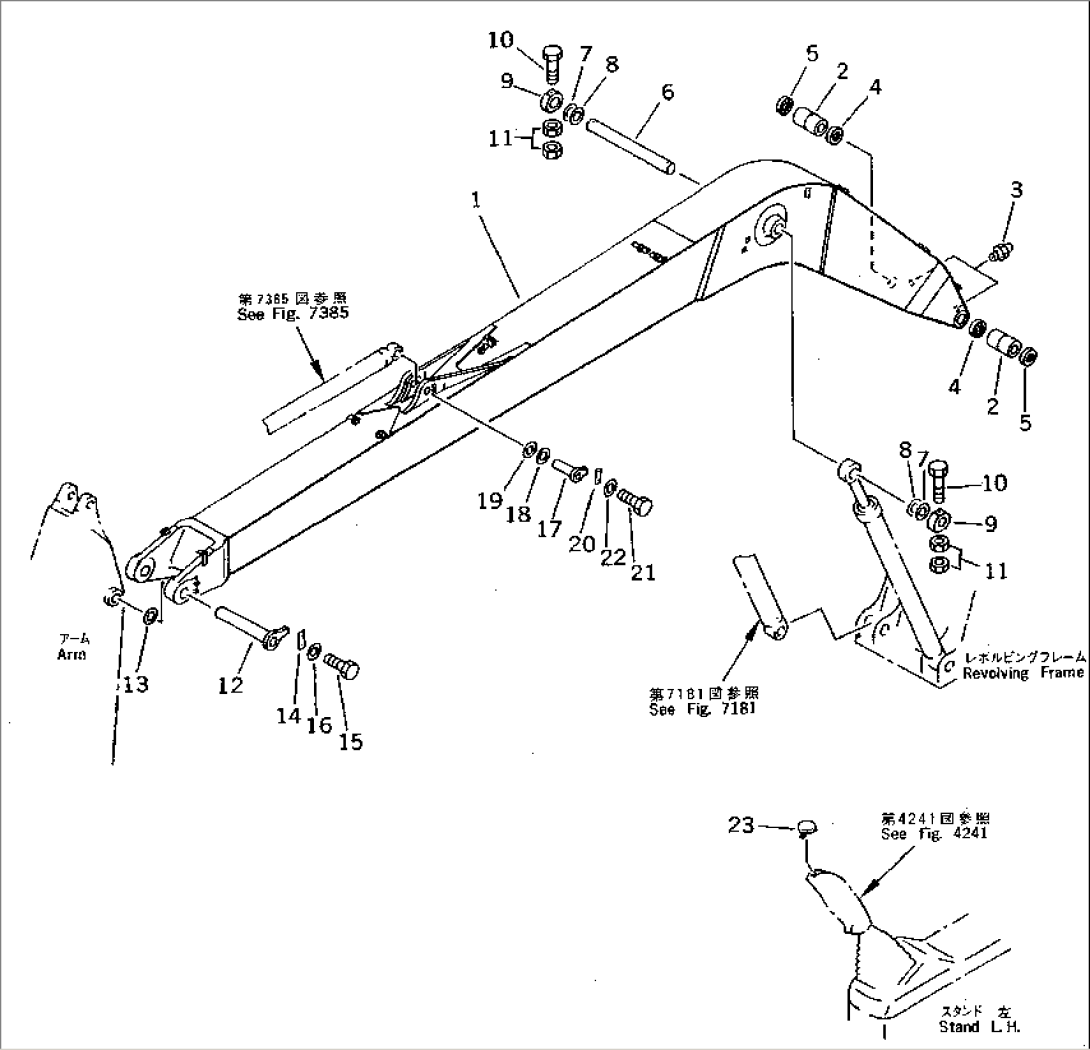

| 206-949-0100 | BOOM ASS'Y | 35001- | ||
| 1 | \6\ | BOOM | 35001- | |
| 2 | 206-70-55240 | BUSHING | 35001- | |
| 3 | 07020-00675 | FITTING,GREASE | 35001- | |
| 4 | 07145-00100 | SEAL,DUST | 35001- | |
| 5 | 07145-00100 | SEAL,DUST | 35001- | |
| 6 | 206-70-51190 | PIN | 35001- | |
| 7 | 20Y-70-11390 | SPACER, 0.8MM | 35001- | |
| 8 | 20Y-70-11370 | SPACER, 1.5MM | 37659- | |
| 8 | 20Y-70-11370 | SPACER, 1.5MM | 35001-37658 | |
| 9 | 20Y-70-11170 | PLATE | 35001- | |
| 10 | 20Y-70-11380 | BOLT | 35001- | |
| 11 | 01580-12016 | NUT | 35001- | |
| 12 | 205-70-65680 | PIN | 35001- | |
| 13 | 20Y-70-11360 | SPACER, 0.8MM | 35001- | |
| 14 | 205-70-71310 | PLATE | 35001- | |
| 15 | 01010-51235 | BOLT | 35001- | |
| 16 | 01643-31232 | WASHER | 35001- | |
| 17 | 20Y-70-11180 | PIN | 35001- | |
| 18 | 20Y-70-11340 | SPACER, 0.8MM | 35001- | |
| 19 | 205-70-51530 | SPACER, 1.5MM | 35001- | |
| 20 | 205-70-66580 | PLATE | 35001- | |
| 21 | 01010-51235 | BOLT | 35001- | |
| 22 | 01643-31232 | WASHER | 35001- | |
| 23 | 203-43-56680 | COVER | 35001- |
