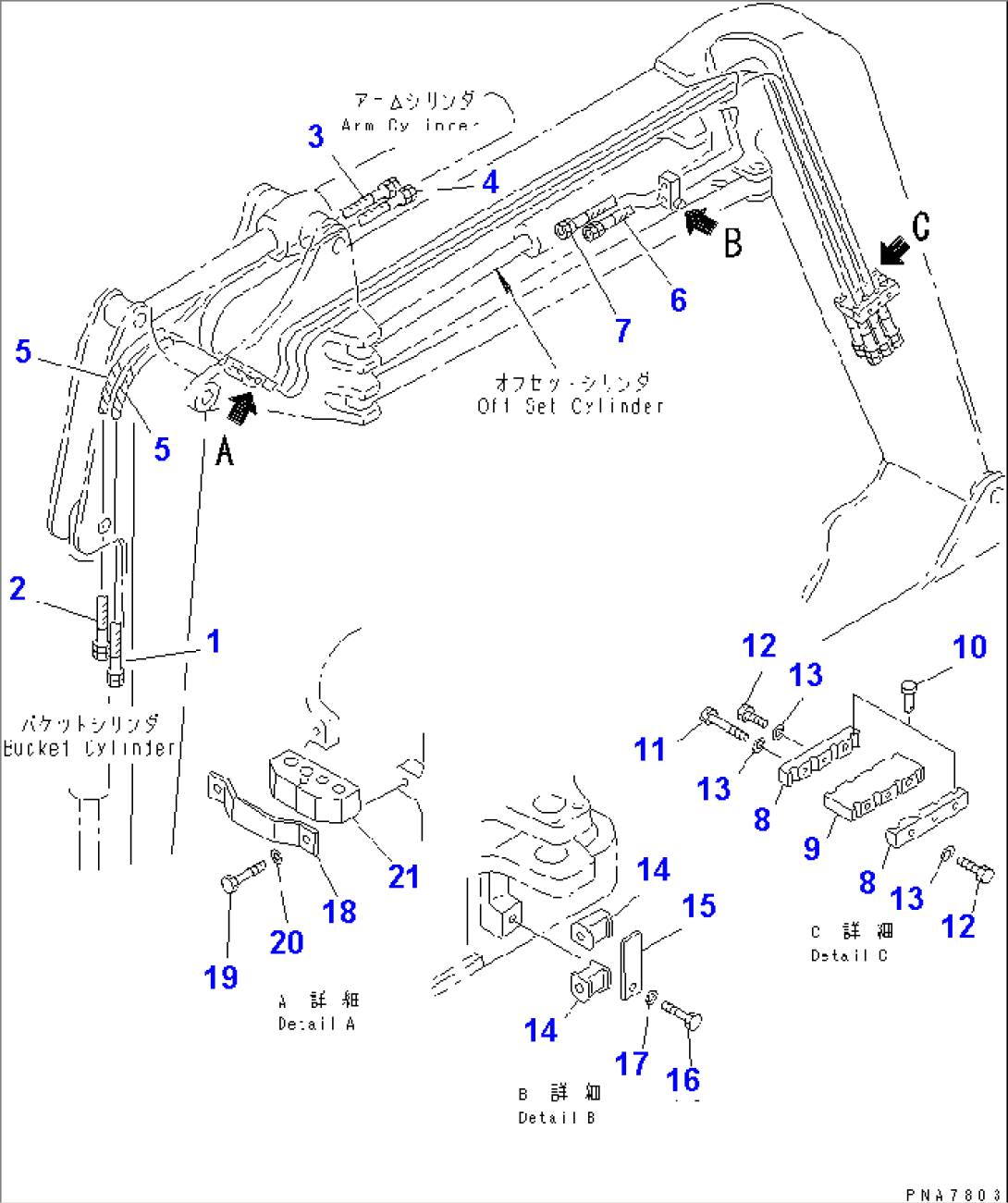

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20U-62-21312 | HOSE | 10835- | |
| 2 | 20U-62-21322 | HOSE, 4050MM | 10835- | |
| 3 | 20U-62-21332 | HOSE | 10835- | |
| 4 | 20U-62-21342 | HOSE | 10835- | |
| 5 | 203-62-32440 | COVER | 10835- | |
| 6 | 20U-62-21352 | HOSE | 10835- | |
| 7 | 20U-62-21362 | HOSE | 10835- | |
| 8 | 20U-62-21370 | CLAMP | 10835- | |
| 9 | 20U-62-21380 | CLAMP | 10835- | |
| 10 | 04205-11235 | PIN | 10835- | |
| 11 | 01011-81005 | BOLT | 10835- | |
| 12 | 01010-81030 | BOLT | 10835- | |
| 13 | 01643-31032 | WASHER | 10835- | |
| 14 | 20S-62-71150 | CUSHION | 10835- | |
| 15 | 20U-70-21360 | PLATE | 10835- | |
| 16 | 01010-81230 | BOLT | 10835- | |
| 17 | 01643-31232 | WASHER | 10835- | |
| 18 | 20U-70-31360 | PLATE | 16790- | |
| 18 | 20U-70-21290 | PLATE | 10835-16789 | |
| 19 | 01010-81225 | BOLT | 10835- | |
| 20 | 01643-31232 | WASHER | 10835- | |
| 21 | 20U-70-31271 | CUSHION | 16790- | |
| 21 | 21W-70-21351 | CUSHION | 10835-16789 |
