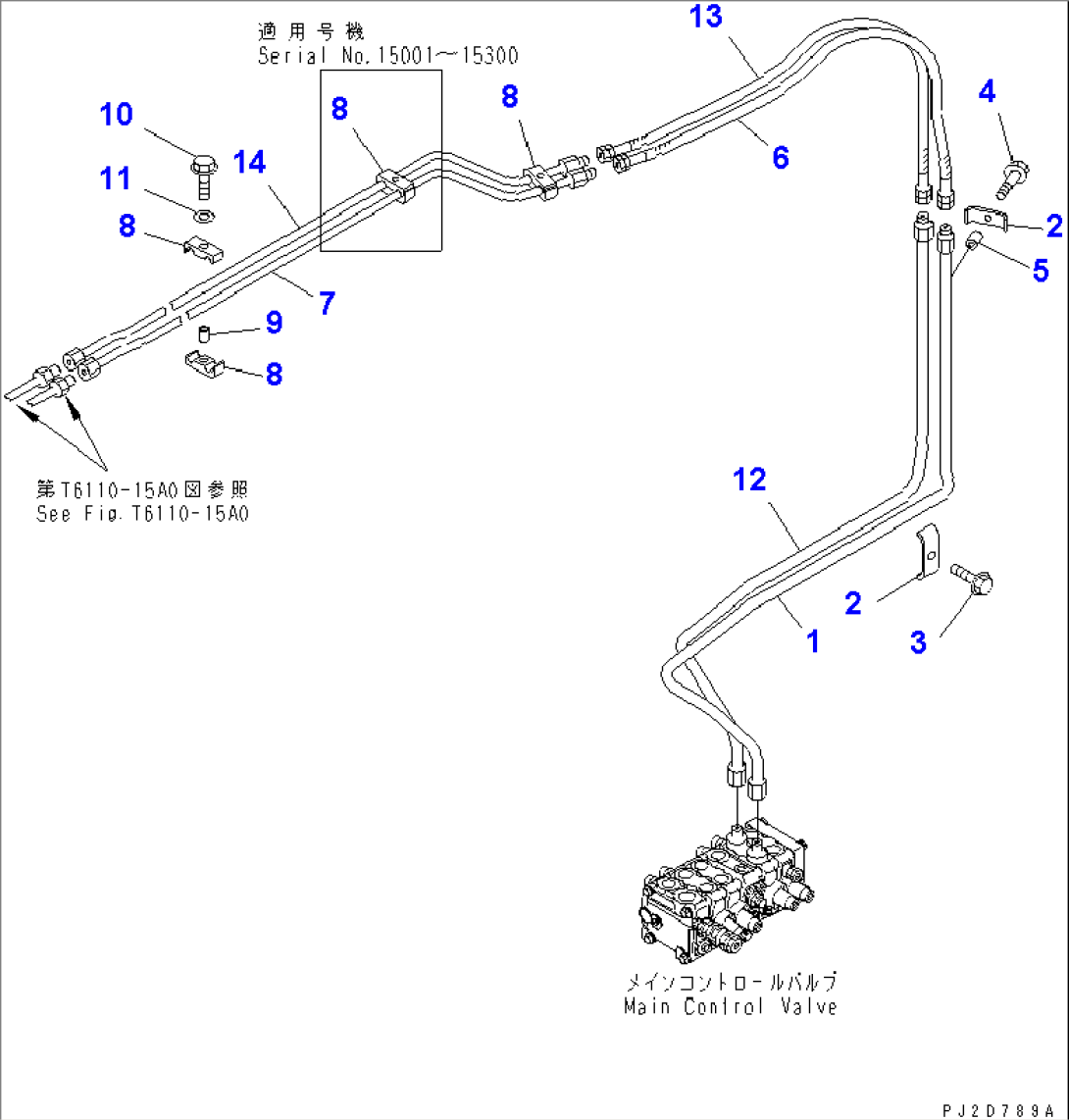

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22T-61-23210 | TUBE | 15301- | |
| 1 | 22T-61-23110 | TUBE | 15001-15300 | |
| 2 | 232-60-14940 | CLIP | 15001- | |
| 3 | 01435-01016 | BOLT | 15001- | |
| 4 | 01435-01040 | BOLT | 15001- | |
| 5 | 416-855-2430 | SPACER | 15001- | |
| 6 | 07108-20411 | HOSE | 15001- | |
| 7 | 22T-61-23220 | TUBE | 15301- | |
| 7 | 22T-61-23160 | TUBE | 15001-15300 | |
| 8 | 23S-61-24380 | CLAMP | 15301- | |
| 8 | 23S-61-24380 | CLAMP | 15001-15300 | |
| 9 | 23S-61-24390 | SPACER | 15301- | |
| 9 | 23S-61-24390 | SPACER | 15001-15300 | |
| 10 | 01435-01050 | BOLT | 15301- | |
| 10 | 01435-01050 | BOLT | 15001-15300 | |
| 11 | 01643-31032 | WASHER | 15301- | |
| 11 | 01643-31032 | WASHER | 15001-15300 | |
| 12 | 22T-61-23120 | TUBE | 15001- | |
| 13 | 07108-20411 | HOSE | 15001- | |
| 14 | 22T-61-23150 | TUBE | 15001- |
