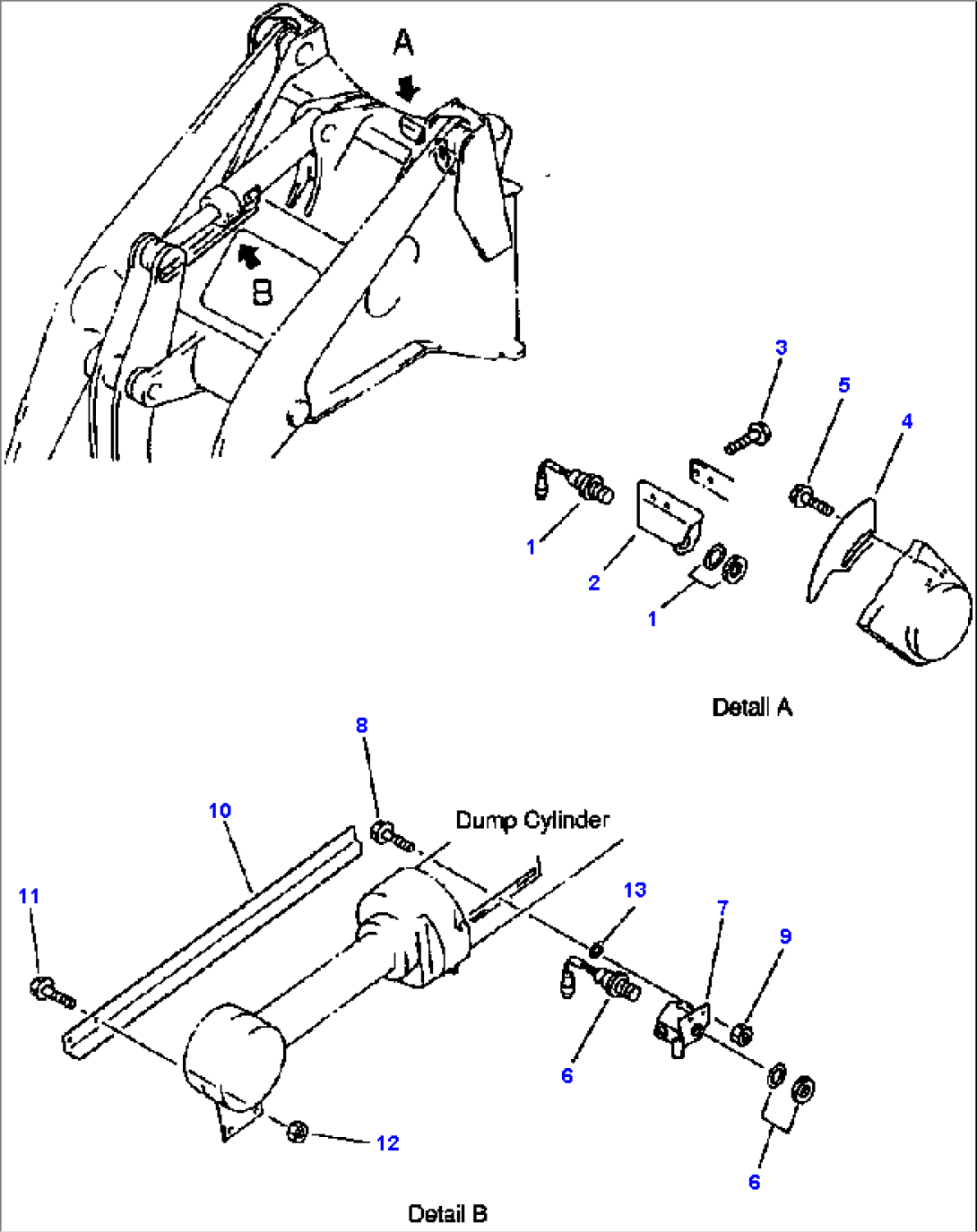

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-11166 | SWITCH, BOOM KICK-OUT | ||
| 2 | 418-43-19121 | SUPPORT | ||
| 3 | 01435-01225 | BOLT | ||
| 4 | 419-43-19111 | PLATE | ||
| 5 | 01435-01220 | BOLT | ||
| 6 | 421-06-11166 | SWITCH, BUCKET POSITIONER | ||
| 7 | 419-43-19131 | PLATE | ||
| 8 | 01435-01230 | BOLT | ||
| 9 | 01584-01210 | NUT | ||
| 10 | 419-43-19120 | PLATE | ||
| 11 | 01435-01240 | BOLT | ||
| 12 | 01584-01210 | NUT | ||
| 13 | 01642-21216 | WASHER | ||
| 01643-31232 | WASHER |
