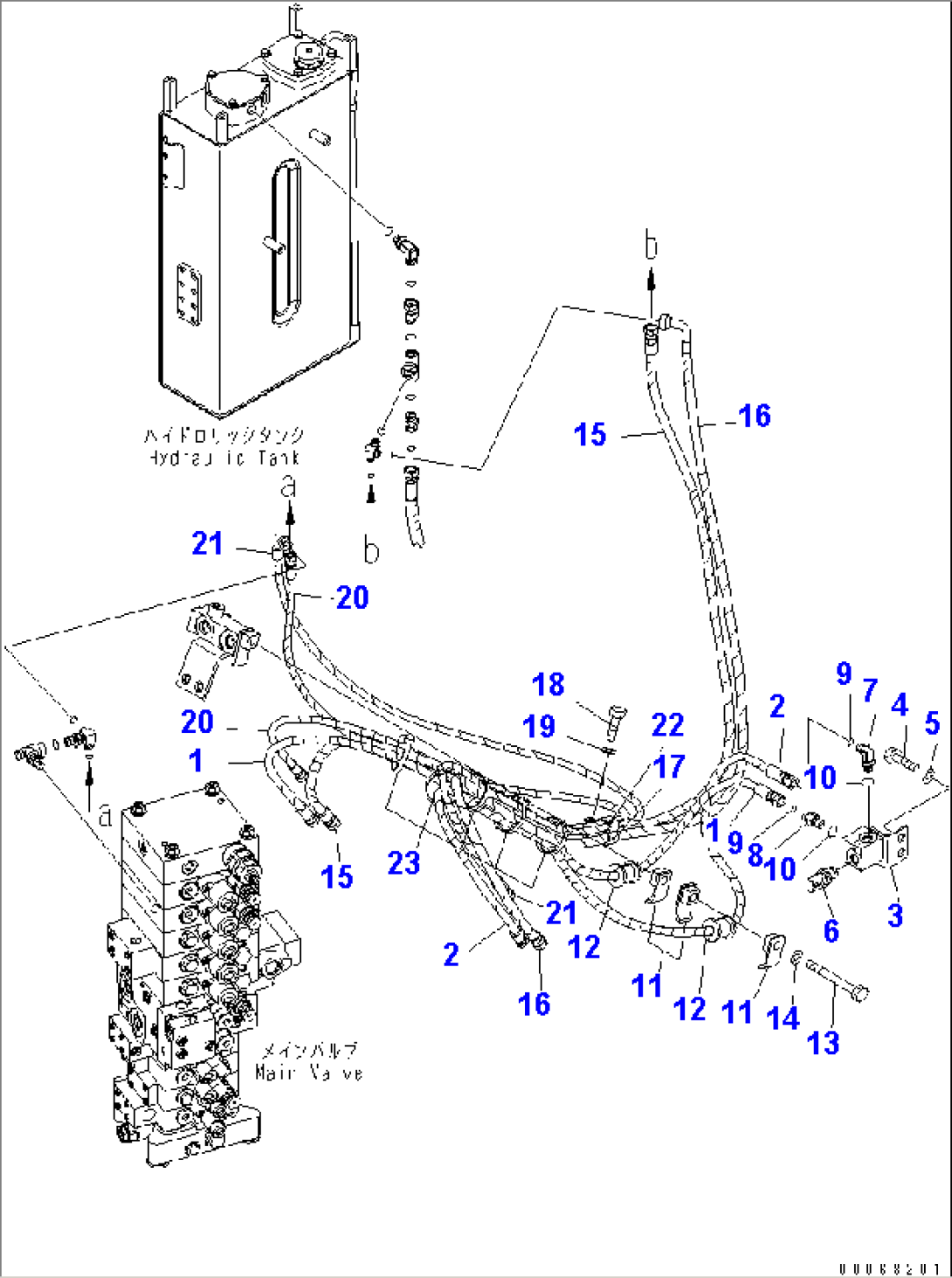

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22B-62-29180 | HOSE, 1610MM | 20001- | |
| 1 | 21U-62-34760 | BAND, RED | 20001- | |
| 2 | 22B-62-29190 | HOSE, 1580MM | 20001- | |
| 2 | 21U-62-34750 | BAND, BLUE | 20001- | |
| 3 | 22A-914-1740 | BLOCK | 20001- | |
| 4 | 01010-81230 | BOLT | 20001- | |
| 5 | 01643-31232 | WASHER | 20001- | |
| 6 | 7861-93-1811 | SENSOR | 20001- | |
| 7 | 02782-10210 | ELBOW | 20001- | |
| 8 | 02781-0021D | UNION | 20001- | |
| 9 | 02896-11008 | O-RING | 20001- | |
| 10 | 07002-11423 | O-RING | 20001- | |
| 11 | 07094-10315 | CLAMP | 20001- | |
| 12 | 07095-00317 | CUSHION | 20001- | |
| 13 | 01010-81280 | BOLT | 20001- | |
| 14 | 01643-31232 | WASHER | 20001- | |
| 15 | 22B-62-29230 | HOSE, 2200MM | 20001- | |
| 15 | 21U-62-34740 | BAND, ORANGE | 20001- | |
| 16 | 22B-62-29240 | HOSE, 2200MM | 20001- | |
| 16 | 21U-62-34770 | BAND, WHITE | 20001- | |
| 17 | 04435-51712 | CLIP | 20681- | |
| 17 | 04435-51612 | CLIP | 20001-20680 | |
| 18 | 01010-81220 | BOLT | 20001- | |
| 19 | 01643-31232 | WASHER | 20001- | |
| 20 | 22B-62-29210 | HOSE, 2150MM | 20001- | |
| 20 | 21U-62-34730 | BAND, GREEN | 20001- | |
| 21 | 22B-62-29220 | HOSE, 2050MM | 20001- | |
| 21 | 21U-62-34710 | BAND, YELLOW | 20001- | |
| 22 | 04435-51412 | CLIP | 20001- | |
| 23 | 08034-20876 | BAND | 20001- |
