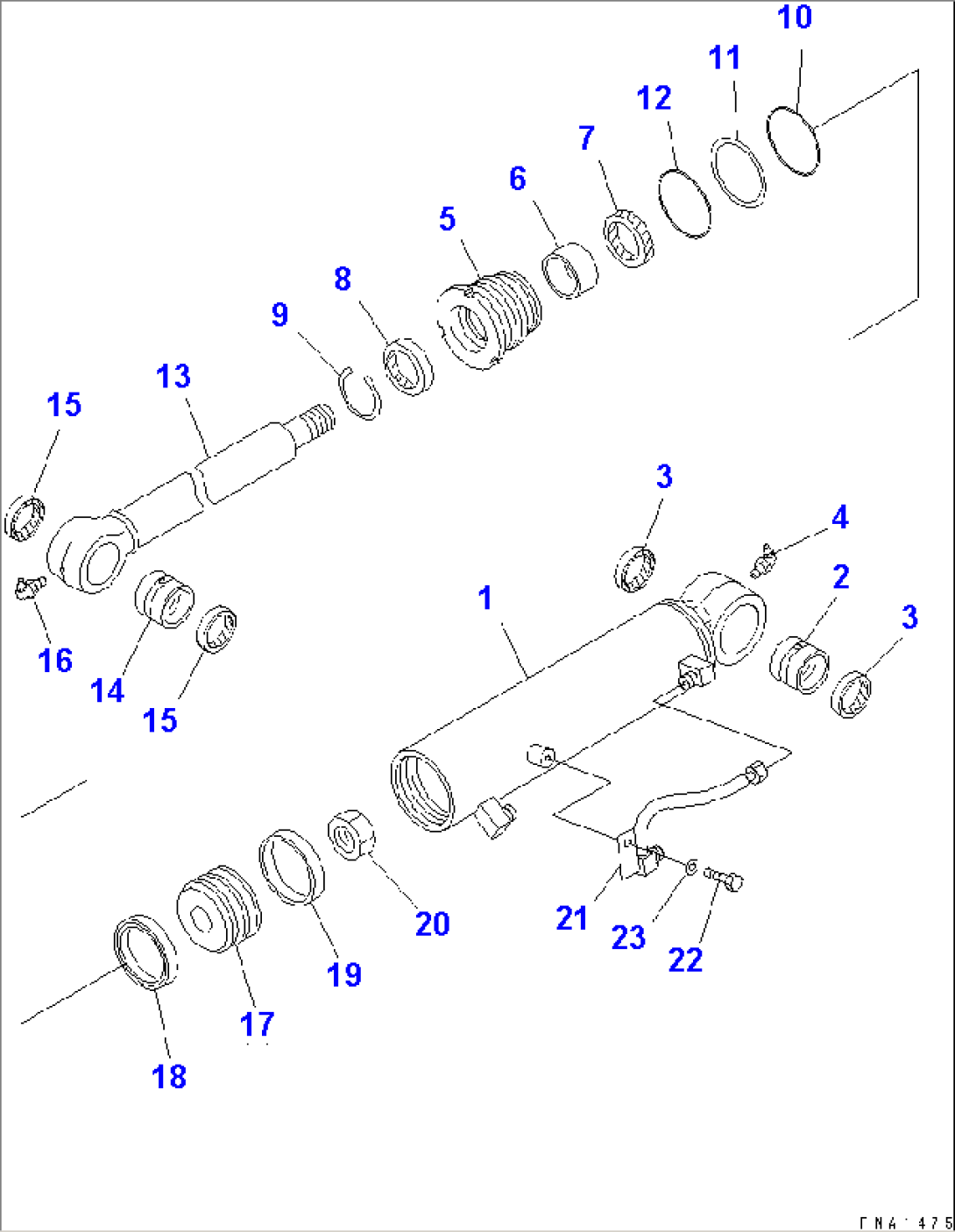

| Item | Part No. | Part Name | Qty | Serial No. |
| G1 | (\8\20U-63-X2231) | OFFSET CYLINDER G. | 12800- | |
| G1 | (\8\20U-63-X2230) | OFFSET CYLINDER G. | 10835-12799 | |
| ==================== | ||||
| 20U-63-02231 | CYLINDER ASS'Y,OFFSET | 12800- | ||
| 20U-63-02230 | CYLINDER ASS'Y,OFFSET | 10835-12799 | ||
| 1 | 20U-63-86340 | CYLINDER,OFFSET | 10835- | |
| 2 | 20T-870-1290 | BUSHING | 12800- | |
| 2 | 07144-10505 | BUSHING | 10835-12799 | |
| 3 | 07145-00050 | SEAL,DUST (KIT) | 10835- | |
| 4 | 07020-00900 | FITTING,GREASE | 10835- | |
| 5 | 707-29-90730 | HEAD,CYLINDER | 10835- | |
| 6 | 07177-05030 | BUSHING | 10835- | |
| 7 | 707-51-50211 | PACKING,ROD (KIT) | 10835- | |
| 8 | 176-63-92240 | SEAL,DUST (KIT) | 10835- | |
| 9 | 07179-12062 | RING,SNAP | 10835- | |
| 10 | 07000-12085 | O-RING (KIT) | 10835- | |
| 11 | 07146-02086 | RING,BACK-UP (KIT) | 10835- | |
| 12 | 07000-02090 | O-RING (KIT) | 10835- | |
| 13 | 20U-63-86320 | ROD,PISTON | 10835- | |
| 14 | 20T-870-1290 | BUSHING | 12800- | |
| 14 | 07144-10505 | BUSHING | 10835-12799 | |
| 15 | 07145-00050 | SEAL,DUST (KIT) | 10835- | |
| 16 | 07020-00900 | FITTING,GREASE | 10835- | |
| 17 | 707-36-90260 | PISTON | 10835- | |
| 18 | 707-44-90180 | RING,PISTON (KIT) | 10835- | |
| 19 | 07156-00912 | RING,WEAR (KIT) | 10835- | |
| 20 | 01580-03629 | NUT | 10835- | |
| 21 | 20U-63-86380 | TUBE | 10835- | |
| 22 | 01010-81020 | BOLT | 12800- | |
| 22 | 01010-51020 | BOLT | 10835-12799 | |
| 23 | 01643-31032 | WASHER | 10835- | |
| ==================== |
