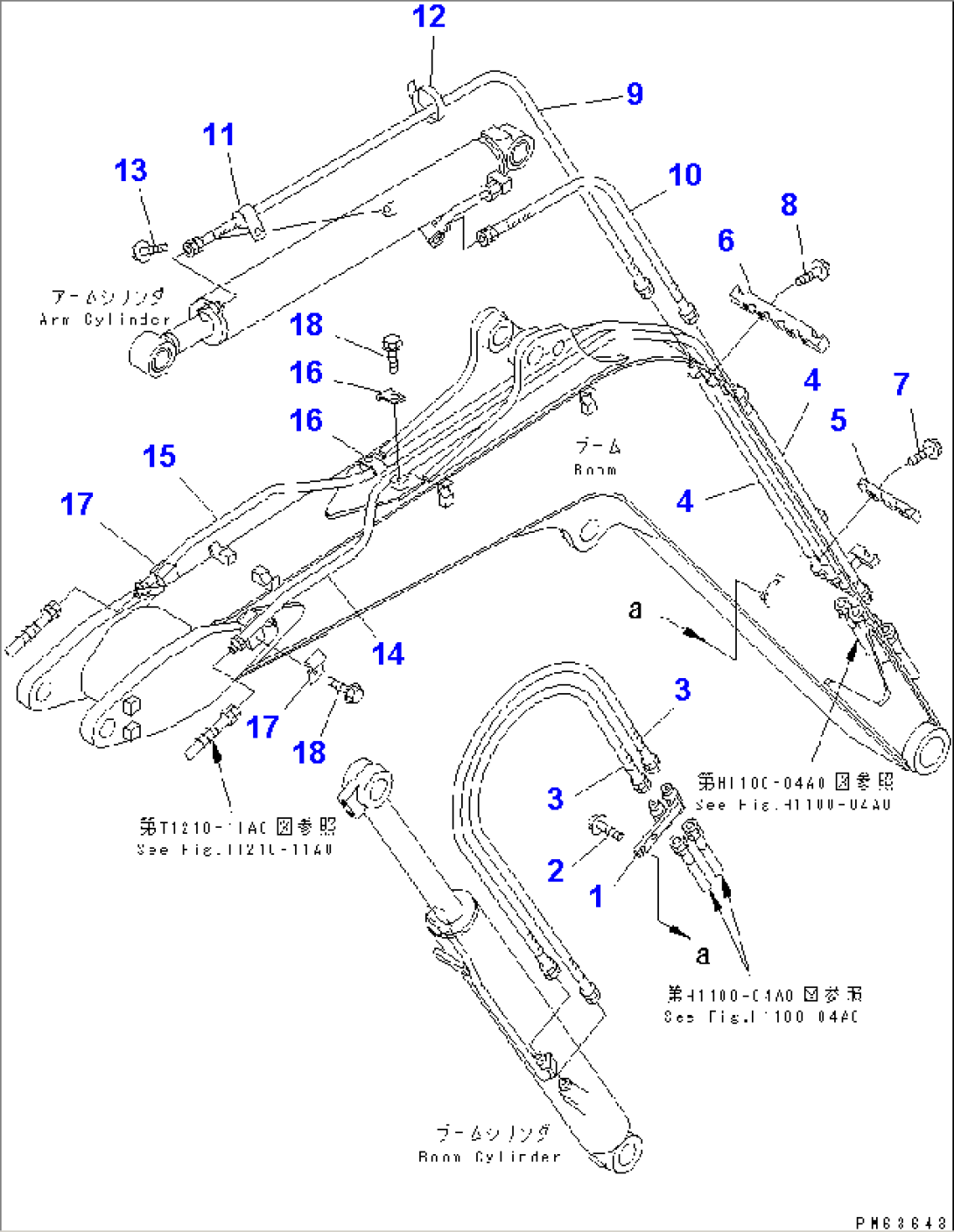

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20P-62-83211 | CONNECTOR | 10001- | |
| 2 | 01435-01020 | BOLT | 10001- | |
| 3 | 20P-62-83140 | HOSE | 10001- | |
| 4 | 20P-970-8890 | TUBE | 10001- | |
| 5 | 20N-62-43590 | CLAMP | 10001- | |
| 6 | 20N-970-7851 | CLAMP | 10001- | |
| 7 | 01435-00825 | BOLT | 10001- | |
| 8 | 01435-00835 | BOLT | 10001- | |
| 9 | 20P-970-8840 | HOSE | 10001- | |
| 10 | 20P-970-8850 | HOSE | 10001- | |
| 11 | 04434-52210 | CLIP | 10001- | |
| 12 | 08034-00834 | BAND | 10001- | |
| 13 | 01435-01020 | BOLT | 10001- | |
| 14 | 20P-970-8582 | TUBE,L.H. | 10001- | |
| 15 | 20P-970-8592 | TUBE,R.H. | 10001- | |
| 16 | 20S-62-33350 | CLAMP | 10001- | |
| 17 | 20N-62-43610 | CLIP | 10001- | |
| 18 | 01435-00816 | BOLT | 10001- |
