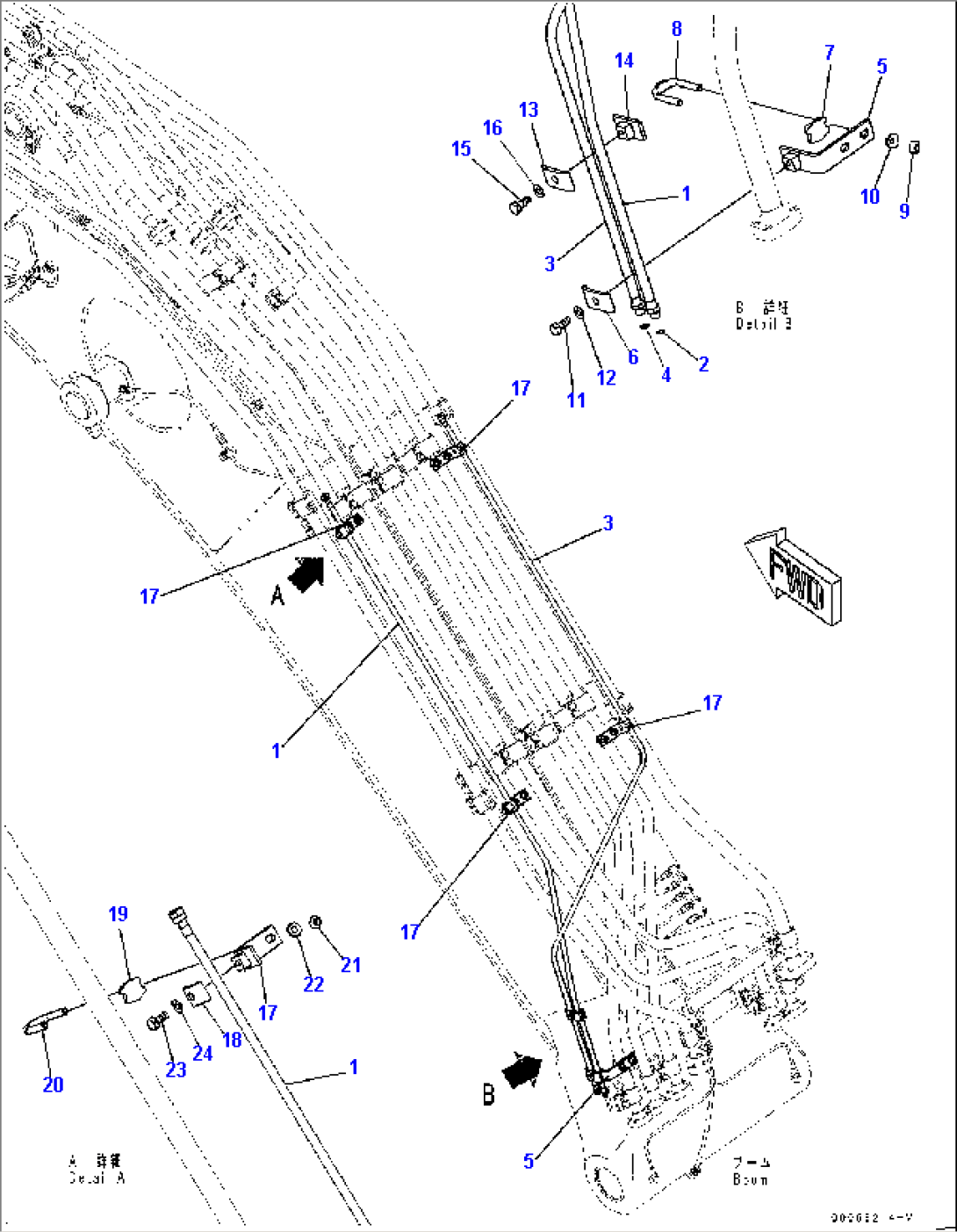

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 207-62-76240 | Tube | 1001- | |
| 2 | 02896-11008 | O-ring | 1001- | |
| 3 | 207-62-76250 | Tube | 1001- | |
| 4 | 02896-11008 | O-ring | 1001- | |
| 5 | 207-62-26340 | Bracket | 1001- | |
| 6 | 207-62-76370 | Clamp | 1001- | |
| 7 | 07283-53444 | Seat | 1001- | |
| 8 | 07283-33450 | Clip | 1020- | |
| 8 | 07283-33442 | Clip, Pipe | 1001-1019 | |
| 9 | 01597-01009 | Nut | 1001- | |
| 10 | 01643-31032 | Washer | 1001- | |
| 11 | 01010-81025 | Bolt | 1001- | |
| 12 | 01643-31032 | Washer | 1001- | |
| 13 | 207-62-76370 | Clamp | 1001- | |
| 14 | 207-62-76360 | Seat | 1001- | |
| 15 | 01010-81025 | Bolt | 1001- | |
| 16 | 01643-31032 | Washer | 1001- | |
| 17 | 207-62-76310 | Bracket | 1001- | |
| 18 | 207-62-76380 | Clamp | 1001- | |
| 19 | 07283-53444 | Seat | 1001- | |
| 20 | 07283-33450 | Clip | 1020- | |
| 20 | 07283-33442 | Clip, Pipe | 1001-1019 | |
| 21 | 01597-01009 | Nut | 1001- | |
| 22 | 01643-31032 | Washer | 1001- | |
| 23 | 01010-81025 | Bolt | 1001- | |
| 24 | 01643-31032 | Washer | 1001- |
