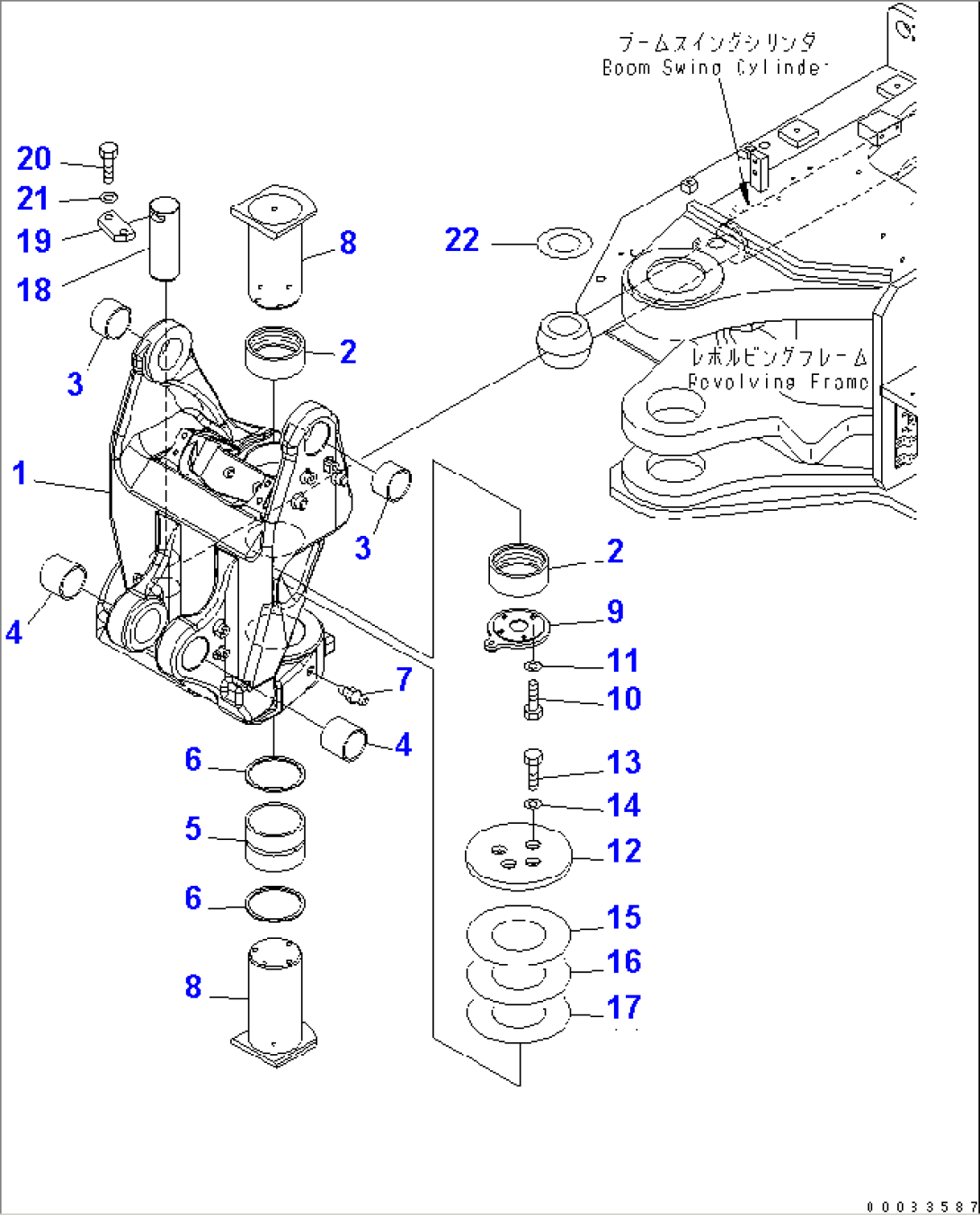

| Item | Part No. | Part Name | Qty | Serial No. |
| 21W-70-01513 | SWING BRACKET ASS'Y | 3461- | ||
| \1\21W-70-01512 | SWING BRACKET ASS'Y | 3035-3460 | ||
| 21W-70-01511 | SWING BRACKET ASS'Y | 1001-3034 | ||
| 1 | \6\ | BRACKET | 3461- | |
| 1 | \6\ | BRACKET | 1001-3460 | |
| 2 | 20T-70-81620 | BUSHING | 1001- | |
| 3 | 21W-70-48130 | BUSHING | 1001- | |
| 4 | 21W-70-48140 | BUSHING | 1001- | |
| 5 | 21W-70-48122 | BUSHING | 3035- | |
| 5 | 21W-70-48121 | BUSHING | 1001-3034 | |
| 6 | 07145-00110 | SEAL,DUST | 1001- | |
| 7 | 07020-00000 | FITTING,GREASE | 1001- | |
| 8 | 21W-70-48262 | PIN | 1095- | |
| 9 | 21W-70-48291 | PLATE | 1095- | |
| 10 | 01010-81030 | BOLT | 1006- | |
| 11 | 01643-31032 | WASHER | 1001- | |
| 12 | 21W-70-48272 | HOLDER | 1095- | |
| 13 | 01010-81030 | BOLT | 1095- | |
| 14 | 01643-31032 | WASHER | 1095- | |
| 15 | 21W-70-48151 | SPACER, 1.5MM | 1006- | |
| 16 | 21W-70-48160 | SPACER | 1001- | |
| 17 | 21W-70-48170 | SPACER | 1001- | |
| 18 | 201-70-58140 | PIN | 1001- | |
| 19 | 21W-70-48320 | PLATE | 1006- | |
| 20 | 01010-81440 | BOLT | 1001- | |
| 21 | 20D-14-11510 | WASHER | 1001- | |
| 22 | 21Y-70-14710 | SPACER, 1.0MM | 1001- |
