| Item | Part No. | Part Name | Qty | Serial No. |

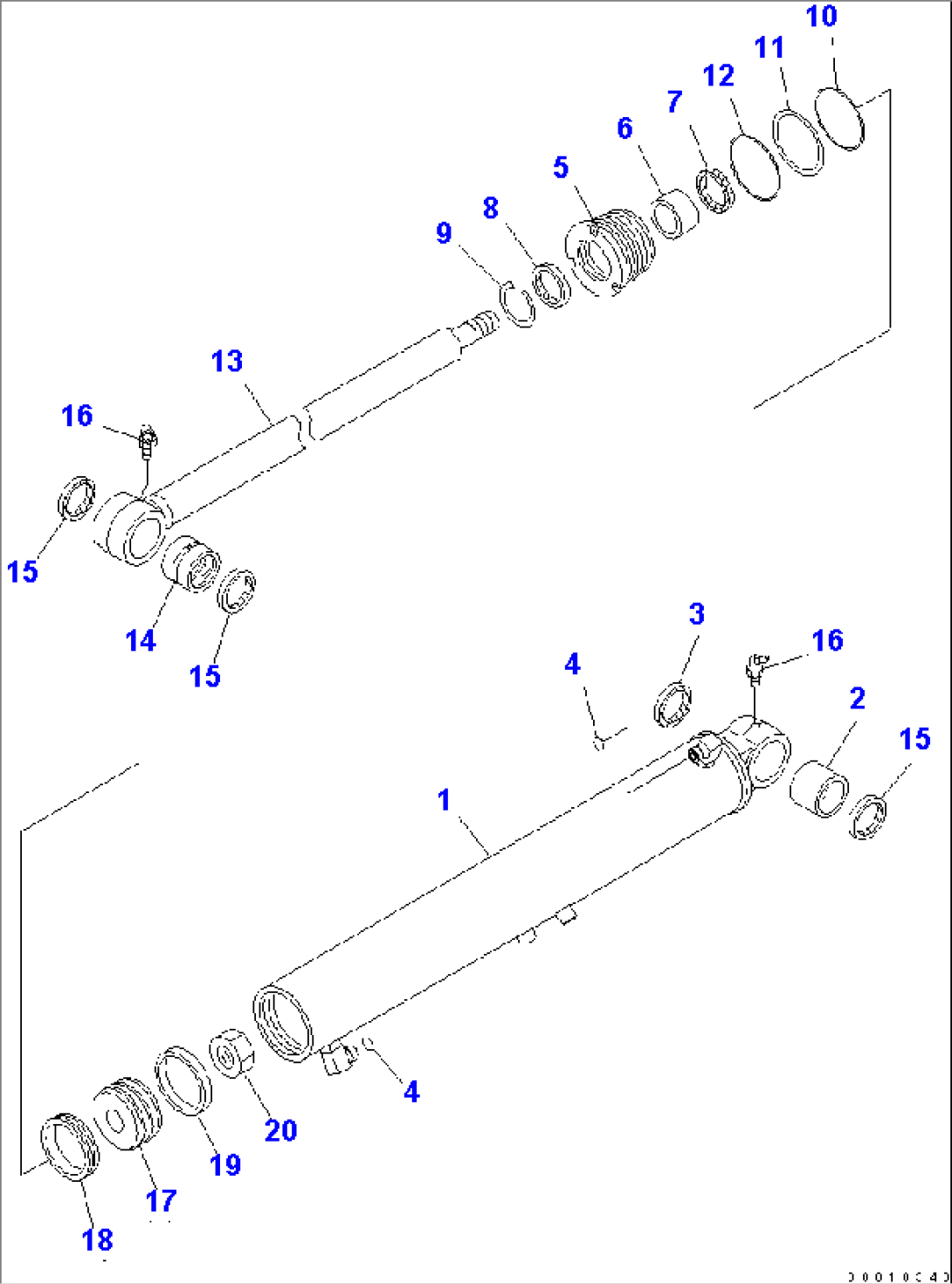

| 707-00-0E670 | CYLINDER ASS'Y,BOOM SWING | 5001- | ||
| 1 | 707-11-95280 | CYLINDER | 5001- | |
| 2 | 707-76-50880 | BUSHING | 5001- | |
| 3 | 707-77-50020 | SEAL,DUST (KIT) | 5001- | |
| 4 | 02896-11009 | O-RING (KIT) | 5001- | |
| 5 | 707-29-95721 | HEAD,CYLINDER | 5001- | |
| 6 | 07177-05030 | BUSHING | 5001- | |
| 7 | 707-51-50211 | PACKING,ROD (KIT) | 5001- | |
| 8 | 176-63-92240 | SEAL,DUST (KIT) | 5001- | |
| 9 | 07179-12062 | RING,SNAP | 5001- | |
| 10 | 07000-12090 | O-RING (KIT) | 5001- | |
| 11 | 707-35-52780 | RING,BACK-UP (KIT) | 5001- | |
| 12 | 07000-12095 | O-RING (KIT) | 5001- | |
| 13 | 707-58-50F00 | ROD,PISTON | 5001- | |
| 14 | 20T-870-1290 | BUSHING | 5001- | |
| 15 | 07145-00050 | SEAL,DUST (KIT) | 5001- | |
| 16 | 07020-00675 | FITTING,GREASE | 5001- | |
| 17 | 707-36-95170 | PISTON | 5001- | |
| 18 | 707-44-95180 | RING,PISTON (KIT) | 5001- | |
| 19 | 707-39-95110 | RING,WEAR (KIT) | 5001- | |
| 20 | 707-67-36010 | NUT | 5001- | |
| SERVICE KIT | ||||
| K | 707-98-29640 | SERVICE KIT,SWING CYLINDER | 5001- |
