| Item | Part No. | Part Name | Qty | Serial No. |

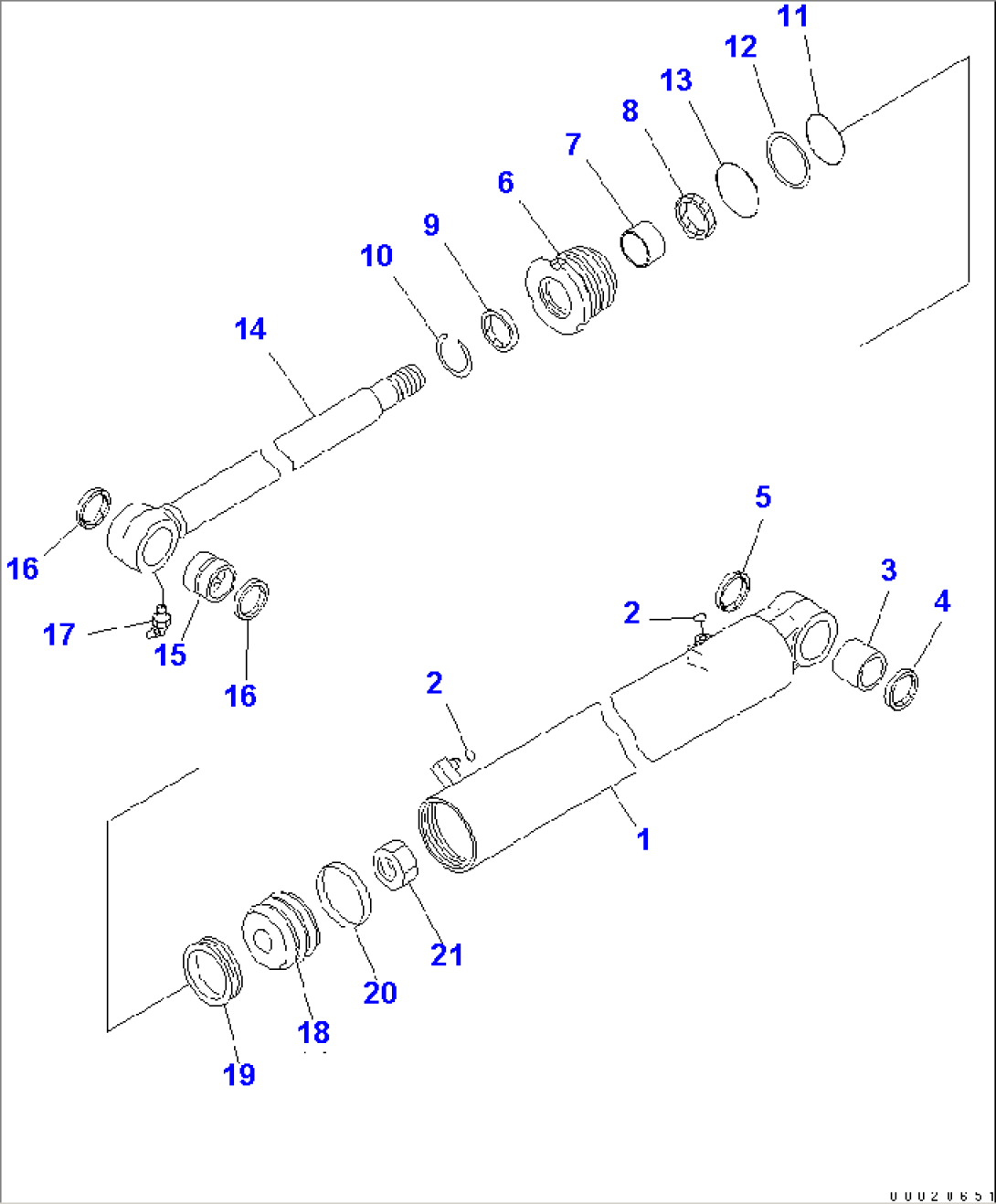

| 707-00-0F480 | CYLINDER ASS'Y,BOOM SWING | 15001- | ||
| 1 | 707-11-75550 | CYLINDER | 15001- | |
| 2 | 02896-11008 | O-RING (KIT) | 15001- | |
| 3 | 707-76-40470 | BUSHING | 15001- | |
| 4 | 707-77-40020 | SEAL,OIL (KIT) | 15001- | |
| 5 | 07145-00040 | SEAL,DUST (KIT) | 15001- | |
| 6 | 707-29-75830 | HEAD,CYLINDER | 15001- | |
| 7 | 707-52-10410 | BUSHING | 15001- | |
| 8 | 707-51-40210 | PACKING,ROD (KIT) | 15001- | |
| 9 | 198-63-75190 | SEAL,DUST (KIT) | 15001- | |
| 10 | 07179-12052 | RING,SNAP | 15001- | |
| 11 | 07000-12070 | O-RING (KIT) | 15001- | |
| 12 | 707-35-52760 | RING,BACK-UP (KIT) | 15001- | |
| 13 | 07000-12075 | O-RING (KIT) | 15001- | |
| 14 | 707-58-40A80 | ROD | 15001- | |
| 15 | 20P-70-81631 | BUSHING | 15001- | |
| 16 | 07145-00040 | SEAL,DUST (KIT) | 15001- | |
| 17 | 07020-00675 | FITTING,GREASE | 15001- | |
| 18 | 707-36-75270 | PISTON | 15001- | |
| 19 | 707-44-75180 | RING,PISTON (KIT) | 15001- | |
| 20 | 707-39-75190 | RING,WEAR (KIT) | 15001- | |
| 21 | 707-67-27020 | NUT | 15001- | |
| SERVICE KIT | ||||
| KIT | 707-98-22890 | SERVICE KIT,BOOM SWING CYLINDER | 15001- |
