| Item | Part No. | Part Name | Qty | Serial No. |

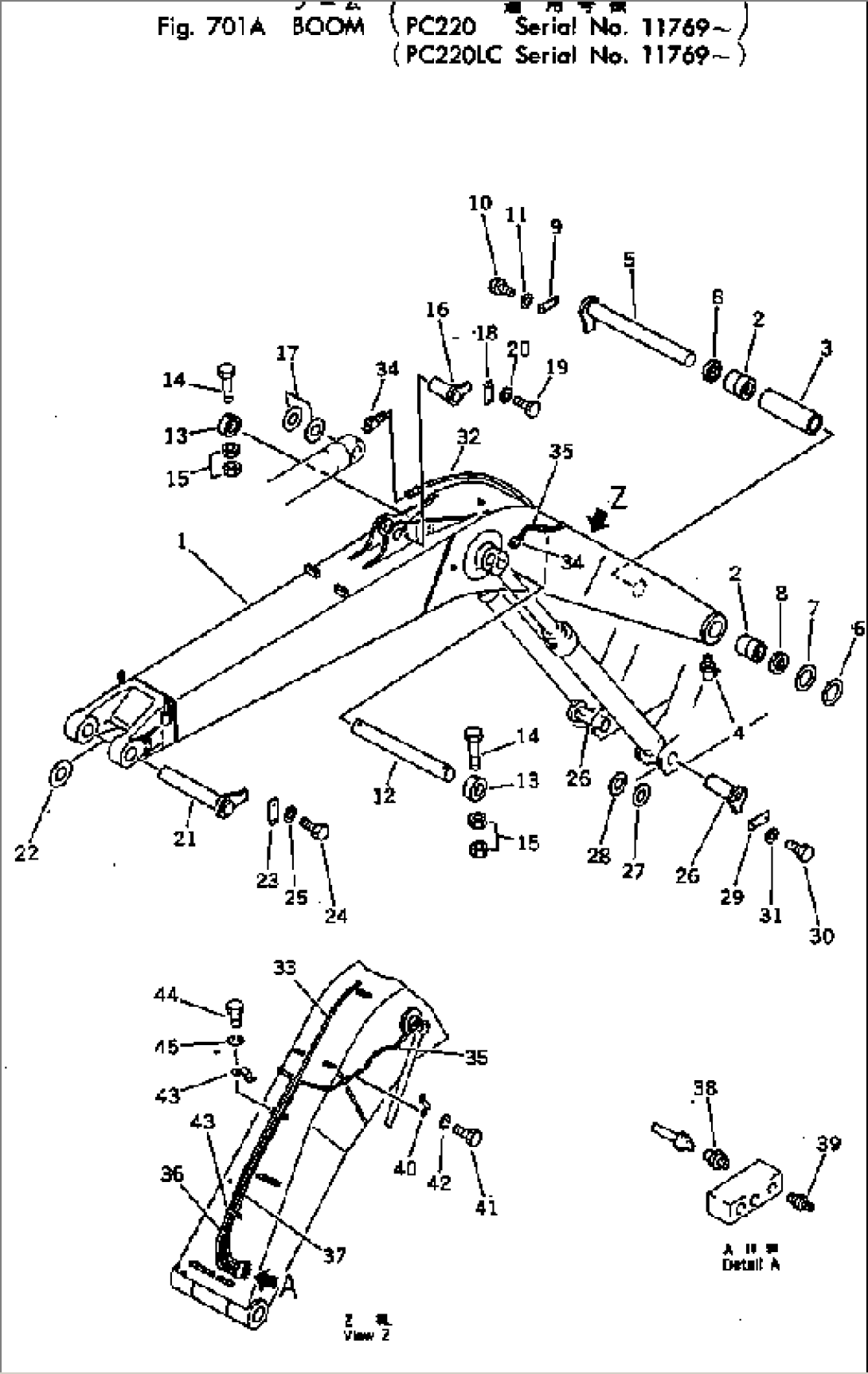

| 206-70-00051 | BOOM ASS'Y | 11769- | ||
| 1 | \6\ | BOOM | 11769- | |
| 2 | 206-70-45570 | BUSHING | 11001- | |
| 3 | 206-70-45580 | SPACER | 11001- | |
| 4 | 07020-00900 | FITTING,GREASE | 11001- | |
| 5 | 206-70-45560 | PIN | 11001- | |
| 6 | 207-70-11350 | SPACER, 1.5MM | 11001- | |
| 7 | 207-70-11340 | SPACER, 0.8MM | 11001- | |
| 8 | 07145-00100 | SEAL,DUST | 11001- | |
| 9 | 205-70-65690 | PLATE | 11001- | |
| 10 | 01010-52050 | BOLT | 11001- | |
| 11 | 01643-32060 | WASHER | 11001- | |
| 12 | 206-70-45590 | PIN | 11001- | |
| 13 | 206-70-45620 | PLATE | 11001- | |
| 14 | 01011-52090 | BOLT | 11001- | |
| 15 | 01580-12016 | NUT | 11001- | |
| 16 | 206-70-45610 | PIN | 11001- | |
| 17 | 206-70-45220 | SPACER, 1.0MM | 11001- | |
| 18 | 205-70-66580 | PLATE | 11001- | |
| 19 | 01010-51230 | BOLT | 11001- | |
| 20 | 01643-31232 | WASHER | 11001- | |
| 21 | 205-70-65680 | PIN | 11001- | |
| 22 | 206-70-45220 | SPACER, 1.0MM | 11001- | |
| 23 | 205-70-65690 | PLATE | 11001- | |
| 24 | 01010-52050 | BOLT | 11001- | |
| 25 | 01643-32060 | WASHER | 11001- | |
| 26 | 205-70-65750 | PIN | 11001- | |
| 27 | 205-70-51450 | SPACER, 1.0MM | 11001- | |
| 28 | 205-70-61570 | SPACER, 1.5MM | 11001- | |
| 29 | 205-70-66580 | PLATE | 11001- | |
| 30 | 01010-51230 | BOLT | 11001- | |
| 31 | 01643-31232 | WASHER | 11001- | |
| 32 | 209-72-16580 | HOSE | 11001- | |
| 33 | 206-70-45651 | TUBE | 11769- | |
| 34 | 205-70-65780 | ELBOW | 11001- | |
| 35 | 205-70-51360 | HOSE, 540MM | 11001- | |
| 36 | 206-70-45630 | TUBE | 11769- | |
| 37 | 206-70-45640 | TUBE | 11769- | |
| 38 | 07213-50813 | CONNECTOR | 11001- | |
| 39 | 07020-00000 | FITTING,GREASE | 11001- | |
| 40 | 205-70-51420 | CLIP | 11001- | |
| 41 | 01010-50612 | BOLT | 11001- | |
| 42 | 01602-20619 | WASHER,SPRING | 11001- | |
| 43 | 205-70-51410 | CLIP | 11001- | |
| 44 | 01010-50612 | BOLT | 11001- | |
| 45 | 01602-20619 | WASHER,SPRING | 11001- |
