| Item | Part No. | Part Name | Qty | Serial No. |

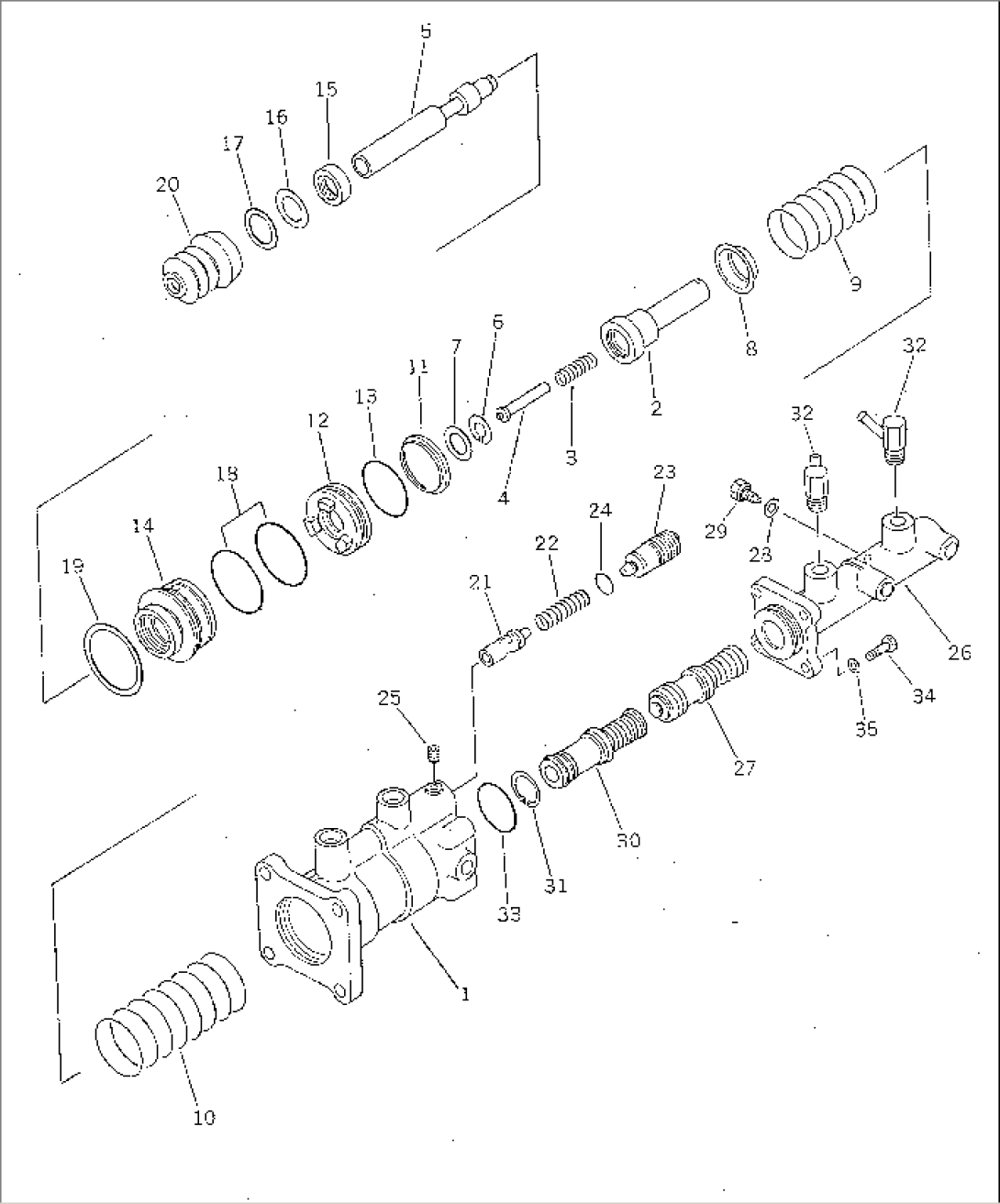

| 417-43-17800 | CYLINDER ASS'Y,BOOSTER AND MASTER | 10001- | ||
| 1 | 418-43-17441 | POWER CYLINDER A.,BOOSTER | 10001- | |
| 2 | 417-43-17110 | CONNECTOR | 10001- | |
| 3 | 417-43-17140 | SPRING | 10001- | |
| 4 | 417-43-17150 | ROD | 10001- | |
| 5 | 417-43-17160 | SPOOL | 10001- | |
| 6 | 417-43-17170 | WASHER | 10001- | |
| 7 | 417-43-17180 | RING | 10001- | |
| 8 | 417-43-17190 | SEAT,SPRING | 10001- | |
| 9 | 417-43-17210 | SPRING | 10001- | |
| 10 | 417-43-17220 | SPRING | 10001- | |
| 11 | 417-43-17230 | SEAT,SPRING | 10001- | |
| 12 | 417-43-17240 | PISTON,POWER | 10001- | |
| 13 | 417-43-17250 | O-RING (KIT) | 10001- | |
| 14 | 417-43-17260 | COVER | 10001- | |
| 15 | 417-43-17270 | SEAL (KIT) | 10001- | |
| 16 | 417-43-17280 | PLATE (KIT) | 10001- | |
| 17 | 417-43-17290 | RING (KIT) | 10001- | |
| 18 | 417-43-17320 | O-RING (KIT) | 10001- | |
| 19 | 417-43-17330 | RING (KIT) | 10001- | |
| 20 | 417-43-17340 | COVER,DUST (KIT) | 10001- | |
| 21 | 417-43-17351 | VALVE | 10001- | |
| 22 | 418-43-17720 | SPRING | 10001- | |
| 23 | 417-43-17381 | PLUG | 10001- | |
| 24 | 417-43-17390 | O-RING | 10001- | |
| 25 | 417-43-17490 | SCREW | 10001- | |
| 26 | 417-43-17810 | CYLINDER ASS'Y,MASTER | 10001- | |
| 27 | 419-44-12510 | PISTON (KIT) | 10001- | |
| 28 | 419-44-12520 | PACKING (KIT) | 10001- | |
| 29 | 419-44-12530 | STOPPER | 10001- | |
| 30 | 417-43-17120 | PISTON (KIT) | 10001- | |
| 31 | 419-44-12560 | RING,SNAP (KIT) | 10001- | |
| 32 | 419-44-12550 | CONNECTOR | 10001- | |
| 33 | 417-43-17130 | O-RING (KIT) | 10001- | |
| 34 | 01010-51035 | BOLT | 10001- | |
| 35 | 01643-31032 | WASHER | 10001- |
