| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-837-1610 | FLANGE | 60001- | |
| 2 | 423-837-1620 | PLATE | 60001- | |
| 3 | 423-837-1630 | VENT | 60001- | |
| 4 | 07000-F3032 | O-RING | 60001- | |
| 5 | 07372-21055 | BOLT | 60001- | |
| 6 | \6\ | PLATE¤ NAME,(LIMITED SUPPLY) | 60001- | |
| 7 | 04418-13060 | SCREW | 60001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa380 5 tn s/n 60001 up
- Work equipment
- Both side dump bucket (4/4) (related parts)
Поиск по каталогу

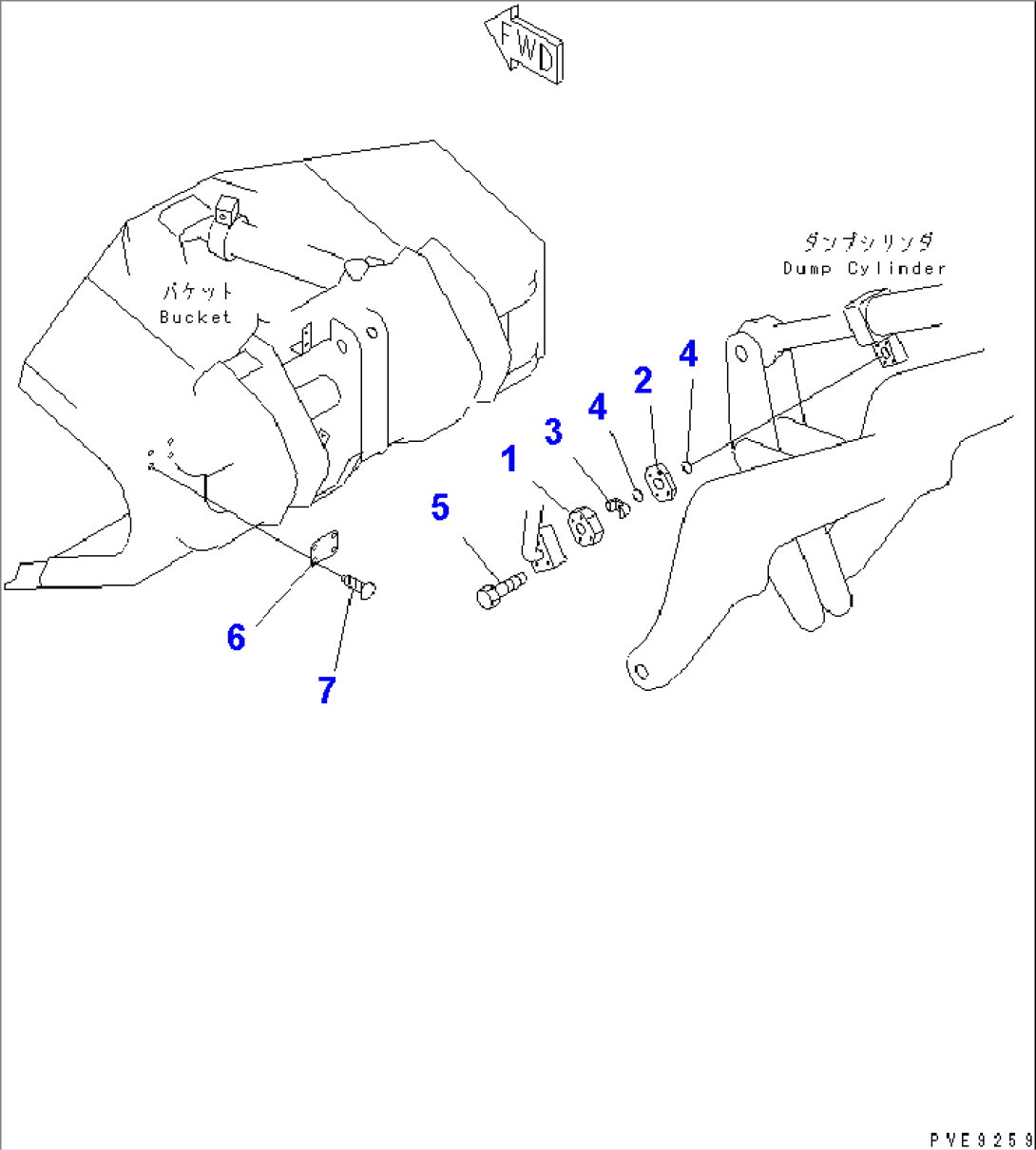

BOTH SIDE DUMP BUCKET (4/4) (RELATED PARTS)
