| Item | Part No. | Part Name | Qty | Serial No. |

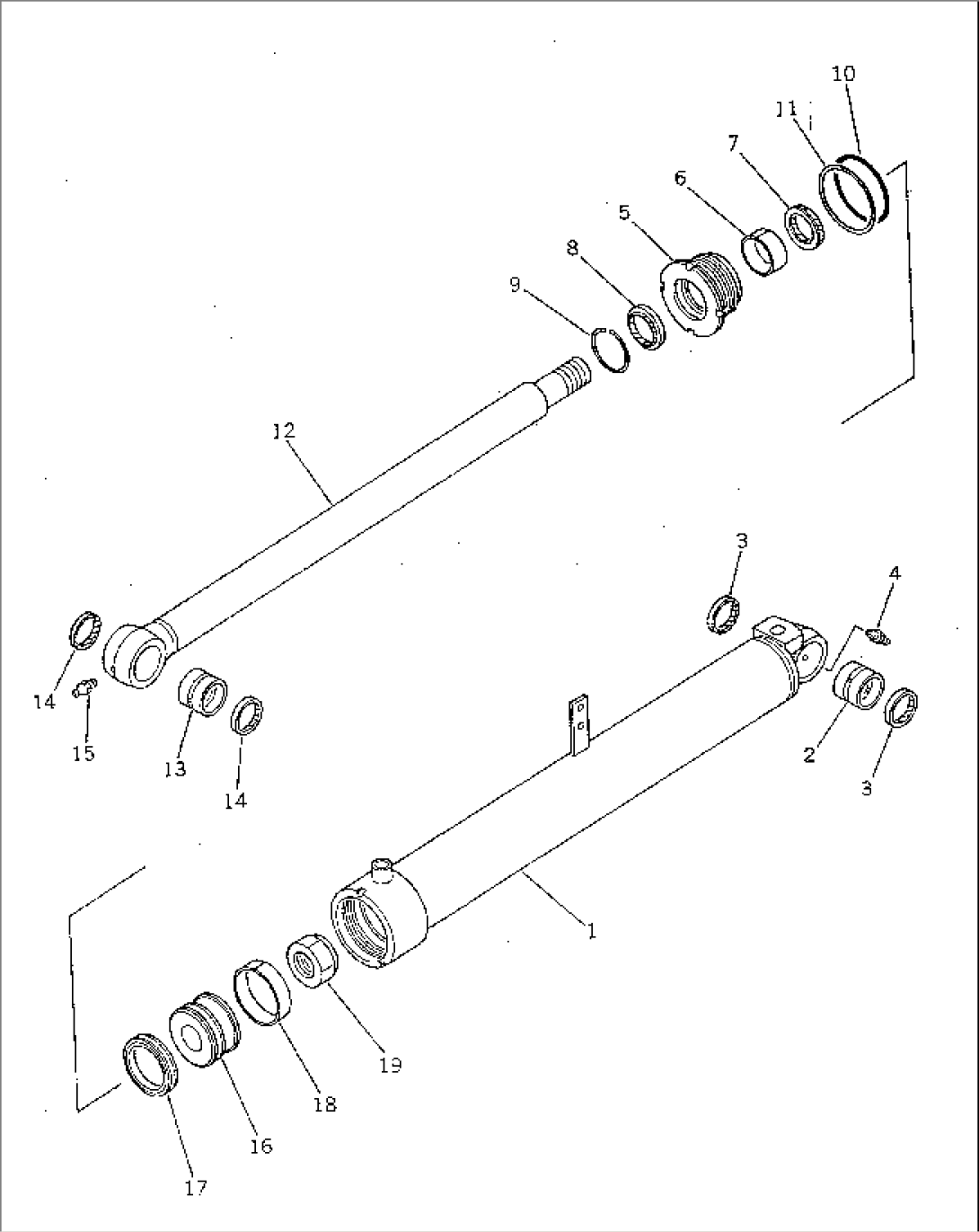

| 707-00-10330 | CYLINDER ASS'Y | 10001-30219 | ||
| 1 | 707-11-10130 | CYLINDER | 10001-30219 | |
| 2 | 07144-10505 | BUSHING | 10001-30219 | |
| 3 | 07145-00050 | SEAL,DUST | 10001-30219 | |
| 4 | 07020-00000 | FITTING,GREASE | 10001-30219 | |
| 5 | 707-29-10391 | HEAD,CYLINDER | 10001-30219 | |
| 6 | 07177-06030 | BUSHING | 10001-30219 | |
| 7 | 707-51-60030 | PACKING,ROD | 10001-30219 | |
| 8 | 141-63-93270 | SEAL,DUST | 10001-30219 | |
| 9 | 07179-12074 | RING,SNAP | .-30219 | |
| \0\07179-00082 | RING,SNAP | 10001-. | ||
| 10 | 07000-12105 | O-RING | 10001-30219 | |
| 11 | 101-63-81230 | RING,BACK-UP | 10001-30219 | |
| 12 | 707-58-60450 | ROD,PISTON | 10001-30219 | |
| 13 | 07144-10505 | BUSHING | 10001-30219 | |
| 14 | 07145-00050 | SEAL,DUST | 10001-30219 | |
| 15 | 07020-00000 | FITTING,GREASE | 10001-30219 | |
| 16 | 707-36-10280 | PISTON | 10001-30219 | |
| 17 | 707-44-10180 | RING,PISTON | .-30219 | |
| \0\707-44-10080 | RING,PISTON | 10001-. | ||
| 18 | 07155-01025 | RING,WEAR | 10001-30219 | |
| 19 | 07165-14547 | NUT,NYLON | 10001-30219 |
