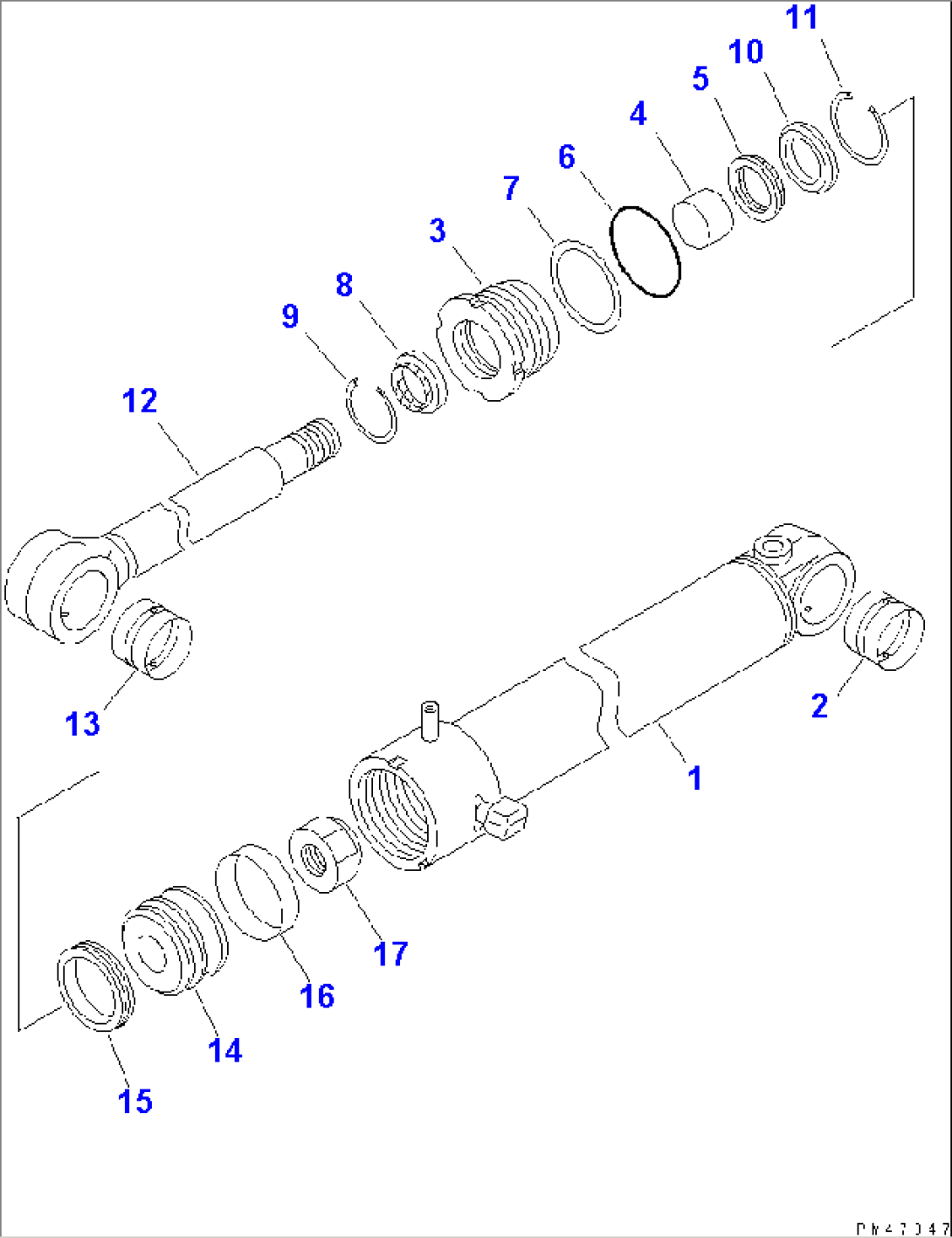

| Item | Part No. | Part Name | Qty | Serial No. |
| 707-00-90040 | CYLINDER ASS'Y | 60001- | ||
| 1 | 707-11-90420 | CYLINDER | 60001- | |
| 2 | 707-76-50240 | BUSHING | 60001- | |
| 3 | 707-29-90011 | HEAD,CYLINDER | 60001- | |
| 4 | 07177-04530 | BUSHING | 60001- | |
| 5 | 707-51-45020 | PACKING,ROD | 60001- | |
| 6 | 07000-12095 | O-RING | 60001- | |
| 7 | 07001-02095 | RING,BACK-UP | 60001- | |
| 8 | 112-63-15370 | SEAL,DUST | 60001- | |
| 9 | 07179-00064 | RING,SNAP | 60001- | |
| 10 | 707-57-45020 | RETAINER | 60001- | |
| 11 | 04065-06525 | RING,SNAP | 60001- | |
| 12 | 707-58-45240 | ROD,PISTON | 60001- | |
| 13 | 707-76-50240 | BUSHING | 60001- | |
| 14 | 707-36-90181 | PISTON | 60001- | |
| 15 | 707-44-90080 | RING,PISTON | 60001- | |
| 16 | 07155-00925 | RING,WEAR | 60001- | |
| 17 | 07165-13336 | NUT | 60001- |
