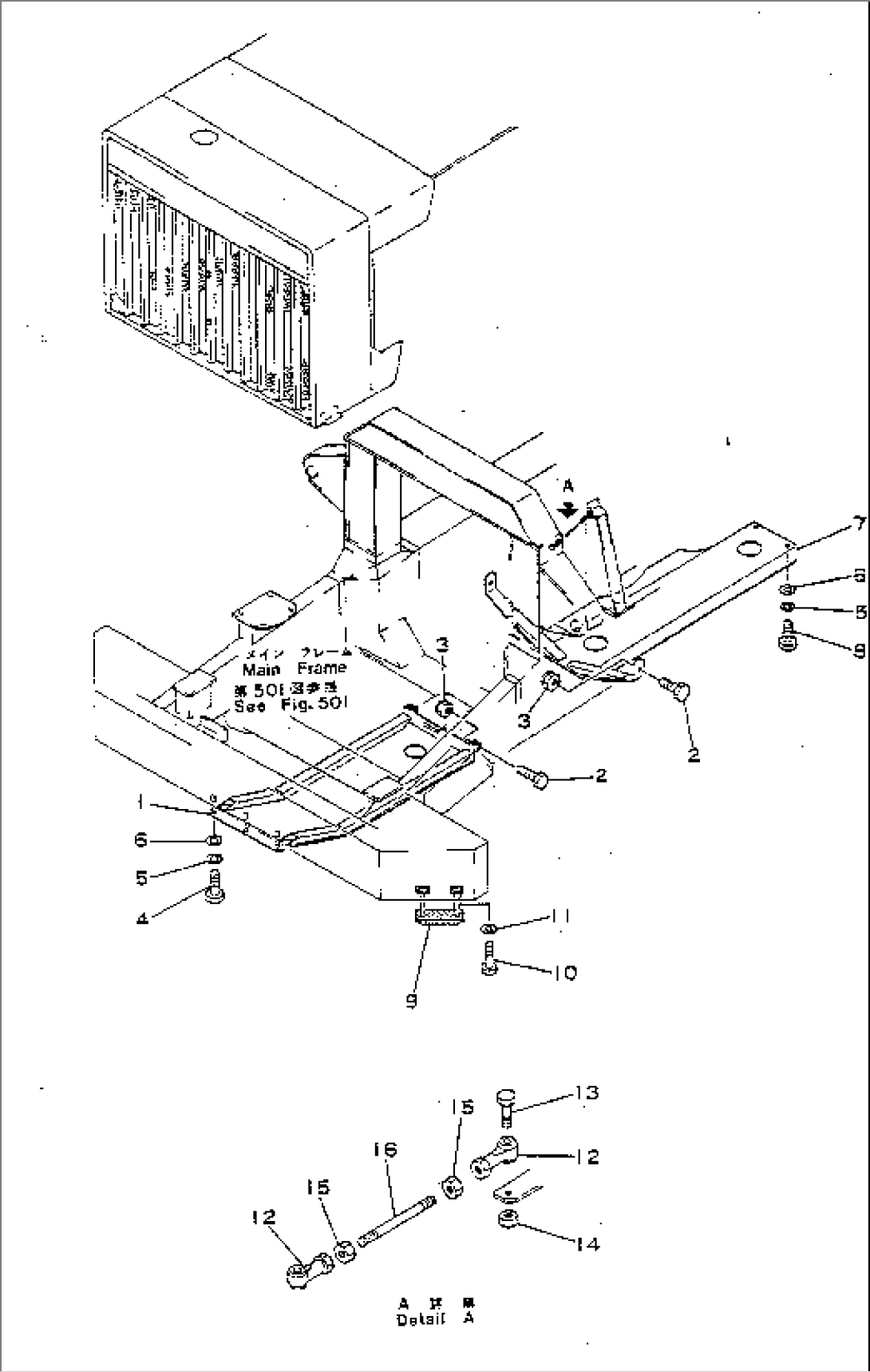

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 568-54-16111 | GUARD | 1002- | |
| 2 | 01010-53085 | BOLT | 1002- | |
| 3 | 07165-13033 | NUT | 1002- | |
| 4 | 01010-52035 | BOLT | 1055- | |
| 4 | 01010-51835 | BOLT | 1002-1054 | |
| 5 | 01602-22060 | WASHER | 1055- | |
| 5 | 01602-21854 | WASHER | 1002-1054 | |
| 6 | 01643-32060 | WASHER | 1055- | |
| 6 | 01643-21845 | WASHER | 1002-1054 | |
| 7 | 568-54-16211 | GUARD | 1002- | |
| 8 | 01010-52040 | BOLT | 1055- | |
| 8 | 01010-51840 | BOLT | 1002-1054 | |
| 9 | 566-54-11372 | STEP | 1023- | |
| 9 | 566-54-11370 | STEP | 1002-1022 | |
| 10 | 01010-51230 | BOLT | 1023- | |
| 10 | 01010-51235 | BOLT | 1002-1022 | |
| 11 | 01602-21236 | WASHER | 1002- | |
| 12 | 281-09-11770 | END | 1002- | |
| 13 | 01090-52075 | BOLT | 1002- | |
| 14 | 01599-02021 | NUT | 1002- | |
| 15 | 01583-12012 | NUT | 1002- | |
| 16 | 566-40-13380 | ROD | 1002- |
