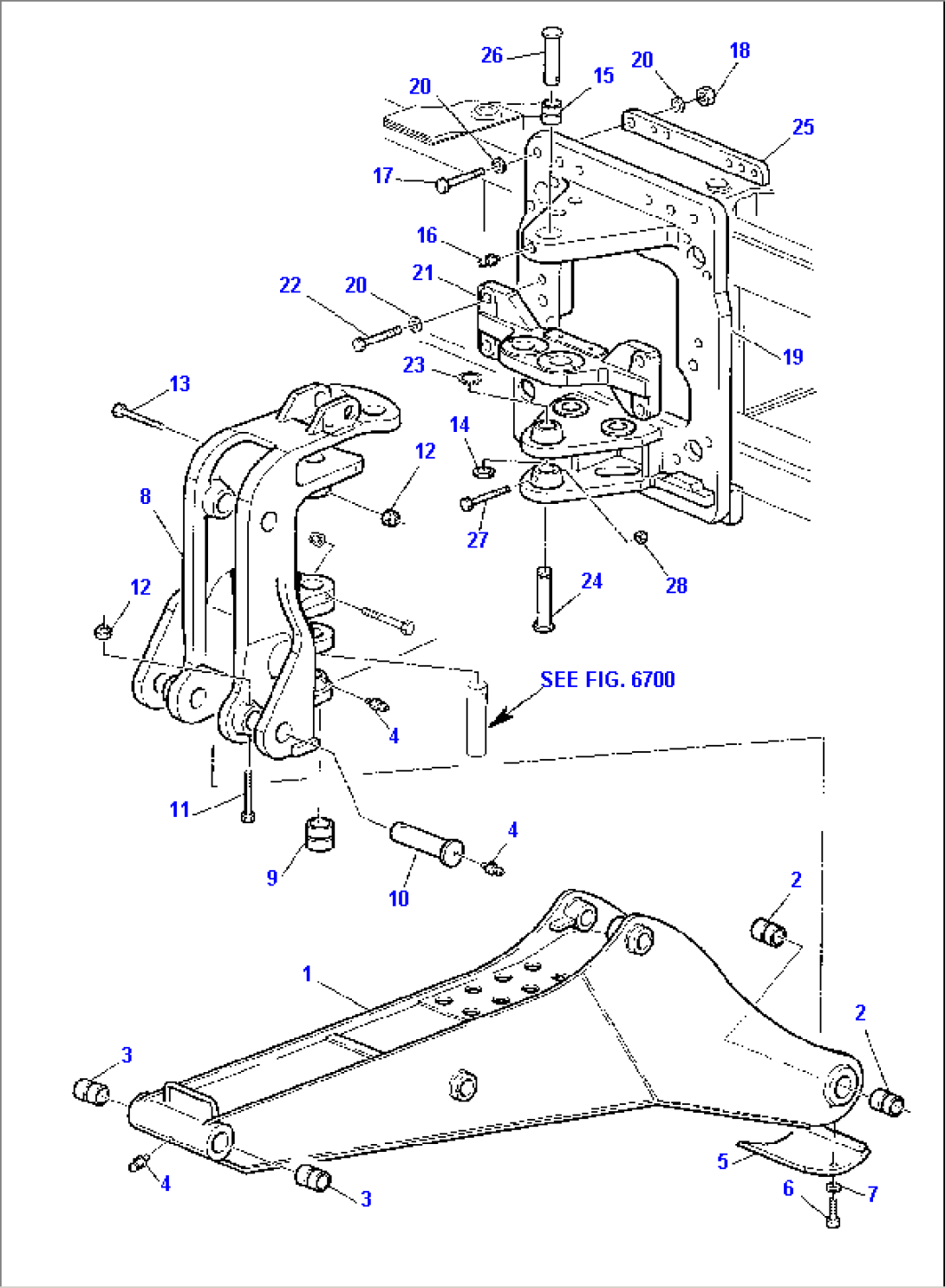

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 312708055 | BOOM | 97SF10281- | |
| 2 | 500210034 | BUSHING | 97SF10281- | |
| 3 | 500212005 | BUSHING | 97SF10281- | |
| 4 | 860010007 | FITTING | 97SF10281- | |
| 5 | 312708053 | PROTECTION | 97SF10281- | |
| 6 | 801015110 | BOLT | 97SF10281- | |
| 7 | 802170002 | WASHER | 97SF10281- | |
| 8 | 312704612 | BRACKET, ASSY | 97SF10281- | |
| 9 | 312704604 | BUSHING | 97SF10281- | |
| 10 | 312704608 | PIN | 97SF10281- | |
| 11 | 801015584 | BOLT | 97SF10281- | |
| 12 | 801880212 | SELF-LOCKING NUT | 97SF10281- | |
| 13 | 801015586 | BOLT | 97SF10281- | |
| 14 | 390606064 | SPACER | 97SF10281- | |
| 15 | 312704603 | BUSHING | 97SF10281- | |
| 16 | 860030004 | FITTING | 97SF10281- | |
| 17 | 801015695 | BOLT | 97SF10281- | |
| 18 | 801920112 | NUT | 97SF10281- | |
| 19 | 312703056 | BRACKET | 97SF10281- | |
| 20 | 802060024 | WASHER | 97SF10281- | |
| 21 | 312703627 | SUPPORT | 97SF10281- | |
| 22 | 801015291 | BOLT | 97SF10281- | |
| 23 | 802270024 | RING SNAP | 97SF10281- | |
| 24 | 312704602 | PIN | 97SF10281- | |
| 25 | 312703608 | PLATE | 97SF10281- | |
| 26 | 390597065 | PIN | 97SF10281- | |
| 27 | 801015586 | BOLT | 97SF10281- | |
| 28 | 801880212 | SELF-LOCKING NUT | 97SF10281- | |
| SEE FIG. 6700 |
