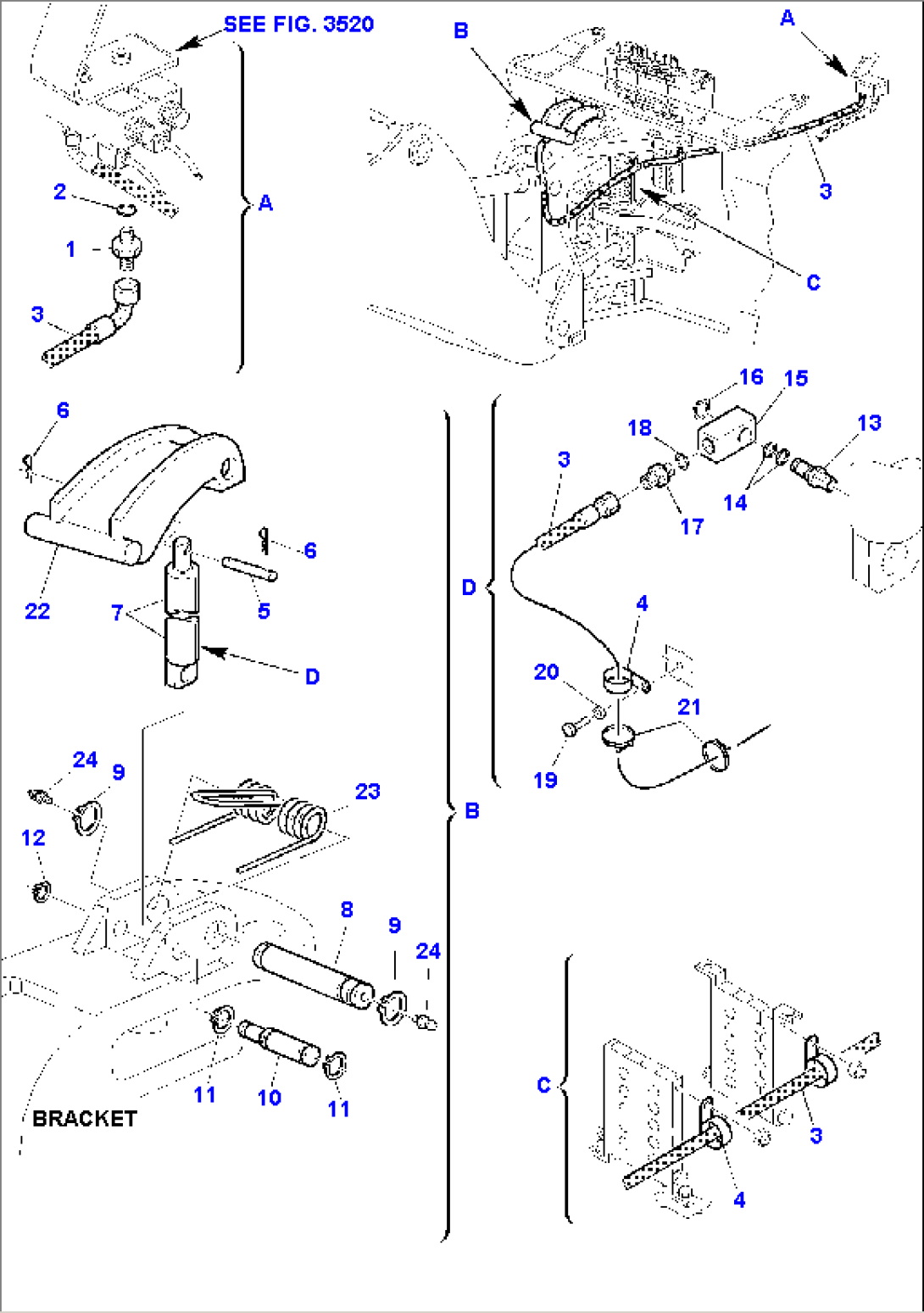

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 500351755 | UNION | 93F23453- | |
| 2 | 855051111 | O-RING | 93F23453- | |
| 3 | 392078001 | HOSE | 93F23453- | |
| 4 | 802660501 | COLLAR | 93F23453- | |
| 5 | 312715630 | PIN | 93F23453- | |
| 6 | 802610040 | COTTER | 93F23453- | |
| 7 | 312715057 | CYLINDER | 93F23453- | |
| 8 | 312715641 | PIN | 93F23453- | |
| 9 | 802250025 | SNAP RING | 93F23453- | |
| 10 | 312715631 | PIN | 93F23453- | |
| 11 | 802250015 | SNAP RING | 93F23453- | |
| 12 | 802250010 | SNAP RING | 93F23453- | |
| 13 | 312715625 | UNION | 93F23453- | |
| 14 | 855021610 | O-RING | 93F23453- | |
| 15 | 312715626 | UNION | 93F23453- | |
| 16 | 802250010 | SNAP RING | 93F23453- | |
| 17 | 500351754 | UNION | 93F23453- | |
| 18 | 855051011 | O-RING | 93F23453- | |
| 19 | 801015086 | BOLT | 93F23453- | |
| 20 | 802170001 | WASHER | 93F23453- | |
| 21 | 885180004 | WRAPPER | 93F23453- | |
| 22 | 312715629 | RETAINER | 93F23453- | |
| 23 | 312715639 | SPRING | 93F23453- | |
| 24 | 860010001 | FITTING | 93F23453- | |
| SEE FIG. 3520 |
