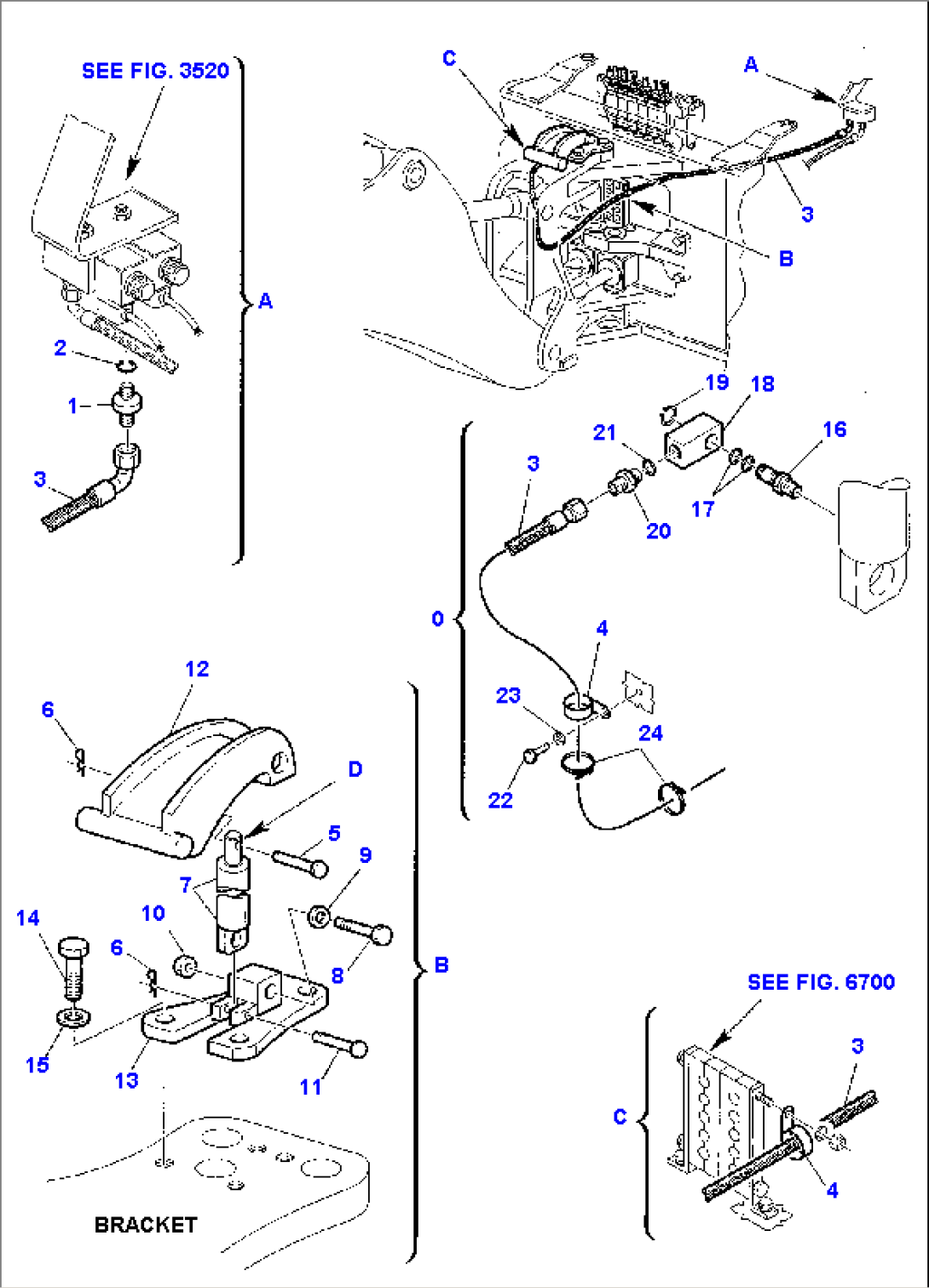

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 500351744 | UNION | 15050001-15050013 | |
| 1 | 500351755 | UNION | 15050014- | |
| 2 | 855051111 | O-RING | 15050001- | |
| 3 | 392078002 | HOSE | 15050001- | |
| 4 | 802660501 | COLLAR | 15050001- | |
| 5 | 390596044 | PIN | 15050001- | |
| 6 | 802610040 | COTTER | 15050001- | |
| 7 | 312715057 | CYLINDER | 15050001- | |
| 8 | 801015693 | BOLT | 15050001- | |
| 9 | 802070024 | WASHER | 15050001- | |
| 10 | 801852424 | SELF-LOCKING NUT | 15050001- | |
| 11 | 390596043 | PIN | 15050001- | |
| 12 | 312715056 | FASTENER | 15050001- | |
| 13 | 312715055 | SUPPORT | 15050001- | |
| 14 | 801015188 | BOLT | 15050001- | |
| 15 | 802170005 | WASHER | 15050001- | |
| 16 | 312715625 | UNION | 15050001- | |
| 17 | 855021610 | O-RING | 15050001- | |
| 18 | 312715626 | UNION | 15050001- | |
| 19 | 802250010 | RING | 15050001- | |
| 20 | 500351754 | UNION | 15050001- | |
| 21 | 855051011 | O-RING | 15050001- | |
| 22 | 801015086 | BOLT | 15050001- | |
| 23 | 802170001 | WASHER | 15050001- | |
| 24 | 885180004 | WRAPPER | 15050001- | |
| SEE FIG. 3520 | ||||
| SEE FIG. 6700 |
