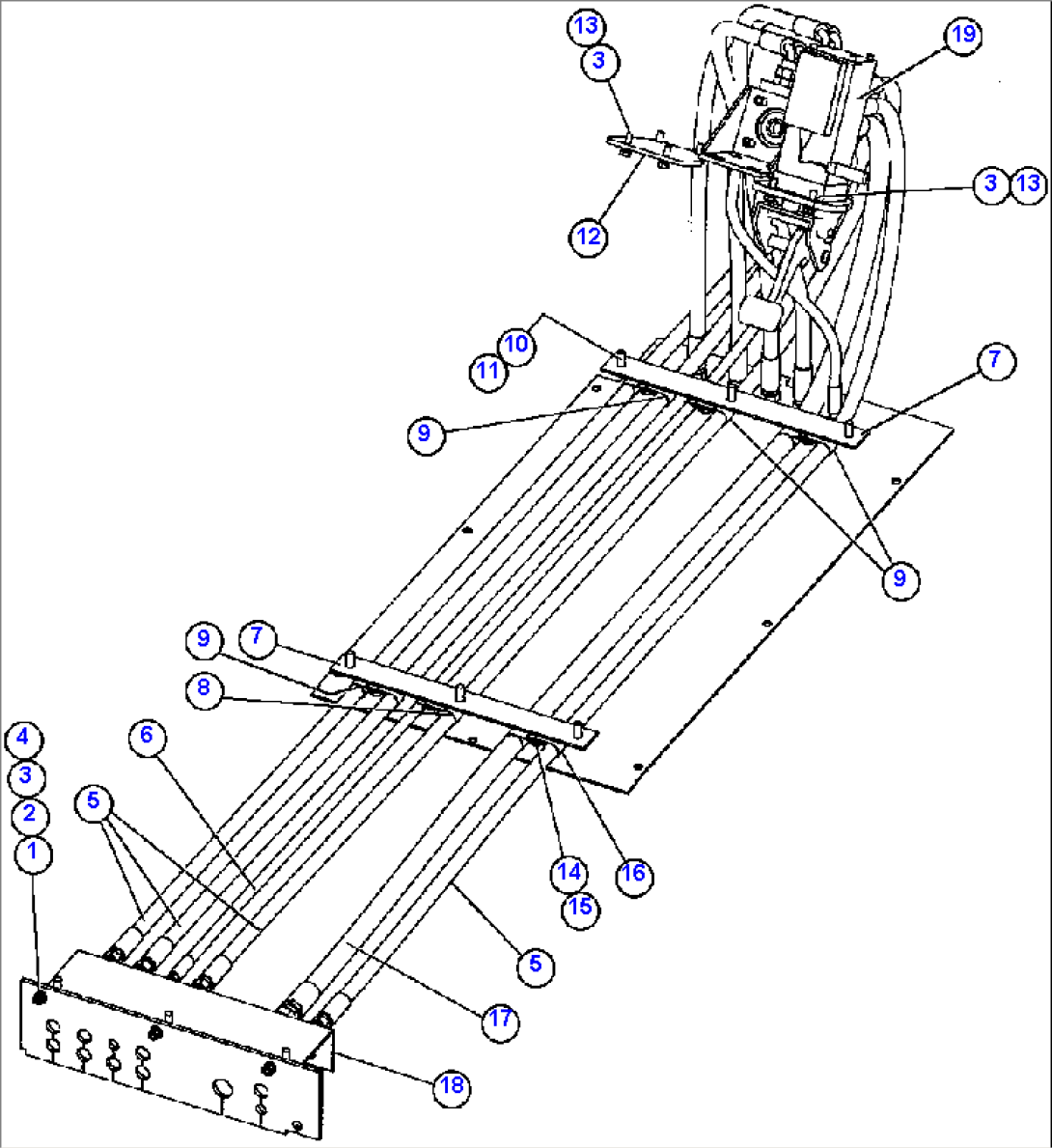

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EF9801 | FLAP, RUBBER | ||
| 2 | MM0460 | FLAT WASHER - M8 | ||
| 3 | MM0470 | LOCKWASHER - M8 | ||
| 4 | MM0177 | NUT - M8 X 1.25 | ||
| 5 | HA7331 | HOSE | ||
| 6 | HA7360 | HOSE | ||
| 7 | EG2245 | CLAMP | ||
| 8 | TG2960 | CLAMP | ||
| 9 | TG2568 | CLAMP | ||
| 10 | MM0605 | CAPSCREW - M10 X 1.50 X 25 | ||
| 11 | MM0471 | LOCKWASHER - M10 | ||
| 12 | EC7875 | PLATE, COVER | ||
| 13 | MM0594 | CAPSCREW - M8 X 1.25 X 25 | ||
| 14 | MM0604 | CAPSCREW - M10 X 1.50 X 20 | ||
| 15 | MM0461 | FLAT WASHER - M10 | ||
| 16 | VN9913 | CLAMP | ||
| 17 | HA7389 | HOSE | ||
| 18 | EF8177 | BRACKET | ||
| 19 | PC0414 | VALVE, BRAKE (SEE INDEX) |
