| Item | Part No. | Part Name | Qty | Serial No. |

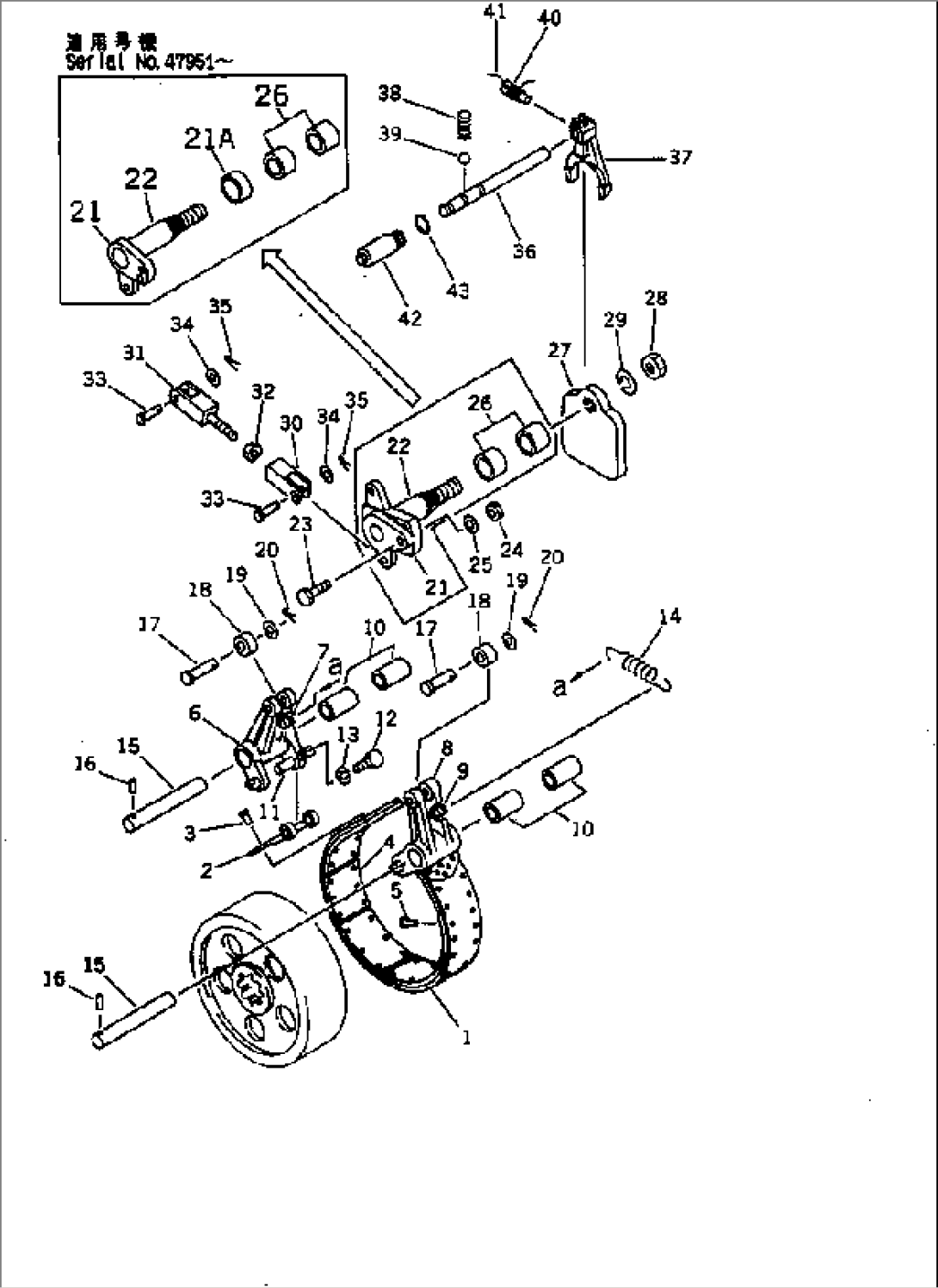

| 150-95-00080 | BRAKE BAND ASS'Y | 45200- | ||
| 1 | 150-95-13210 | BAND,BRAKE | 45200- | |
| 2 | 150-95-13230 | END,BAND | 45200- | |
| 3 | 150-95-13240 | RIVET | 45200- | |
| 4 | 150-95-13220 | LINING,BRAKE | 45200- | |
| 5 | 144-947-2970 | RIVET | 45200- | |
| 6 | 150-95-13251 | CRANK | 45200- | |
| 7 | 150-95-13560 | PIN | 45200- | |
| 8 | 150-95-13260 | CRANK | 45200- | |
| 9 | 150-95-13570 | PIN | 45200- | |
| 10 | 150-95-13290 | BUSHING | 45200- | |
| 11 | 150-95-13272 | PIN | 45200- | |
| 12 | 150-95-13281 | BOLT | 45200- | |
| 13 | 01602-01030 | WASHER,SPRING | 45200- | |
| 14 | 150-95-13580 | SPRING | 45200- | |
| 15 | 150-95-13311 | PIN | 45200- | |
| 16 | 01322-30820 | SCREW,SET | 45200- | |
| 17 | 150-95-13420 | PIN | 45200- | |
| 18 | 150-95-13410 | ROLLER | 45200- | |
| 19 | 150-95-13430 | WASHER | 45200- | |
| 20 | 04050-04025 | PIN,COTTER | 45200- | |
| 21 | 144-947-1731 | CRANK | 47951- | |
| 21 | 144-947-1730 | CRANK | 45200-47950 | |
| 21A | 235-15-12150 | SPACER | 47951- | |
| 22 | 144-947-1710 | SHAFT | 45200- | |
| 23 | 150-95-13542 | BOLT,REAMER | 45200- | |
| 24 | 01580-11613 | NUT | 45200- | |
| 25 | 01602-01648 | WASHER,SPRING | 45200- | |
| 26 | 144-947-1720 | BEARING | 45200- | |
| 27 | 150-95-13550 | CAM | 45200- | |
| 28 | 01580-13024 | NUT | 45200- | |
| 29 | 01601-03075 | WASHER,SPRING | 45200- | |
| 30 | 04210-21664 | YOKE | 45200- | |
| 31 | 150-95-13650 | YOKE | 45200- | |
| 32 | 01582-11613 | NUT | 45200- | |
| 33 | 04205-11645 | PIN | 45200- | |
| 34 | 01641-21626 | WASHER | 45200- | |
| 35 | 04050-04025 | PIN,COTTER | 45200- | |
| 36 | 144-947-1531 | SHAFT | 45200- | |
| 37 | 144-947-1521 | YOKE | 45200- | |
| 38 | 144-947-1980 | SPRING | 45200- | |
| 39 | 04260-00952 | BALL | 45200- | |
| 40 | 170-14-13222 | SCREW | 45200- | |
| 41 | 04059-01632 | WIRE | 45200- | |
| 42 | 144-947-1960 | COVER | 45200- | |
| 43 | 07002-03634 | O-RING | 45200- |
