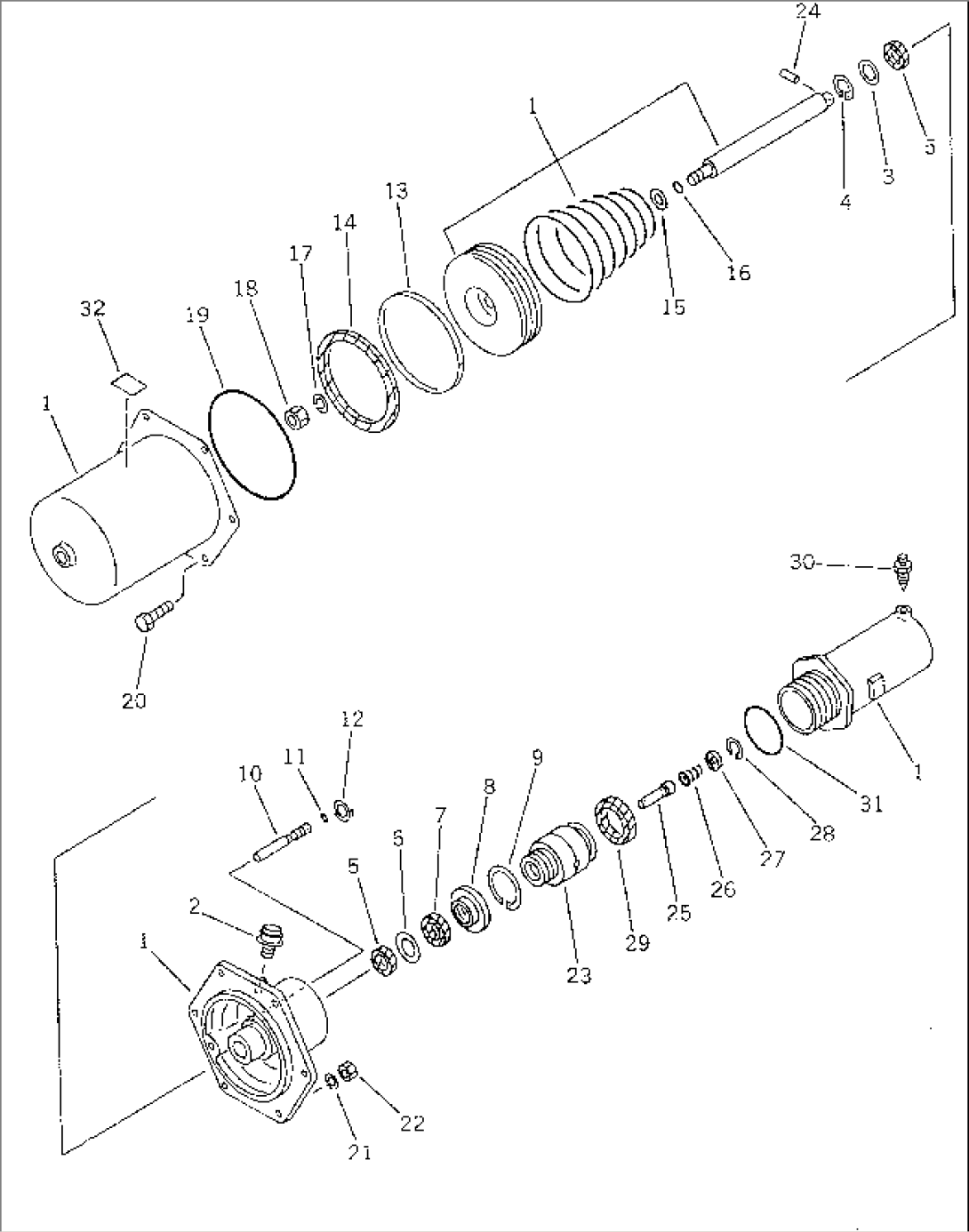

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-35-13200 | BRAKE CHAMBER ASS'Y | A30501- | |
| 2 | 424-35-15580 | BREATHER | A30501- | |
| 3 | 424-35-15590 | RING (K12) | A30501- | |
| 4 | 04065-03515 | RING,SNAP | A30501- | |
| 5 | 424-35-15440 | PACKING (K12) | A30501- | |
| 6 | 424-35-15450 | SEAT (K12) | A30501- | |
| 7 | 424-35-15460 | PACKING (K12) | A30501- | |
| 8 | 424-35-15470 | RING | A30501- | |
| 9 | 04065-06220 | RING,SNAP | A30501- | |
| 10 | 424-35-15611 | ROD | A30501- | |
| 11 | 07000-01007 | O-RING (K12) | A30501- | |
| 12 | 424-35-15630 | RING | A30501- | |
| 13 | 424-35-15420 | RING (K12) | A30501- | |
| 14 | 424-35-15410 | PACKING (K12) | A30501- | |
| 15 | 424-35-15430 | WASHER | A30501- | |
| 16 | 07000-02012 | O-RING (K12) | A30501- | |
| 17 | 01602-21648 | WASHER,SPRING | A30501- | |
| 18 | 01583-11610 | NUT | A30501- | |
| 19 | 424-35-15480 | O-RING (K12) | A30501- | |
| 20 | 01010-51035 | BOLT | A30501- | |
| 21 | 01602-21030 | WASHER,SPRING | A30501- | |
| 22 | 01580-11008 | NUT | A30501- | |
| 23 | 424-35-15490 | PISTON | A30501- | |
| 24 | 424-35-15520 | PIN | A30501- | |
| 25 | 424-35-15530 | VALVE (K12) | A30501- | |
| 26 | 424-35-15540 | SPRING (K12) | A30501- | |
| 27 | 424-35-15550 | SEAT | A30501- | |
| 28 | 04065-02612 | RING | A30501- | |
| 29 | 424-35-15510 | PACKING (K12) | A30501- | |
| 30 | 424-35-15570 | BLEEDER | A30501- | |
| 31 | 424-35-15560 | O-RING (K12) | A30501- | |
| 32 | 424-35-15620 | PLATE, CAUTION | A30501- |
