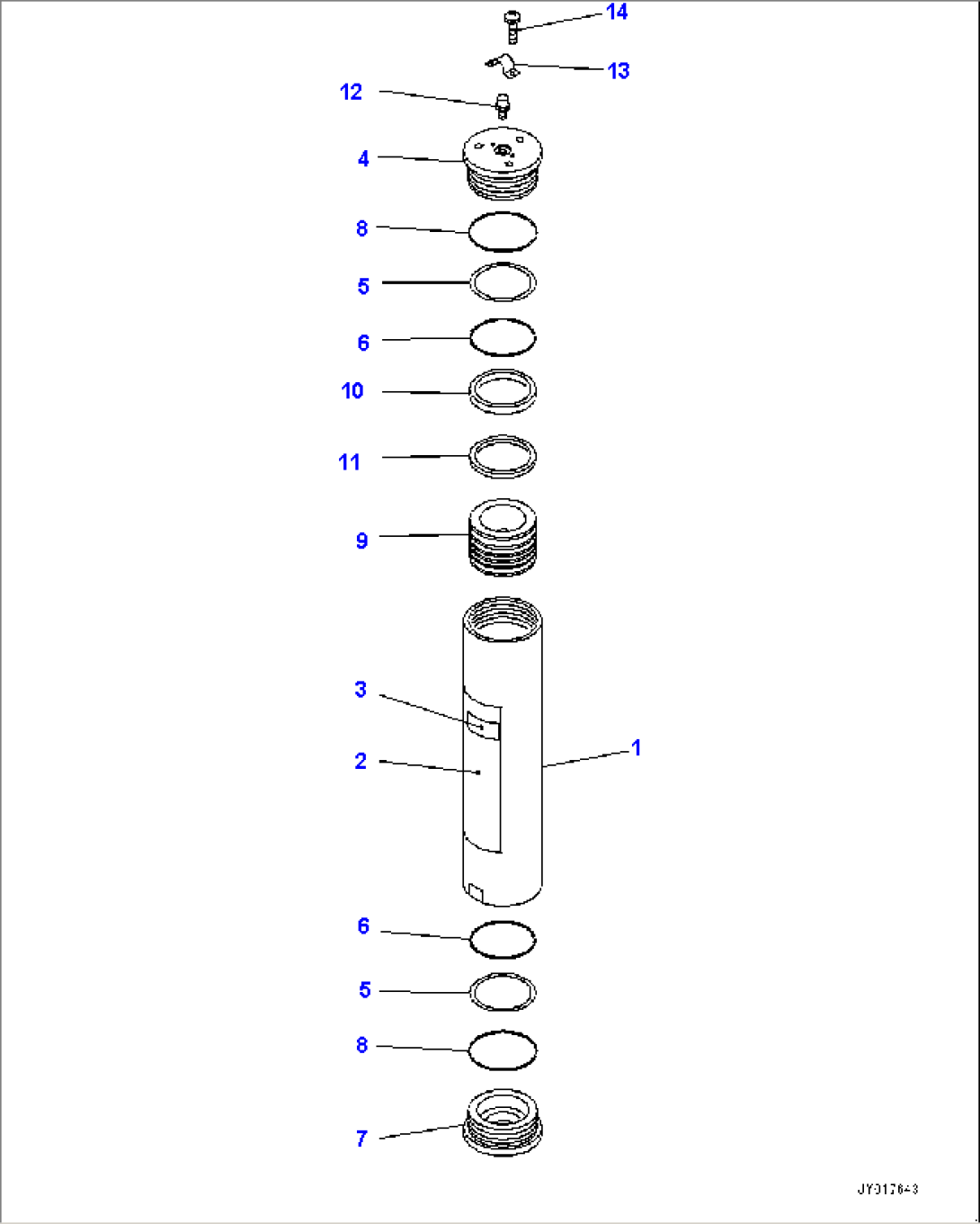

| Item | Part No. | Part Name | Qty | Serial No. |
| 721-32-08190 | Accumulator Assembly, Final Coating | 90216-91258 | ||
| 721-32-10281 | Accumulator Assembly | 90216-91258 | ||
| 1 | 721-10-10320 | Cylinder | 90216-@ | |
| 2 | 721-89-10054 | Plate, Warning, Accumulator | 90764-@ | |
| 3 | 721-89-10100 | Cover | 90764-@ | |
| 4 | 721-29-10090 | Cover, Top | 90216-@ | |
| 5 | 707-35-91020 | Ring, Back-up | 90216-@ | |
| 6 | 07000-15090 | O-ring | 90216-@ | |
| 7 | 721-26-10050 | Cover, End | 90216-@ | |
| 8 | 07000-12100 | O-ring | 90216-@ | |
| 9 | 721-36-10030 | Piston | 90216-@ | |
| 10 | 721-47-12080 | Seal, Piston | 90216-@ | |
| 11 | 721-47-12021 | Seal, Step | 90216-@ | |
| 12 | 721-89-12011 | Valve, Gas | 90216-@ | |
| 13 | 707-88-45770 | Cover | 90216-@ | |
| 14 | 707-88-81480 | Screw | 90216-@ |
