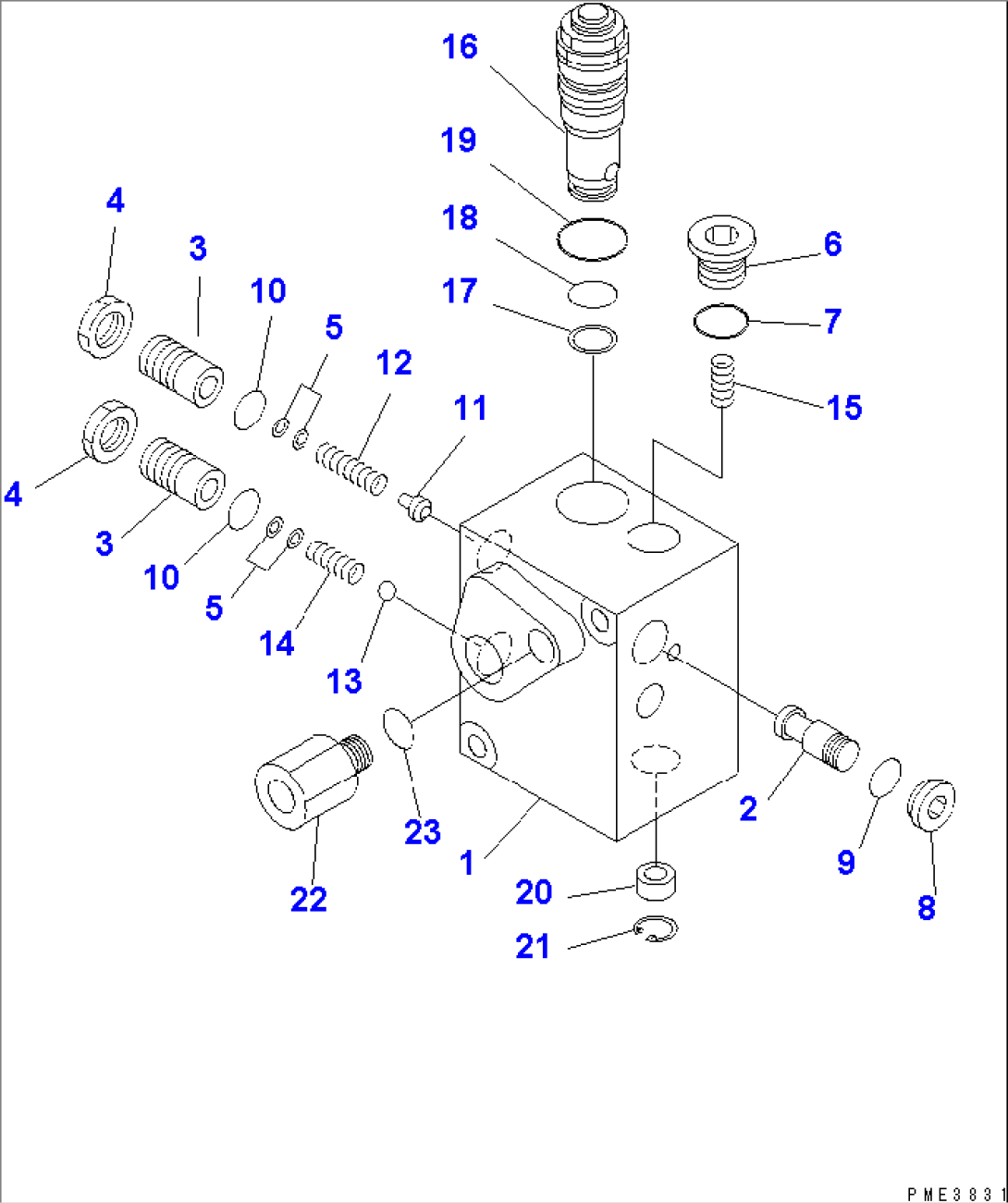

BRAKE CONTROL (ACCUMULATOR CHARGE VALVE) (INNER PATRS)(#51075-)

Item	Part No.	Part Name	Qty	Serial No.
1	421-43-27401	VALVE ASS'Y,ACCUMULATOR CHARGE		51075-
2	419-43-12310	RETAINER		51075-
3	419-43-12330	SCREW,ADJUST		51075-
4	419-43-12340	NUT		51075-
5	419-43-12350	SHIM		51075-
6	419-43-12380	PLUG ASS'Y		51075-
7	07000-F2018	O-RING		51075-
8	419-43-12410	PLUG ASS'Y		51075-
9	07000-22014	O-RING		51075-
10	419-43-12430	O-RING		51075-
11	421-43-27410	RETAINER		51075-
12	421-43-27420	SPRING		51075-
13	421-43-27430	BALL		51075-
14	421-43-27440	SPRING		51075-
15	421-43-27450	SPRING		51075-
16	421-43-27460	VALVE ASS'Y,RELIEF		51075-
17	421-43-27140	RING,BACK-UP		51075-
18	421-43-27470	O-RING		51075-
19	421-43-27480	O-RING		51075-
20	421-43-27520	FILTER		51075-
21	421-43-27530	RING		51075-
22	421-43-27540	BUSHING		51075-
23	07000-12011	O-RING		51075-
