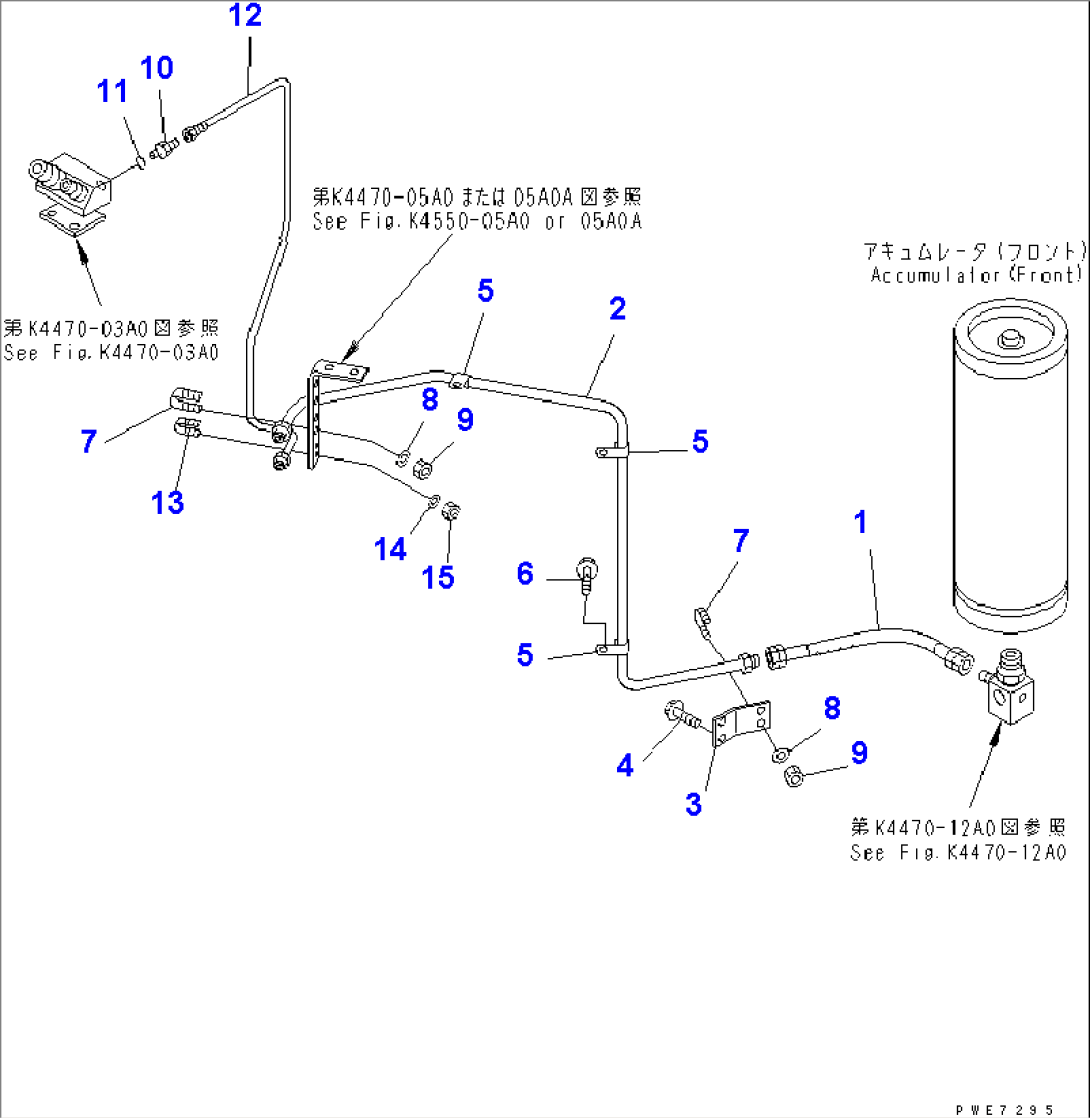

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07108-20303 | HOSE | 50001- | |
| 2 | 426-43-27811 | TUBE | 50001- | |
| 3 | 426-43-27830 | BRACKET | 50001- | |
| 4 | 01435-01016 | BOLT | 50001- | |
| 5 | 04434-51510 | CLIP | 50001- | |
| 6 | 01435-01016 | BOLT | 50001- | |
| 7 | 07283-31529 | CLIP | 50001- | |
| 8 | 01643-30823 | WASHER | 50001- | |
| 9 | 01596-00807 | NUT | 50001- | |
| 10 | 07230-20210 | UNION | 50001- | |
| 11 | 07002-11423 | O-RING | .- | |
| \1\07002-01423 | O-RING | 50001-. | ||
| 12 | 426-43-27821 | TUBE | 50001- | |
| 13 | 07283-31026 | CLIP | 50001- | |
| 14 | 01643-30623 | WASHER | 50001- | |
| 15 | 01596-00606 | NUT | 50001- |
