| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-43-27152 | BRACKET | 50001- | |
| 2 | 01010-82045 | BOLT | 50001- | |
| 3 | 01643-32060 | WASHER | 50001- | |
| 4 | 427-54-24471 | PLATE | 50001- | |
| 5 | 01010-82045 | BOLT | 50001- | |
| 6 | 01643-32060 | WASHER | 50001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa700 3 s/n 50001 up (tbg spec.)
- Operator's compartment and control system
- Brake control (box and mounting parts)(#50001 51074)
Поиск по каталогу

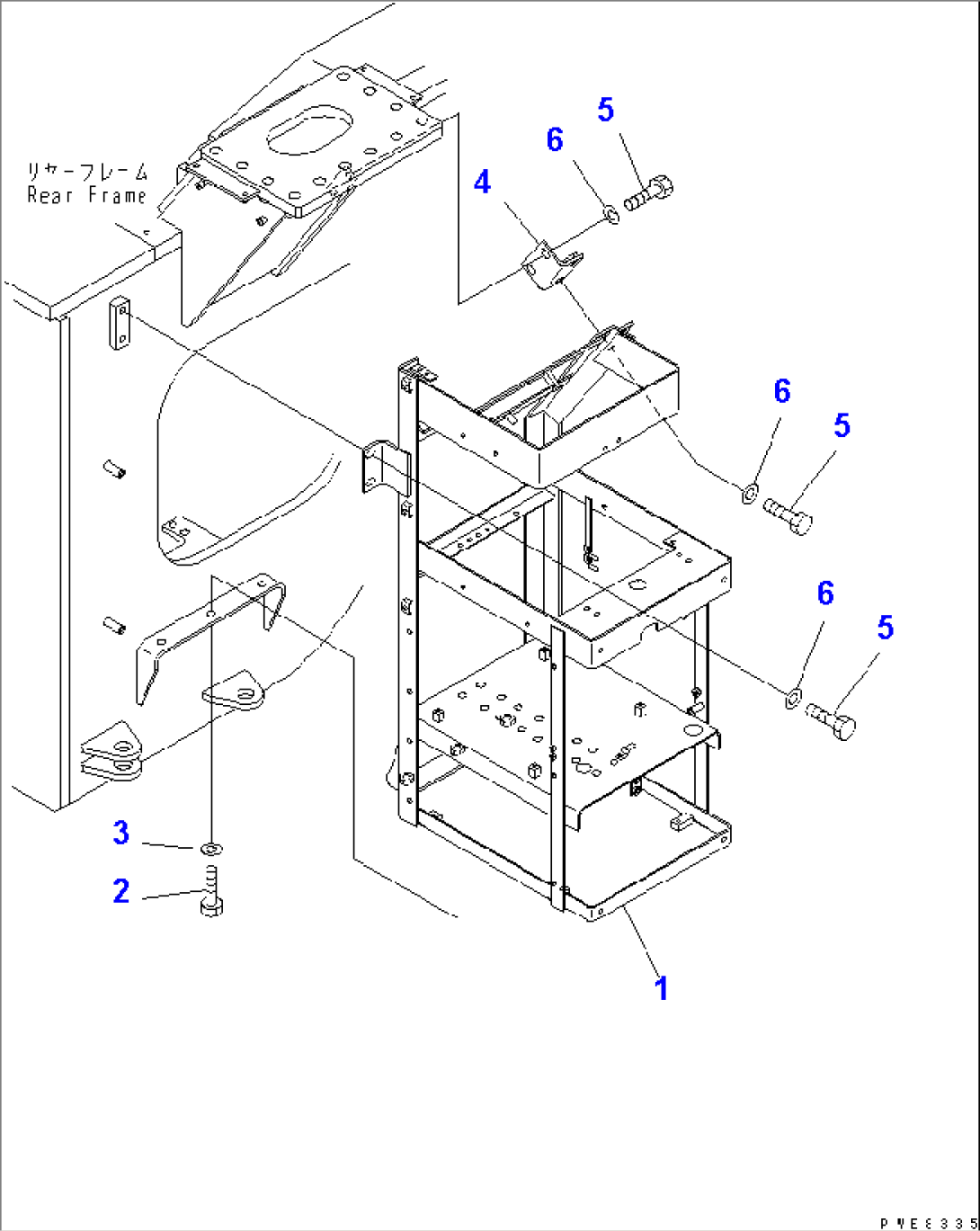

BRAKE CONTROL (BOX AND MOUNTING PARTS)(#50001-51074)
