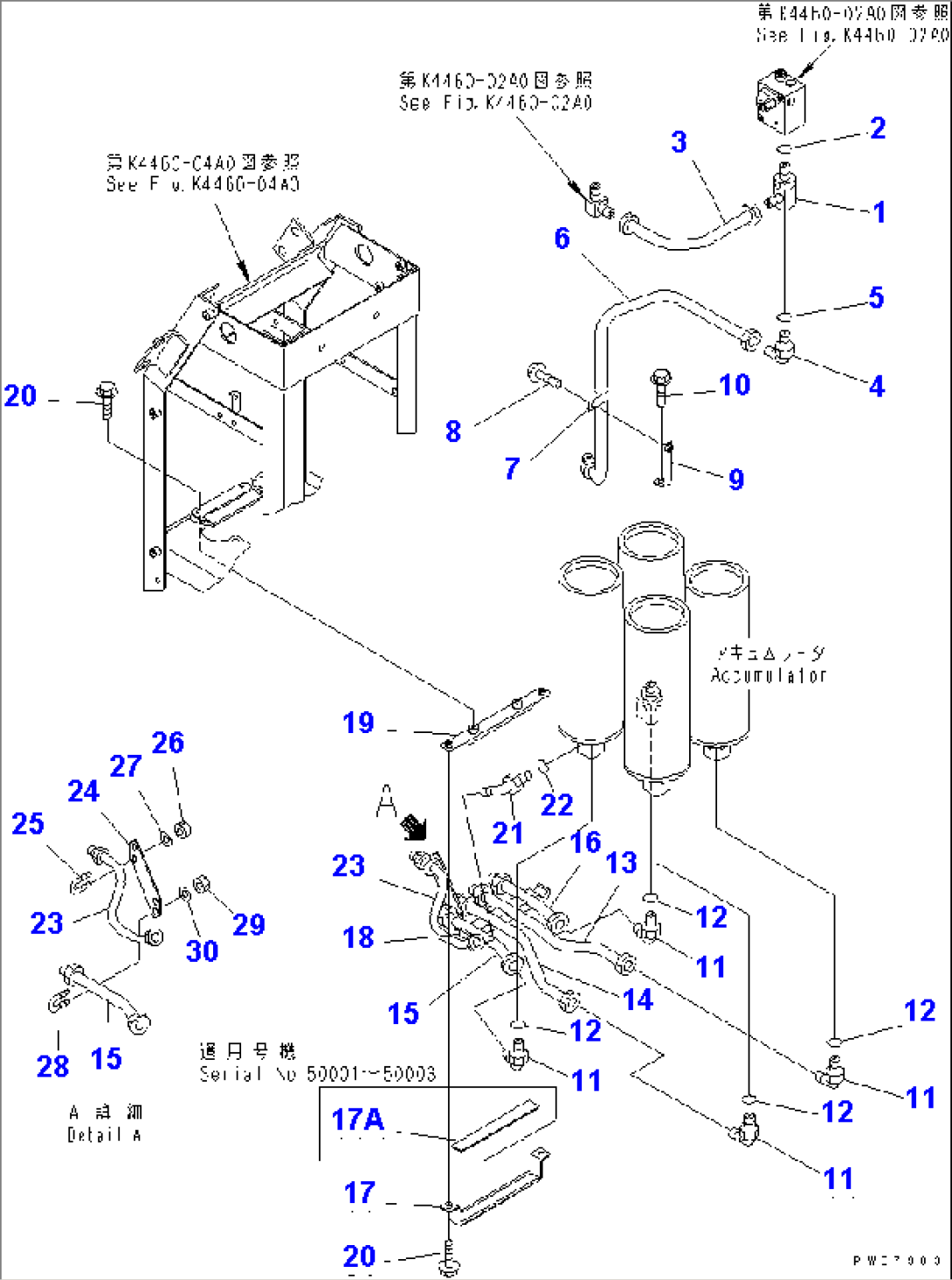

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-43-21220 | TEE | 50001- | |
| 2 | 07002-12034 | O-RING | 50001- | |
| 3 | 427-43-27270 | TUBE | 50001- | |
| 4 | 07235-10628 | ELBOW | 50001- | |
| 5 | 07002-22434 | O-RING | 50001- | |
| 6 | 427-43-27510 | TUBE | 50001- | |
| 7 | 04434-52712 | CLIP | 50001- | |
| 8 | 01435-01016 | BOLT | 50001- | |
| 9 | 427-04-11130 | PLATE | 50001- | |
| 10 | 01435-01016 | BOLT | 50001- | |
| 11 | 07235-10628 | ELBOW | 50001- | |
| 12 | 07002-12434 | O-RING | 50001- | |
| 13 | 427-43-21310 | TUBE | 50001- | |
| 14 | 427-43-21320 | TUBE | 50001- | |
| 15 | 427-43-21330 | TUBE | 50001- | |
| 16 | 427-43-21340 | TUBE | 50001- | |
| 17 | 427-43-27411 | CLAMP | 50004- | |
| 427-43-27410 | CLAMP | 50001-50003 | ||
| 17A | 417-43-23440 | PLATE | 50001-50003 | |
| 18 | 427-43-27420 | CUSHION | 50001- | |
| 19 | 427-43-27440 | CLAMP | 50001- | |
| 20 | 01435-01016 | BOLT | 50001- | |
| 21 | 205-62-67270 | ELBOW | 50001- | |
| 22 | 07002-11423 | O-RING | 50001- | |
| 23 | 427-43-27660 | TUBE | 50001- | |
| 24 | 427-43-27680 | PLATE | 50001- | |
| 25 | 07283-32236 | CLIP | 50001- | |
| 26 | 01597-01009 | NUT | 50001- | |
| 27 | 01643-31032 | WASHER | 50001- | |
| 28 | 07283-32738 | CLIP | 50001- | |
| 29 | 01597-01009 | NUT | 50001- | |
| 30 | 01643-31032 | WASHER | 50001- |
