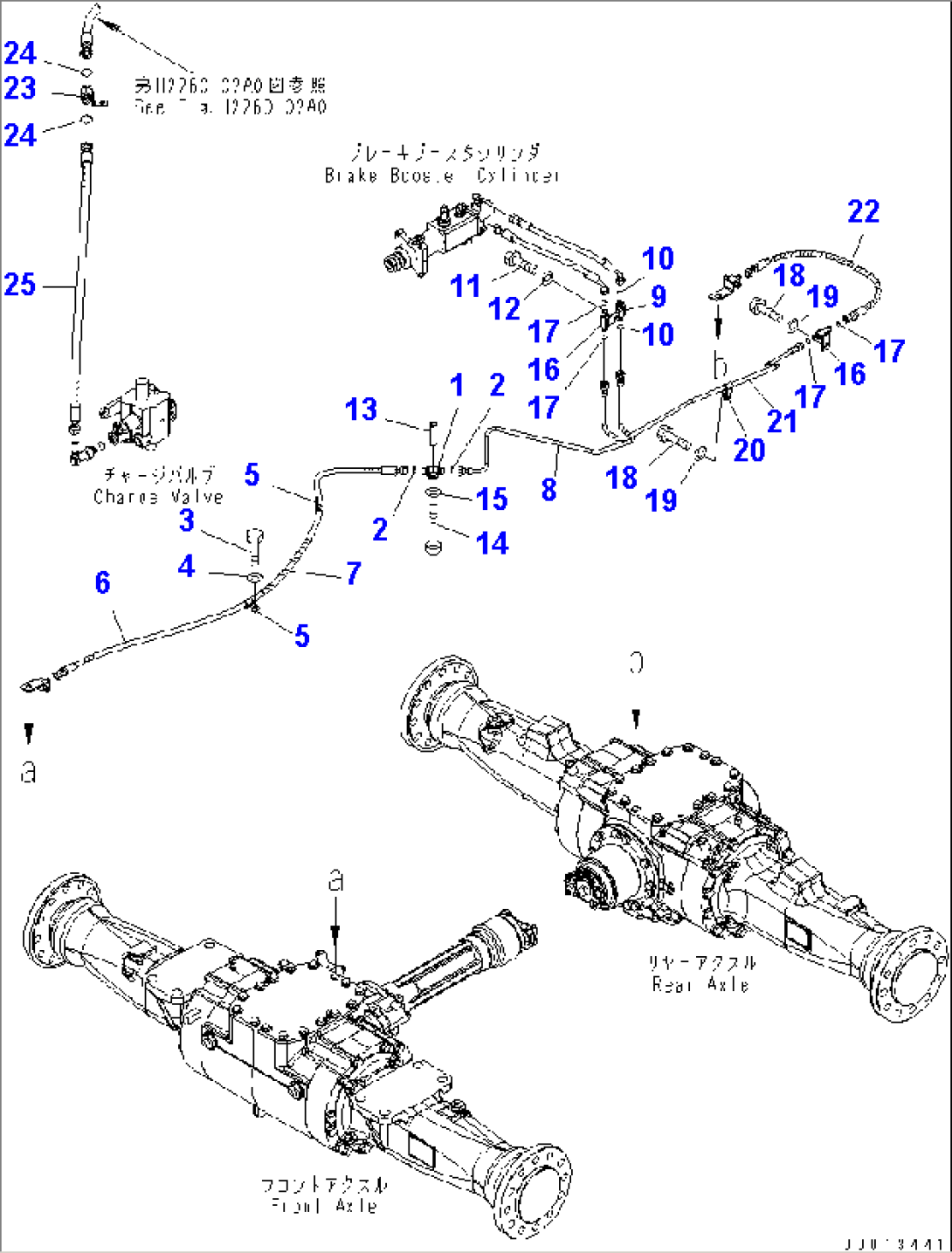

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 416-43-37420 | JOINT | 71991- | |
| 1 | 418-43-37161 | JOINT | 65061-71990 | |
| 2 | 02896-11009 | O-RING | 71991- | |
| 2 | 02896-11008 | O-RING | 65061-71990 | |
| 3 | 01010-81020 | BOLT | 65061- | |
| 4 | 01643-31032 | WASHER | 65061- | |
| 5 | 04434-51610 | CLIP | 71991- | |
| 5 | 04434-51210 | CLIP | 65061-71990 | |
| 6 | 416-43-37593 | HOSE | 71991- | |
| 6 | 416-43-37592 | HOSE | 65061-71990 | |
| 7 | 08210-01204 | SPIRAL TUBE | 65061-71990 | |
| 8 | 416-43-37585 | TUBE | 71991- | |
| 8 | 416-43-37584 | TUBE | 65061-71990 | |
| 9 | 416-43-37420 | JOINT | 71991- | |
| 9 | 418-43-37161 | JOINT | 65061-71990 | |
| 10 | 02896-11009 | O-RING | 71991- | |
| 10 | 02896-11008 | O-RING | 65061-71990 | |
| 11 | 01010-81025 | BOLT | 65061- | |
| 12 | 01643-31032 | WASHER | 65061- | |
| 13 | 417-62-23690 | SPACER | 65061- | |
| 14 | 01010-81080 | BOLT | 65061- | |
| 15 | 01643-31032 | WASHER | 65061- | |
| 16 | 416-43-37420 | JOINT | 71991- | |
| 16 | 418-43-37161 | JOINT | 65061-71990 | |
| 17 | 02896-11009 | O-RING | 71991- | |
| 17 | 02896-11008 | O-RING | 65061-71990 | |
| 18 | 01010-81020 | BOLT | 65061- | |
| 19 | 01643-31032 | WASHER | 65061- | |
| 20 | 04434-51510 | CLIP | 71991- | |
| 20 | 04434-51010 | CLIP | 65061-71990 | |
| 21 | 416-43-37562 | TUBE | 71991- | |
| 21 | 416-43-37561 | TUBE | 65061-71990 | |
| 22 | 418-43-37371 | HOSE | 71991- | |
| 22 | 418-43-37370 | HOSE | 65061-71990 | |
| 23 | 416-43-37390 | JOINT | 65061- | |
| 24 | 02896-11012 | O-RING | 65061- | |
| 25 | 02765-B04A8 | HOSE | 65061- |
