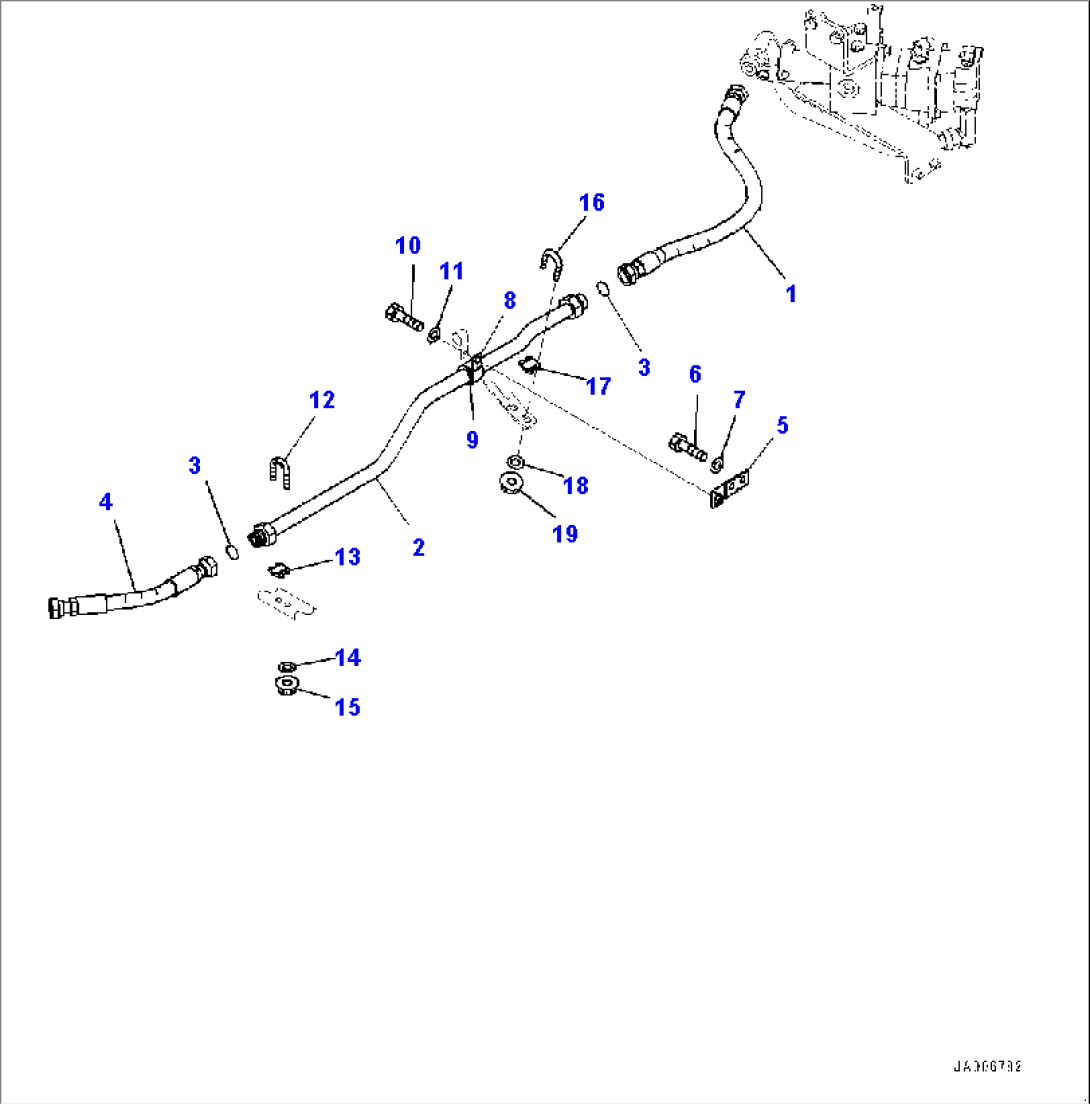

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-U44-4760 | Hose | 90216-@ | |
| 2 | 421-U44-4440 | Tube | 90216-@ | |
| 3 | 02896-21018 | O-ring | 90216-@ | |
| 4 | 421-U45-4520 | Hose | 91411-@ | |
| 4 | 02762-006A3 | Hose, Face Seal Type | 90216-91410 | |
| 5 | 421-U44-4420 | Bracket | 90216-@ | |
| 6 | 01010-D1025 | Bolt | 90216-@ | |
| 7 | 01643-71032 | Washer | 90216-@ | |
| 8 | 04434-53411 | Clip | 90216-@ | |
| 9 | 07095-20627 | Cushion | 90216-@ | |
| 10 | 01010-81025 | Bolt | 90216-@ | |
| 11 | 01643-31032 | Washer | 90216-@ | |
| 12 | 07283-32738 | Clip, Pipe | 90216-@ | |
| 13 | 07283-52737 | Seat | 90216-@ | |
| 14 | 01643-31032 | Washer | 90216-@ | |
| 15 | 01597-01009 | Nut | 90216-@ | |
| 16 | 07283-32738 | Clip, Pipe | 90216-@ | |
| 17 | 07283-52737 | Seat | 90216-@ | |
| 18 | 01643-31032 | Washer | 90216-@ | |
| 19 | 01597-01009 | Nut | 90216-@ |
