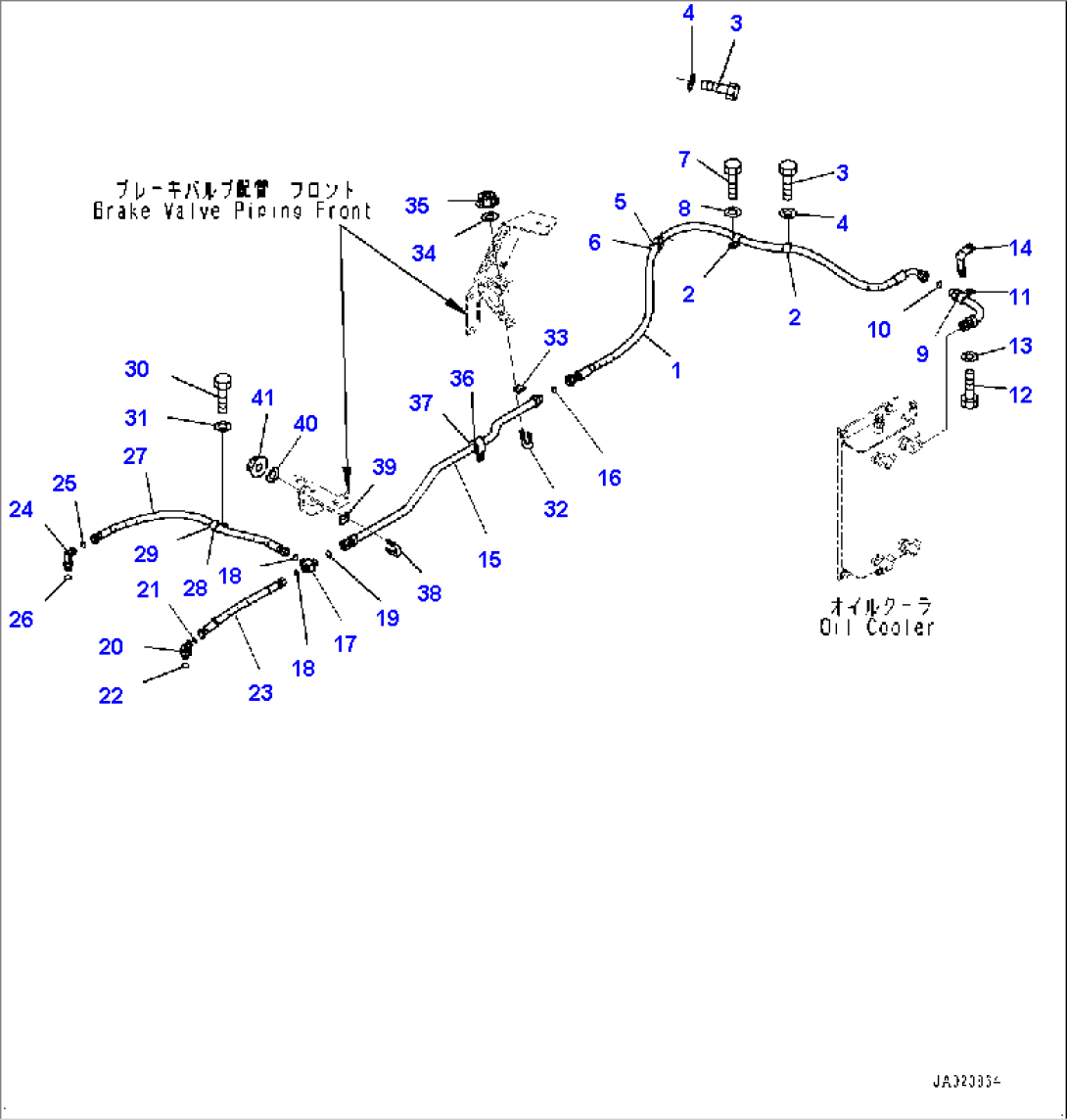

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-U44-4750 | Hose | 90216- | |
| 2 | 04434-51910 | Clip | 90216- | |
| 3 | 01010-81025 | Bolt | 90216- | |
| 4 | 01643-31032 | Washer | 90216- | |
| 5 | 04434-52711 | Clip | 90216- | |
| 6 | 07095-20420 | Cushion | 90216- | |
| 7 | 01010-81025 | Bolt | 90216- | |
| 8 | 01643-31032 | Washer | 90216- | |
| 9 | 421-U45-4110 | Tube | 90216- | |
| 10 | 02896-21012 | O-ring | 90216- | |
| 11 | 04434-52110 | Clip | 90216- | |
| 12 | 01010-81020 | Bolt | 90216- | |
| 13 | 01643-31032 | Washer | 90216- | |
| 14 | 421-U44-4550 | Bracket | 90216- | |
| 15 | 421-U44-4430 | Tube | 90216- | |
| 16 | 02896-21012 | O-ring | 90216- | |
| 17 | 421-U44-3820 | Tee | 90216- | |
| 18 | 02896-21009 | O-ring | 90216- | |
| 19 | 02896-21012 | O-ring | 90216- | |
| 20 | 20U-62-41860 | Elbow | 90216- | |
| 21 | 02896-21009 | O-ring | 90216- | |
| 22 | 07002-21823 | O-ring | 90216- | |
| 23 | 02762-00303 | Hose, Face Seal Type | 90216- | |
| 24 | 02782-1031B | Elbow | 90216- | |
| 25 | 02896-21009 | O-ring | 90216- | |
| 26 | 07002-21823 | O-ring | 90216- | |
| 27 | 421-U44-4460 | Hose | 90216- | |
| 28 | 04434-52110 | Clip | 90216- | |
| 29 | 07095-20314 | Cushion | 90216- | |
| 30 | 01010-81020 | Bolt | 90216- | |
| 31 | 01643-31032 | Washer | 90216- | |
| 32 | 07283-32236 | Clip, Pipe | 90216- | |
| 33 | 07283-52232 | Seat | 90216- | |
| 34 | 01643-31032 | Washer | 90216- | |
| 35 | 01597-01009 | Nut | 90216- | |
| 36 | 04434-53211 | Clip | 90216- | |
| 37 | 07095-20522 | Cushion | 90216- | |
| 38 | 07283-32236 | Clip, Pipe | 90216- | |
| 39 | 07283-52232 | Seat | 90216- | |
| 40 | 01643-31032 | Washer | 90216- | |
| 41 | 01597-01009 | Nut | 90216- |
