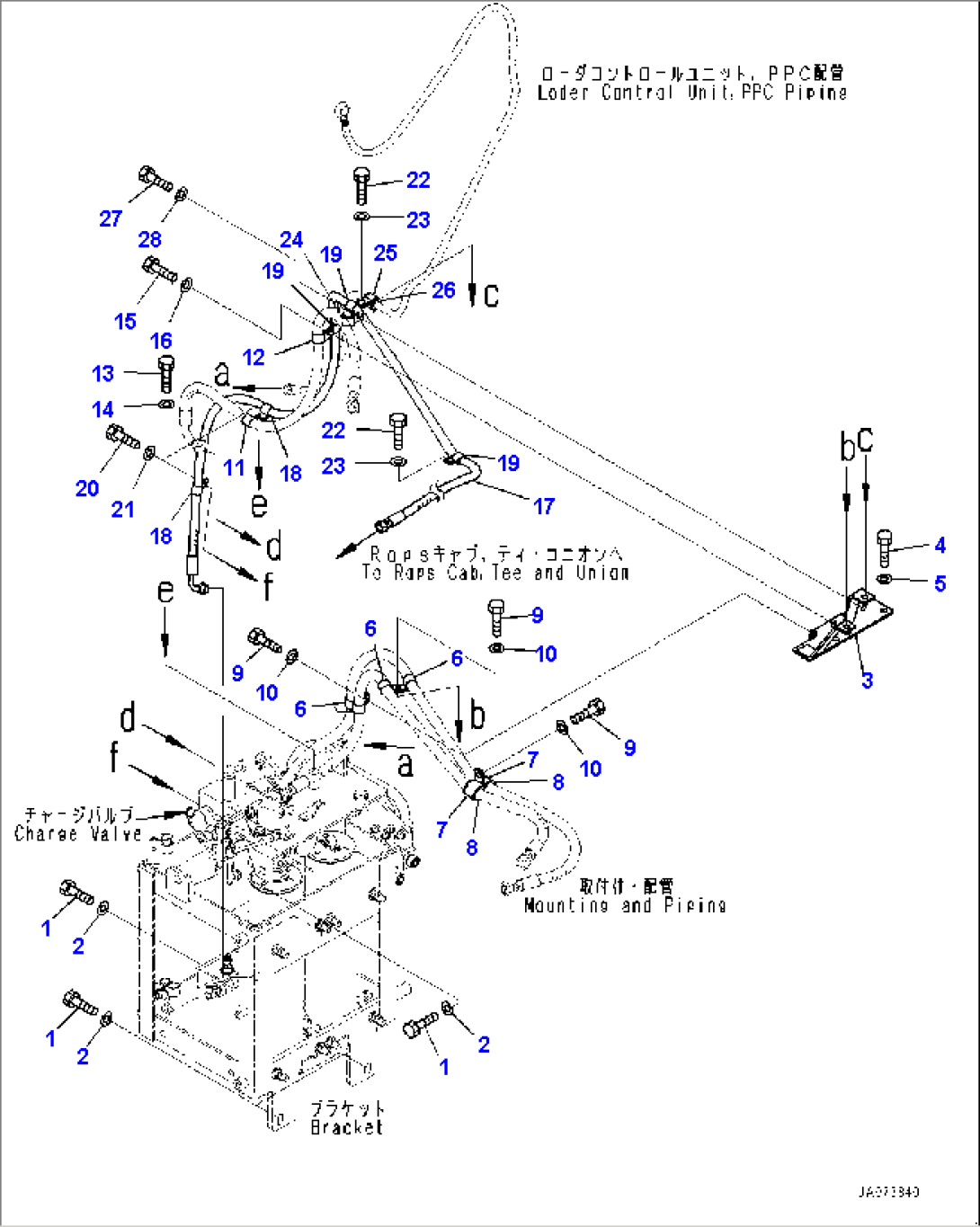

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81435 | Bolt | 90216- | |
| 2 | 01643-31445 | Washer, Flat | 90216- | |
| 3 | 421-43-47890 | Bracket | 90216- | |
| 4 | 01010-81020 | Bolt | 90216- | |
| 5 | 01643-31032 | Washer | 90216- | |
| 6 | 04434-51910 | Clip | 90216- | |
| 7 | 04434-52711 | Clip | 90216- | |
| 8 | 07095-20419 | Cushion | 90216- | |
| 9 | 01010-81025 | Bolt | 90216- | |
| 10 | 01643-31032 | Washer | 90216- | |
| 11 | 04434-51810 | Clip | 90216- | |
| 12 | 04434-51810 | Clip | 90216- | |
| 13 | 01010-81025 | Bolt | 90216- | |
| 14 | 01643-31032 | Washer | 90216- | |
| 15 | 01010-81025 | Bolt | 90216- | |
| 16 | 01643-31032 | Washer | 90216- | |
| 17 | 421-S33-4350 | Hose | 90216- | |
| 18 | 04434-51510 | Clip | 90216- | |
| 19 | 04434-51510 | Clip | 90216- | |
| 20 | 01010-81025 | Bolt | 90216- | |
| 21 | 01643-31032 | Washer | 90216- | |
| 22 | 01010-81025 | Bolt | 90216- | |
| 23 | 01643-31032 | Washer | 90216- | |
| 24 | 04434-51510 | Clip | 90216- | |
| 25 | 04434-52112 | Clip | 90216- | |
| 26 | 07095-20314 | Cushion | 90216- | |
| 27 | 01010-81025 | Bolt | 90216- | |
| 28 | 01643-31032 | Washer | 90216- |
