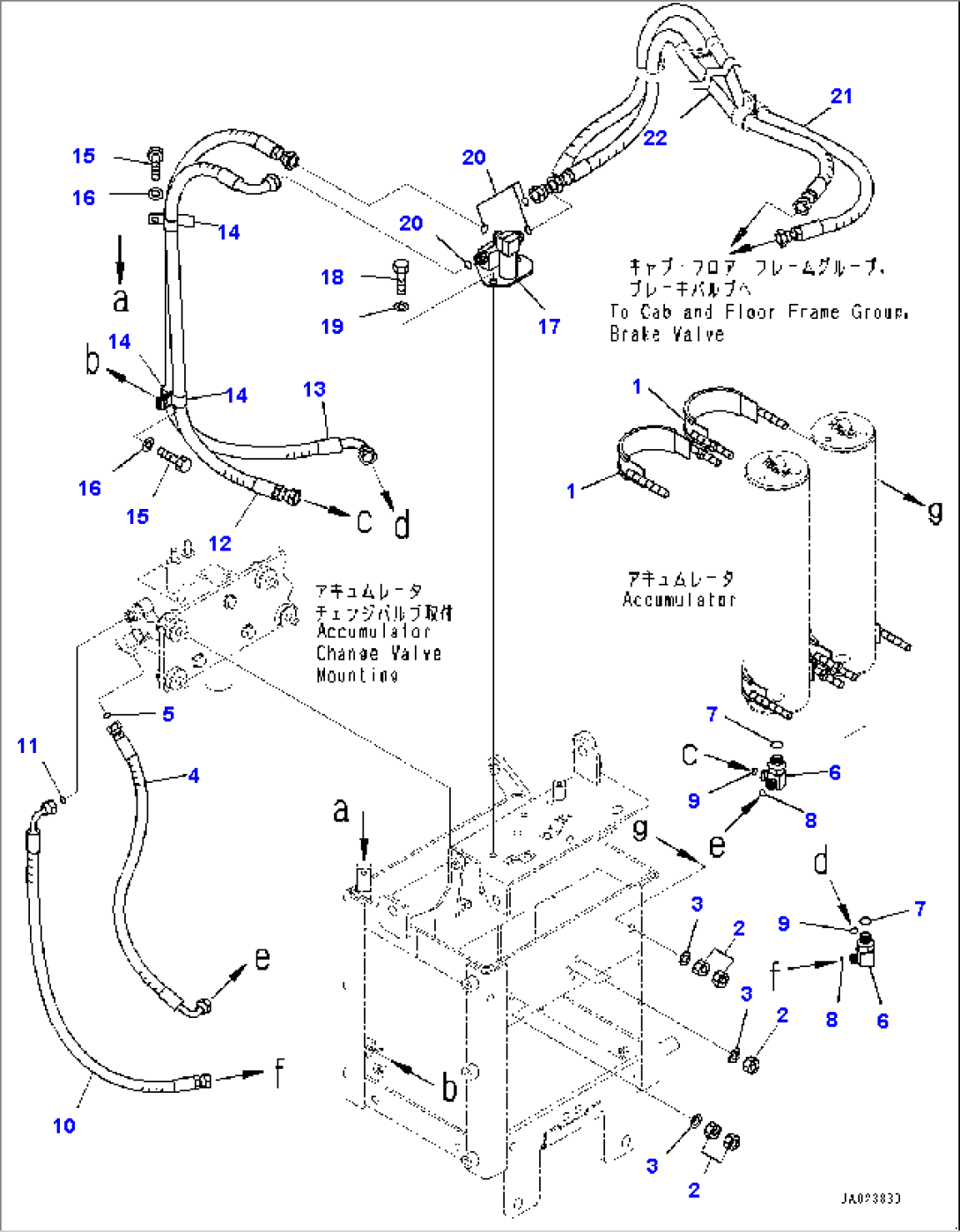

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-43-22360 | Band | 90216- | |
| 2 | 421-40-12440 | Nut | 90216- | |
| 3 | 01643-31232 | Washer | 90216- | |
| 4 | 421-43-47810 | Hose | 90216- | |
| 5 | 02896-11009 | O-ring | 90216- | |
| 6 | 423-43-31350 | Elbow | 90216- | |
| 7 | 07002-12034 | O-ring | 90216- | |
| 8 | 02896-11009 | O-ring | 90216- | |
| 9 | 02896-11012 | O-ring | 90216- | |
| 10 | 421-43-47770 | Hose | 90216- | |
| 11 | 02896-11009 | O-ring | 90216- | |
| 12 | 421-43-47730 | Hose | 90216- | |
| 13 | 421-43-47710 | Hose | 90216- | |
| 14 | 04434-52110 | Clip | 90216- | |
| 15 | 01010-81025 | Bolt | 90216- | |
| 16 | 01643-31032 | Washer | 90216- | |
| 17 | 421-43-48340 | Block | 90216- | |
| 18 | 01010-81025 | Bolt | 90216- | |
| 19 | 01643-31032 | Washer | 90216- | |
| 20 | 02896-11012 | O-ring | 90216- | |
| 21 | 421-43-47740 | Hose | 90216- | |
| 22 | 421-43-47720 | Hose | 90216- |
