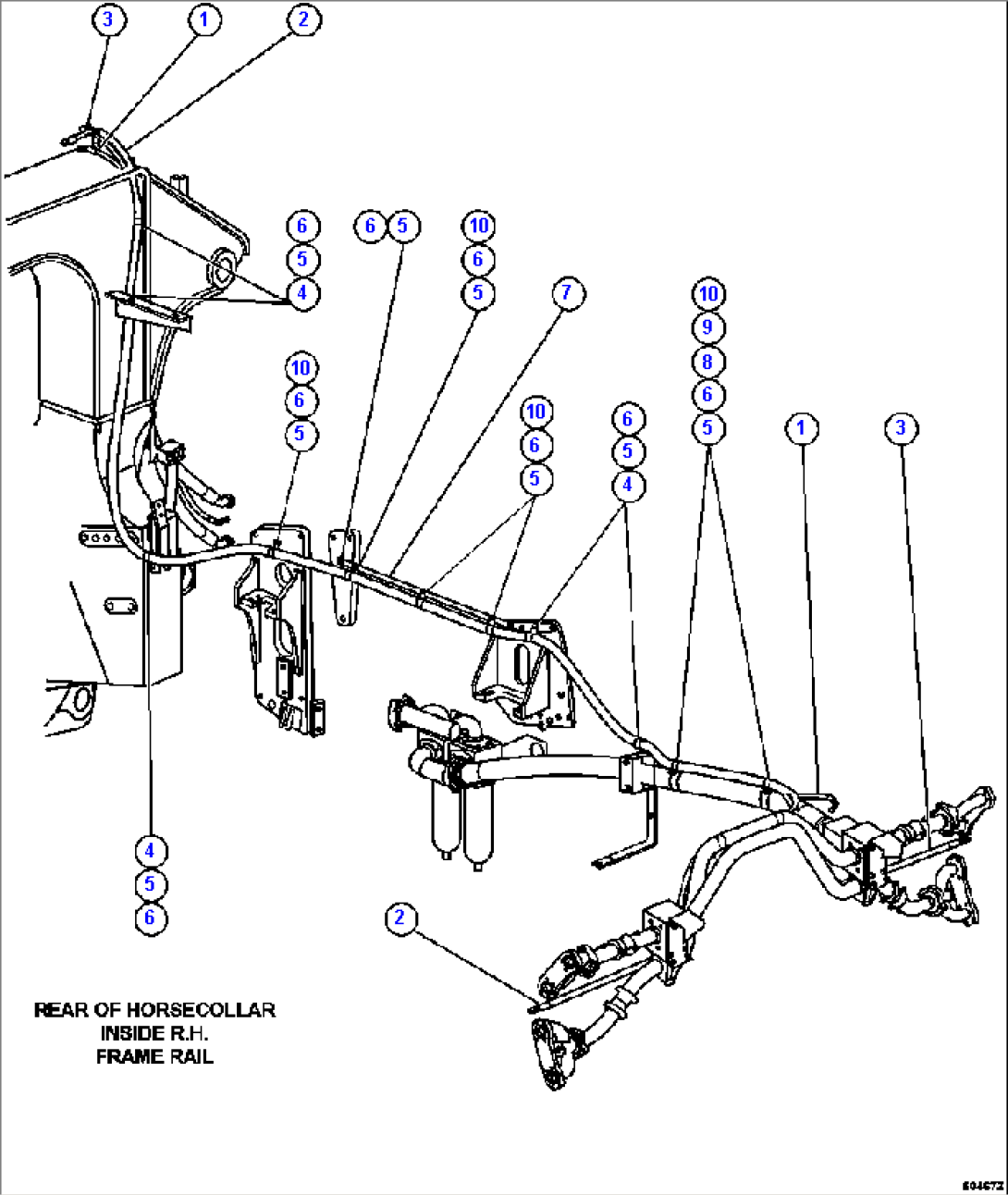

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | HA7069 | HOSE | ||
| 2 | HA7721 | HOSE | ||
| 3 | HA7366 | HOSE | ||
| 4 | 26613R1 | CLAMP | ||
| 5 | MM0604 | CAPSCREW - M10 X 1.50 X 20 | ||
| 6 | 01643-31032 | FLAT WASHER - M10 | ||
| 7 | EG3526 | BAR, FLAT | ||
| 8 | WB1055 | CLAMP, VINYL - 3 1/2" I.D. | ||
| 9 | MM0693 | NUT, LOCK - M10 X 1.50 | ||
| 10 | VL9602 | CLAMP, VINYL - 2" I.D. | ||
| NS|11 | NOTE: NS = NOT SHOWN | |||
| NS|12 | EK9036 | SLEEVE, PLASTIC SPIRAL |
