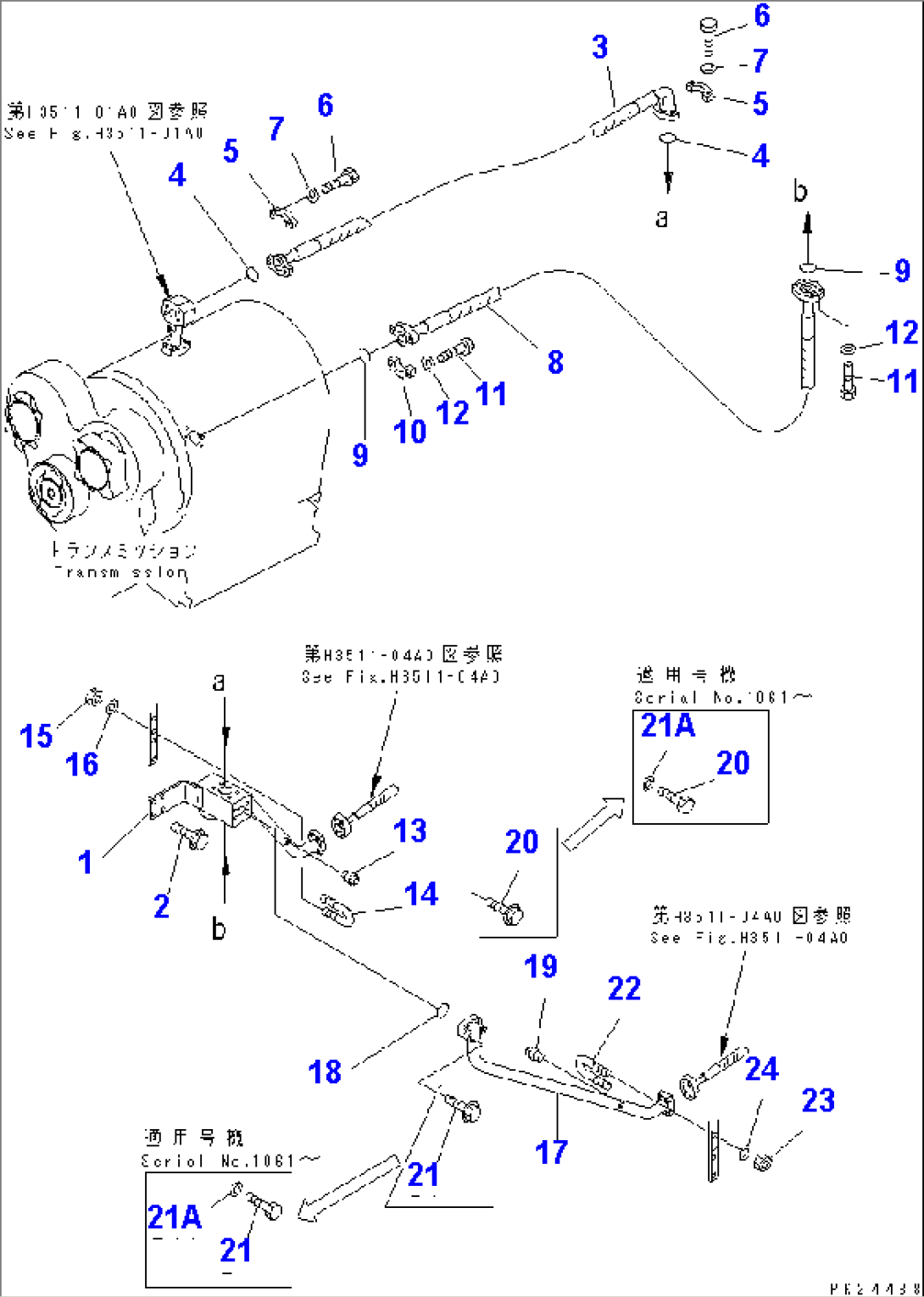

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-61-72171 | TUBE | 1001- | |
| 2 | 01435-01225 | BOLT | 1001- | |
| 3 | 07298-01409 | HOSE | 1001- | |
| 4 | 07000-F3048 | O-RING | 1001- | |
| 5 | 07371-31465 | FLANGE | 1001- | |
| 6 | 07372-21240 | BOLT | 1001- | |
| 7 | 01643-51232 | WASHER | 1001- | |
| 8 | 07296-01411 | HOSE | 1201- | |
| 07296-41411 | HOSE | 1001-1200 | ||
| 9 | 07000-F3048 | O-RING | 1001- | |
| 10 | 07371-31465 | FLANGE | 1001- | |
| 11 | 07372-21240 | BOLT | 1001- | |
| 12 | 01643-51232 | WASHER | 1001- | |
| 13 | 07042-30108 | PLUG | 1601- | |
| 07042-20108 | PLUG | 1001-1600 | ||
| 14 | 07283-33442 | CLIP | 1001- | |
| 15 | 01597-01009 | NUT | 1601- | |
| 01599-01011 | NUT | 1001-1600 | ||
| 16 | 01643-31032 | WASHER | 1001- | |
| 17 | 567-61-72180 | TUBE | 1001- | |
| 18 | 07000-F3035 | O-RING | 1001- | |
| 19 | 07042-30108 | PLUG | 1601- | |
| 07042-20108 | PLUG | 1001-1600 | ||
| 20 | 01010-81050 | BOLT | 1061- | |
| 01435-01050 | BOLT | 1001-1060 | ||
| 21 | 01010-81060 | BOLT | 1061- | |
| 01435-01055 | BOLT | 1001-1060 | ||
| 21A | 01643-31032 | WASHER | 1061- | |
| 22 | 07283-33442 | CLIP | 1001- | |
| 23 | 01597-01009 | NUT | 1601- | |
| 01599-01011 | NUT | 1001-1600 | ||
| 24 | 01643-31032 | WASHER | 1001- |
