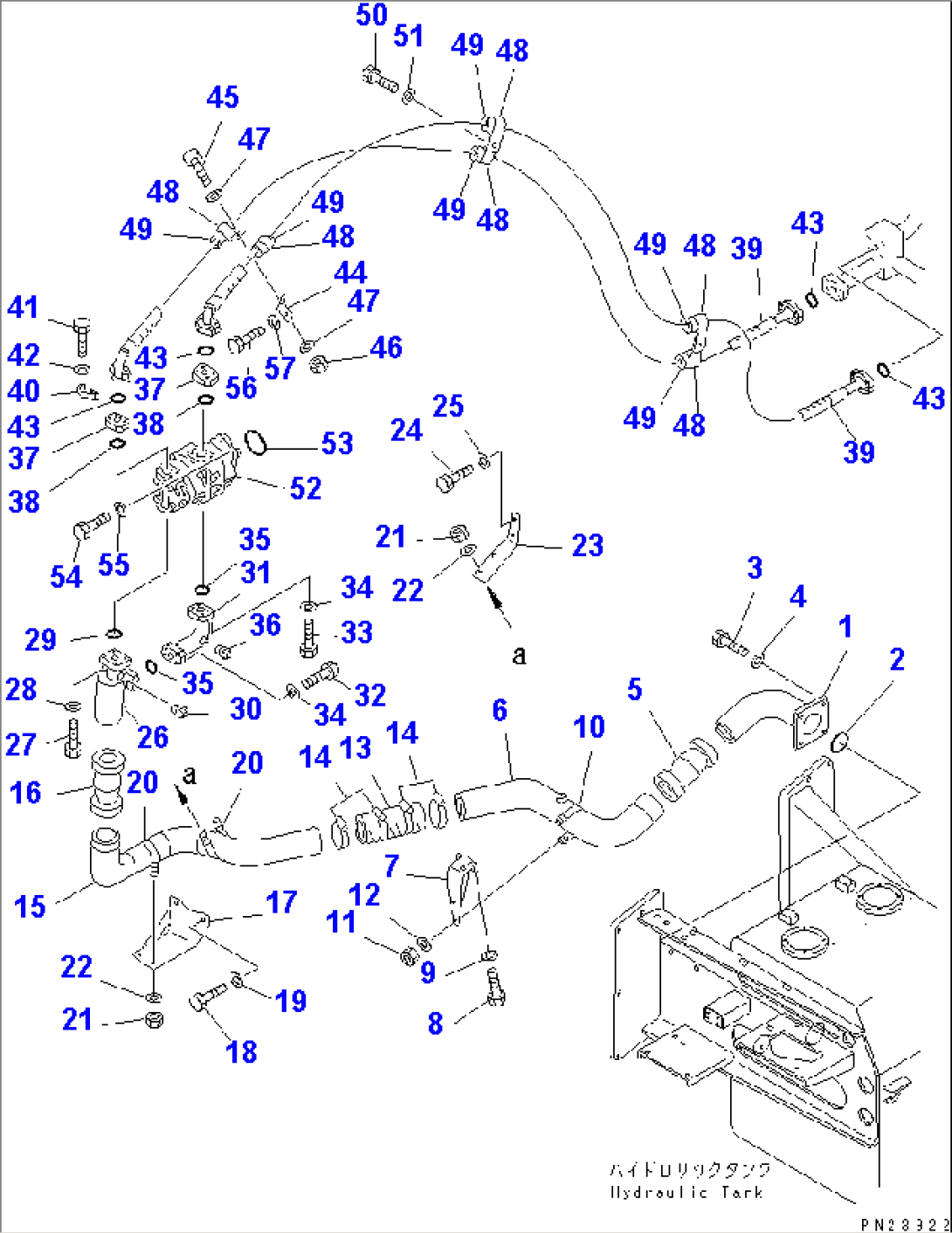

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-61-6A170 | TUBE | 1002- | |
| 1 | 561-61-61171 | TUBE | 1001-1001 | |
| 2 | 07000-22120 | O-RING | 1001- | |
| 3 | 01010-51650 | BOLT | 1001- | |
| 4 | 01643-31645 | WASHER | 1001- | |
| 5 | 07332-04000 | COUPLING | 1001- | |
| 5 | 07332-54000 | GASKET | 1001- | |
| 5 | 07332-64000 | CLAMP ASS'Y | 1001- | |
| 6 | 561-61-6A190 | TUBE | 1002- | |
| 6 | 561-61-61191 | TUBE | 1001-1001 | |
| 7 | 561-61-61260 | BRACKET | 1001- | |
| 8 | 01010-51025 | BOLT | 1001- | |
| 9 | 01643-31032 | WASHER | 1001- | |
| 10 | 07283-21185 | CLIP | 1001- | |
| 11 | 01599-01214 | NUT | 1001- | |
| 12 | 01643-31232 | WASHER | 1001- | |
| 13 | 562-03-12490 | HOSE | 1001- | |
| 14 | 562-03-21980 | CLAMP | 1001- | |
| 15 | 561-61-61211 | TUBE | 1001- | |
| 16 | 07332-04000 | COUPLING | 1001- | |
| 16 | 07332-54000 | GASKET | 1001- | |
| 16 | 07332-64000 | CLAMP ASS'Y | 1001- | |
| 17 | 561-61-61231 | BRACKET | 1001- | |
| 18 | 01010-51050 | BOLT | 1001- | |
| 19 | 01643-31032 | WASHER | 1001- | |
| 20 | 07283-21185 | CLIP | 1001- | |
| 21 | 01599-01214 | NUT | 1001- | |
| 22 | 01643-31232 | WASHER | 1001- | |
| 23 | 561-61-61221 | BRACKET | 1001- | |
| 24 | 01010-51050 | BOLT | 1001- | |
| 25 | 01643-31032 | WASHER | 1001- | |
| 26 | 561-61-61270 | TUBE | 1001- | |
| 27 | 07372-21245 | BOLT | 1001- | |
| 28 | 01643-51232 | WASHER | 1001- | |
| 29 | 07000-22075 | O-RING | 1001- | |
| 30 | 07042-20108 | PLUG | 1001- | |
| 31 | 561-61-61280 | TUBE | 1001- | |
| 32 | 07372-21250 | BOLT | 1001- | |
| 33 | 07372-21245 | BOLT | 1001- | |
| 34 | 01643-51232 | WASHER | 1001- | |
| 35 | 07000-22075 | O-RING | 1001- | |
| 36 | 07042-20108 | PLUG | 1001- | |
| 37 | 07373-11400 | SPACER | 1001- | |
| 38 | 07000-23048 | O-RING | 1001- | |
| 39 | 07298-01421 | HOSE | 1001- | |
| 40 | 07371-31465 | FLANGE | 1001- | |
| 41 | 07372-21245 | BOLT | 1001- | |
| 42 | 01643-51232 | WASHER | 1001- | |
| 43 | 07000-23048 | O-RING | 1001- | |
| 44 | 561-61-65641 | BRACKET | 1001- | |
| 45 | 01010-51035 | BOLT | 1001- | |
| 46 | 01580-11008 | NUT | 1001- | |
| 47 | 01643-31032 | WASHER | 1001- | |
| 48 | 561-61-65530 | CLIP | 1001- | |
| 49 | 561-61-65540 | INSULATOR | 1001- | |
| 50 | 01010-51235 | BOLT | 1001- | |
| 51 | 01643-31232 | WASHER | 1001- | |
| 52 | (705-52-42090) | PUMP ASS'Y | 1001- | |
| 53 | 07000-22130 | O-RING | 1001- | |
| 54 | 01010-51235 | BOLT | 1001- | |
| 55 | 01643-31232 | WASHER | 1001- | |
| 56 | 01010-51025 | BOLT | 1001- | |
| 57 | 01643-31032 | WASHER | 1001- |
