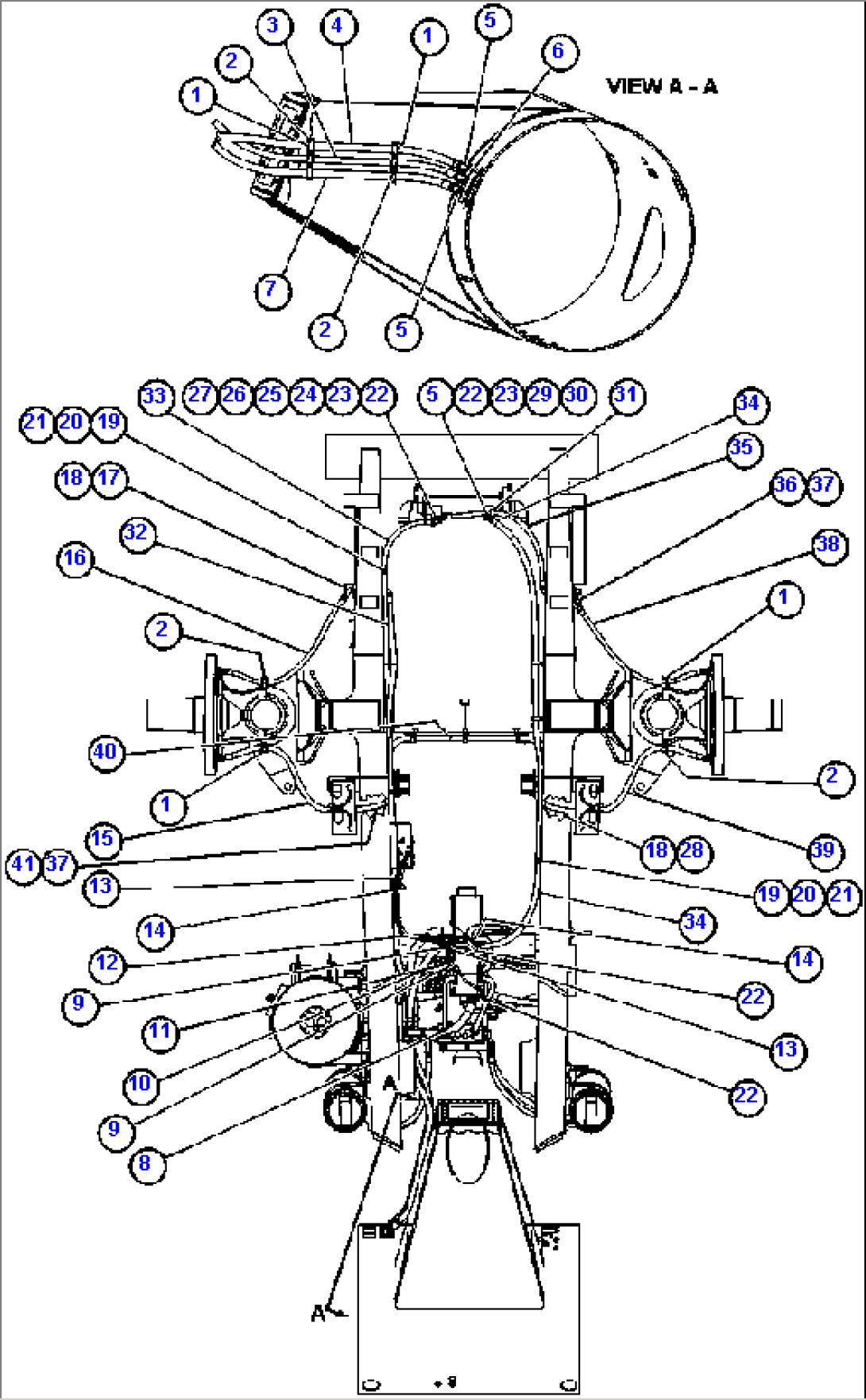

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | WA4711 | CLAMP | ||
| 2 | WA4713 | CLAMP | ||
| 3 | HA7698 | HOSE | ||
| 4 | HA7699 | HOSE | ||
| 5 | WB0551 | FITTING, ELBOW - 45 DEG | ||
| 6 | WB0549 | FITTING, ELBOW - 45 DEG | ||
| 7 | HA7700 | HOSE | ||
| 8 | HA7701 | HOSE | ||
| 9 | WA0187 | O-RING | ||
| 10 | HA7702 | HOSE | ||
| 11 | HA7703 | HOSE | ||
| 12 | HA7712 | HOSE | ||
| 13 | HA7711 | HOSE | ||
| 14 | HA6765 | HOSE | ||
| 15 | HA7406 | HOSE | ||
| 16 | HA7413 | HOSE | ||
| 17 | EG0568 | TUBE, HYDRAULIC | ||
| 18 | WA4710 | CLAMP | ||
| 19 | VC7673 | CLAMP | ||
| 20 | MM0461 | FLAT WASHER - M10 | ||
| 21 | MM0178 | NUT - M10 X 1.50 | ||
| 22 | WA0232 | O-RING | ||
| 23 | C1549 | FLAT WASHER - 1/2" | ||
| 24 | WB0601 | FITTING, STRAIGHT | ||
| 25 | EG0555 | ADAPTOR, FLANGE | ||
| 26 | C1624 | CAPSCREW - 1/2" - 13NC X 4" | ||
| 27 | WB0524 | FITTING, ELBOW - 90 DEG | ||
| 28 | EG0564 | TUBE, HYDRAULIC | ||
| 29 | EG0554 | ADAPTOR, FLANGE | ||
| 30 | C1616 | CAPSCREW - 1/2" - 13NC X 2" | ||
| 31 | VL9602 | CLAMP | ||
| 32 | HA7709 | HOSE | ||
| 33 | HA7403 | HOSE | ||
| 34 | HA7710 | HOSE | ||
| 35 | HA7404 | HOSE | ||
| 36 | EF6640 | TUBE | ||
| 37 | WA4709 | CLAMP | ||
| 38 | HA7414 | HOSE | ||
| 39 | HA7397 | HOSE | ||
| 40 | HA7708 | HOSE | ||
| 41 | EG0559 | TUBE, HYDRAULIC |
