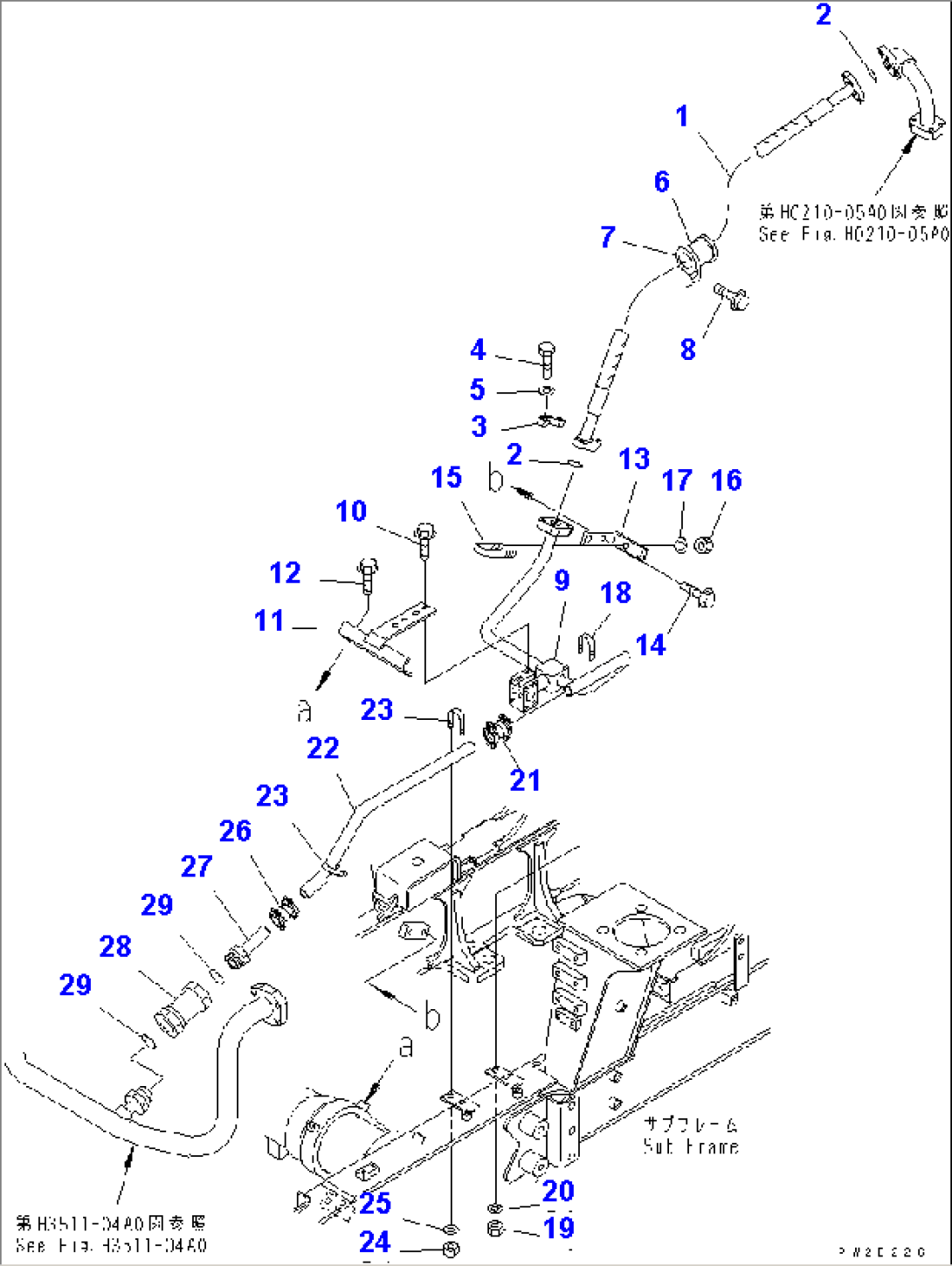

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07296-01212 | HOSE | 1001- | |
| 2 | 07000-F3038 | O-RING | 1001- | |
| 3 | 07371-31255 | FLANGE,SPLIT | 1001- | |
| 4 | 07372-21035 | BOLT | 1001- | |
| 5 | 01643-51032 | WASHER | 1001- | |
| 6 | 21T-06-11950 | CLIP | 1001- | |
| 7 | 201-06-61370 | GROMMET | 1001- | |
| 8 | 01435-01016 | BOLT | 1001- | |
| 9 | 56D-61-12241 | TUBE | 1001- | |
| 10 | 01435-01020 | BOLT | 1001- | |
| 11 | 56D-61-12271 | BRACKET | 1001- | |
| 12 | 01435-01220 | BOLT | 1001- | |
| 13 | 56D-61-12760 | BRACKET | 1001- | |
| 14 | 01435-01225 | BOLT | 1001- | |
| 15 | 07283-33442 | CLIP | 1001- | |
| 16 | 01597-01009 | NUT | 1001- | |
| 17 | 01643-31032 | WASHER | 1001- | |
| 18 | 07283-32738 | CLIP | 1001- | |
| 19 | 01597-01009 | NUT | 1001- | |
| 20 | 01643-31032 | WASHER | 1001- | |
| 21 | 07332-00600 | COUPLING ASS'Y | 1001- | |
| 07332-50600 | GASKET | 1001- | ||
| 07332-60600 | CLAMP | 1001- | ||
| 22 | 56D-61-12261 | TUBE | 1001- | |
| 23 | 07283-32738 | CLIP | 1001- | |
| 24 | 01597-01009 | NUT | 1001- | |
| 25 | 01643-31032 | WASHER | 1001- | |
| 26 | 07332-00600 | COUPLING ASS'Y | 1001- | |
| 07332-50600 | GASKET | 1001- | ||
| 07332-60600 | CLAMP | 1001- | ||
| 27 | 56B-61-12441 | TUBE | 1001- | |
| 28 | 56D-60-11551 | VALVE ASS'Y | 1001- | |
| 29 | 07002-24234 | O-RING | 1001- |
