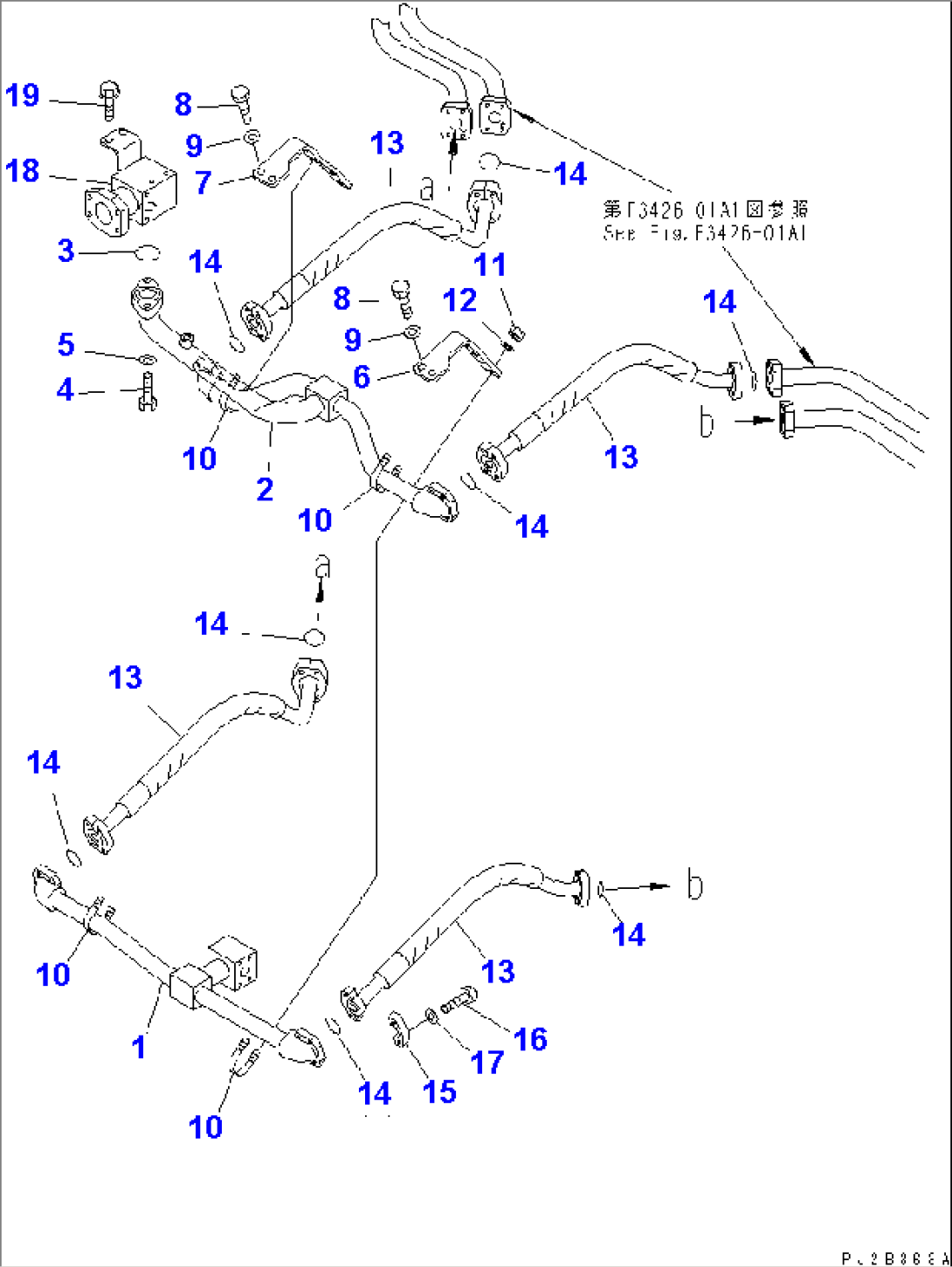

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-61-12260 | TUBE | 1001- | |
| 2 | 56C-61-12331 | TUBE | 1001- | |
| 3 | 07000-A3045 | O-RING | 1001- | |
| 4 | 01010-81245 | BOLT | 1001- | |
| 5 | 01643-31232 | WASHER | 1001- | |
| 6 | 56B-61-12911 | BRACKET | 1001- | |
| 7 | 56B-61-12990 | BRACKET | 1001- | |
| 8 | 01010-81230 | BOLT | 1001- | |
| 9 | 01643-31232 | WASHER | 1001- | |
| 10 | 07283-33442 | CLIP | 1001- | |
| 11 | 01597-01009 | NUT | 1001- | |
| 12 | 01643-31032 | WASHER | 1001- | |
| 13 | 07297-01206 | HOSE | 1001- | |
| 14 | 07000-A3038 | O-RING | 1001- | |
| 15 | 07371-31255 | FLANGE,SPLIT | 1001- | |
| 16 | 07372-21035 | BOLT | 1001- | |
| 17 | 01643-51032 | WASHER | 1001- | |
| 18 | 56B-61-12361 | TUBE | 1001- | |
| 19 | 01435-01220 | BOLT | 1001- |
