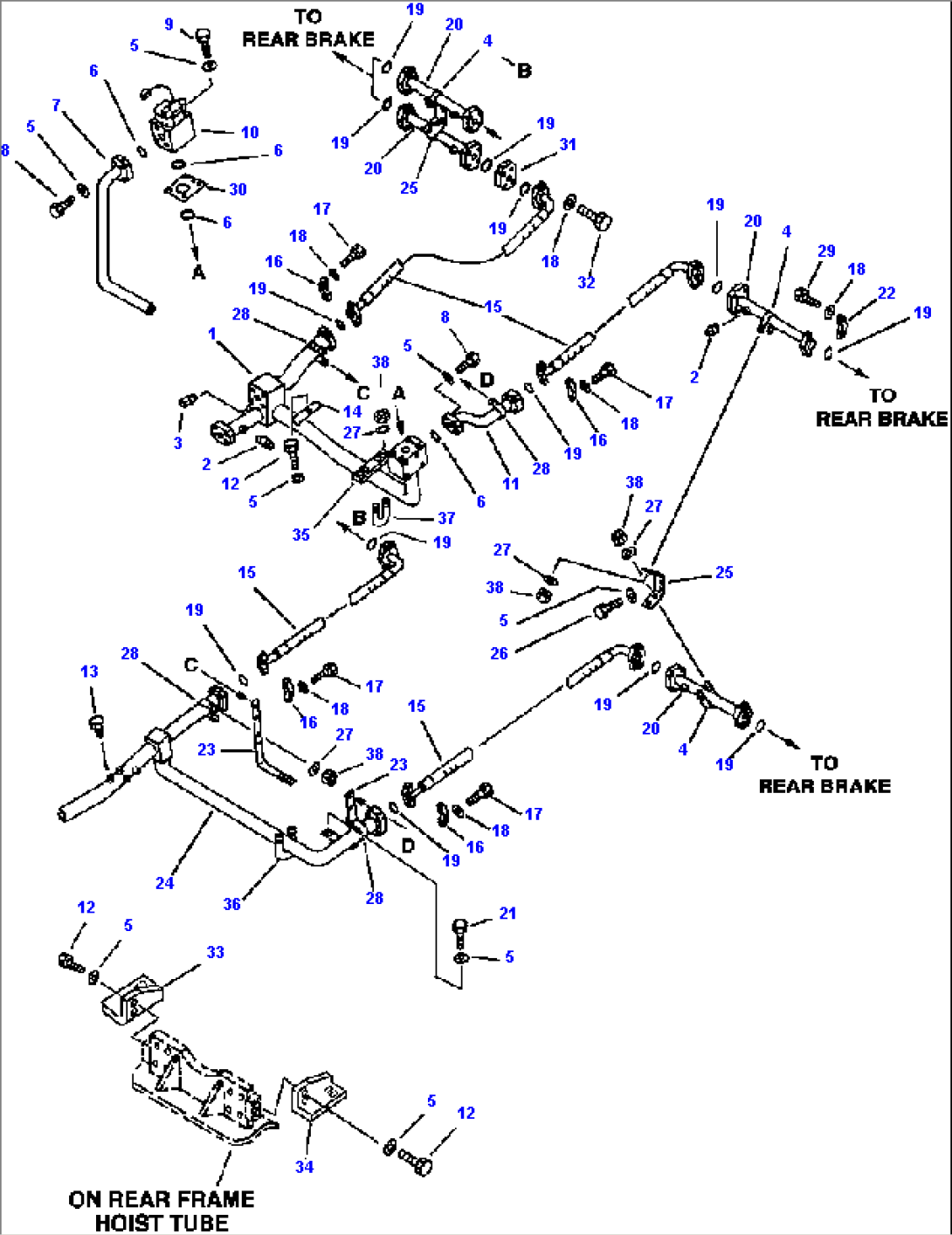

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-61-65811 | TUBE | ||
| 2 | 07042-20108 | PLUG | ||
| 3 | 07042-21222 | PLUG | ||
| 4 | 07283-24949 | CLIP | ||
| 5 | 01643-31232 | FLAT WASHER | ||
| 6 | 07000-22055 | O-RING | ||
| 7 | 561-61-65521 | TUBE | ||
| 8 | 01010-81240 | CAPSCREW | ||
| 9 | 01011-81255 | CAPSCREW | ||
| 10 | 561-60-62201 | BRAKE COOLING VALVE ASSM (SEE INDEX) | ||
| 11 | 561-61-65560 | TUBE | ||
| 12 | 01010-81230 | CAPSCREW | ||
| 13 | 287-35-11470 | PLUG | ||
| 14 | 561-61-65472 | CLAMP | ||
| 15 | 07298-01411 | HOSE | ||
| 16 | 07371-31465 | FLANGE | ||
| 17 | 07372-21240 | CAPSCREW | ||
| 18 | 01643-51232 | WASHER | ||
| 19 | 07000-23048 | O-RING | ||
| 20 | 561-61-65242 | TUBE | ||
| 21 | 01010-81235 | CAPSCREW | ||
| 22 | 07371-31465 | FLANGE | ||
| 23 | 561-61-A7140 | BRACKET | ||
| 24 | 561-61-65282 | TUBE | ||
| 25 | 561-61-65710 | PLATE | ||
| 26 | 01010-81235 | CAPSCREW | ||
| 27 | 01643-31032 | FLAT WASHER | ||
| 28 | 07283-24957 | U-BOLT | ||
| 29 | 07372-21240 | CAPSCREW | ||
| 30 | 561-60-62810 | FLANGE | ||
| 31 | 561-61-65850 | FLANGE | ||
| 32 | 07372-21250 | CAPSCREW | ||
| 33 | 561-61-A6190 | BRACKET | ||
| 34 | 561-61-A6170 | BRACKET | ||
| 35 | 561-61-A7130 | PLATE | ||
| 36 | 07283-34949 | U-BOLT | ||
| 37 | 07283-27663 | CLIP | ||
| 38 | 01597-01009 | NUT |
