| Item | Part No. | Part Name | Qty | Serial No. |

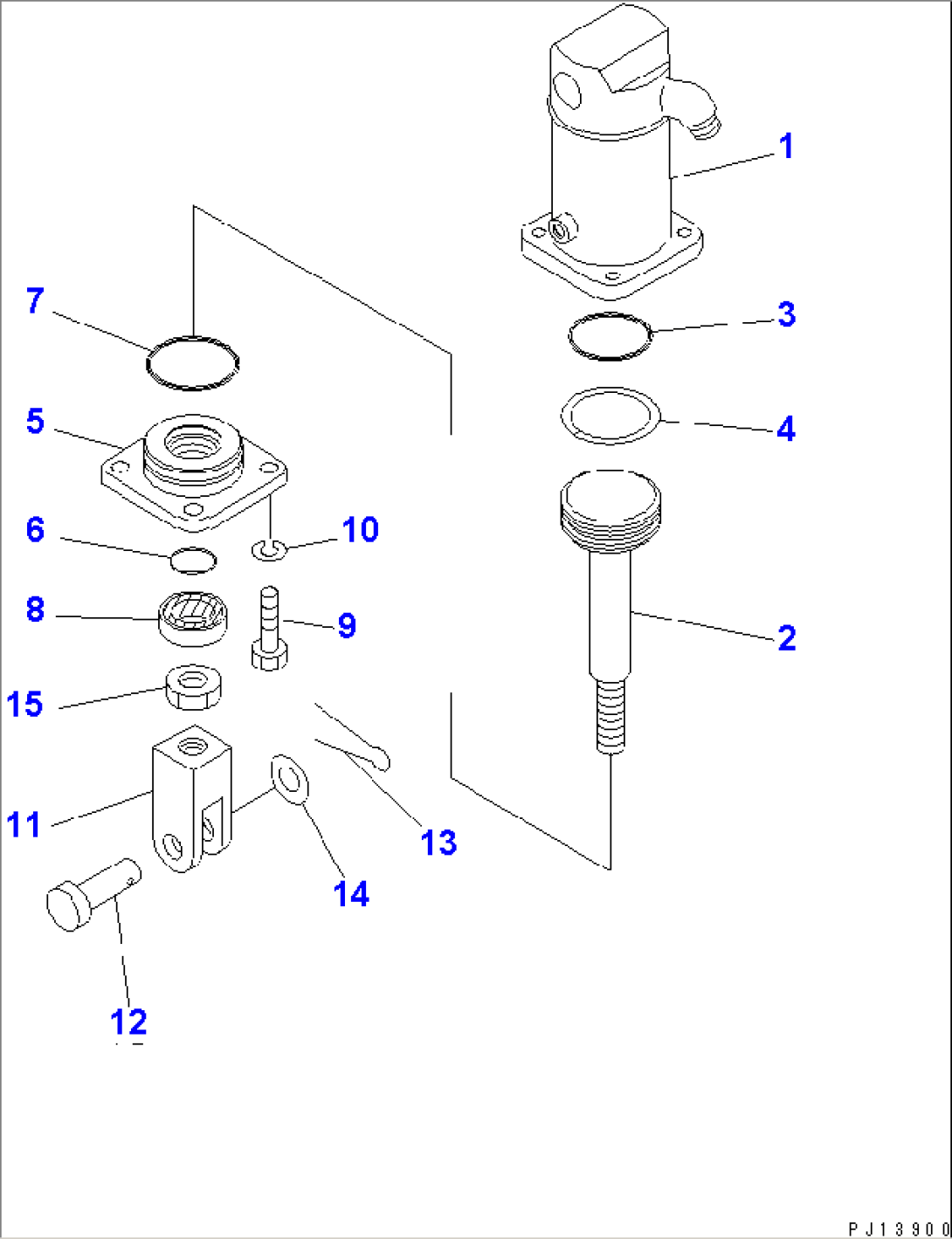

| 175-916-0211 | BRAKE CYLINDER ASS'Y | 50001- | ||
| 1 | 175-916-5110 | CYLINDER,BRAKE | 50001- | |
| 2 | 175-916-5130 | PISTON | 50001- | |
| 3 | 07000-05060 | O-RING | 50001- | |
| 4 | 07001-05060 | RING,BACK-UP | 50001- | |
| 5 | 175-916-5140 | HEAD,CYLINDER | 50001- | |
| 6 | 07000-03030 | O-RING | 50001- | |
| 7 | 07000-03065 | O-RING | 50001- | |
| 8 | 07012-00030 | SEAL,OIL | 50001- | |
| 9 | 01010-31230 | BOLT | 50001- | |
| 10 | 01602-01236 | WASHER,SPRING | 50001- | |
| 11 | 175-916-5150 | YOKE | 50001- | |
| 12 | 175-916-5160 | PIN | 50001- | |
| 13 | 04050-05030 | PIN,COTTER | 50001- | |
| 14 | 01640-02032 | WASHER | 50001- | |
| 15 | 01582-02016 | NUT | 50001- |
